4. INSTALLING THE VENTILATION KIT e904k'97 / e904M
Proceed as follows for installation:
1. Place the stove onto one of its sides taking care that the
internal baffles and the brazier do not fall out of their
housing.
2. Remove the PVC guard from the thread of the foot, screw
the locknut on the foot and position the plate.
3. Screw the foot on the monobloc unit and fasten the fan
plate.
4. For models e904C - e904k '97 - e904M the kit is
furnished with a special probe pipe (Pic. 4) which is
assembled to the stove as follows:
- unscrew the screw situated in the back-piece of the
stove;
- position the probe pipe matching the hole with the
screw hole;
- first pass the probe through the ø8 hole situated in the
rear part of the motor support and then inside the pipe
letting it pass for nearly 10 cm (Pic. 5);
-again screw on the screw previously removed thus
fastening the pipe to the back-piece of the stove.
5. Bring the monobloc unit to its normal position.
6. Eventually, the two flexible aluminum conduits can be
passed through the rear part of the stove to conduct hot-
air to rear areas. To guarantee an air temperature
sufficiently hot, the conduit is covered with insulating
sheathing and the duct sections must not exceed a meter
in length (see instructions attached to the stove).
Upon request, PIAZZETTA S.p.A. will provide the flexible
Ø 75 conduit, air outlets, "Y-unions" and conduit tightening
bands for fastening.
7. Insert the panel plug in the slot located behind the rear
panel of the stove with the central pin facing upwards (Pic.1).
8. If you cannot find the seat for the panel plug (IEC) on the rear
panel, insert the IEC pin on the predisposed bracket in the fan
support (Pic.6).
9. Make the electrical connection to the panel plug inserting the
grounding clip (yellow-green wire) on the upper central pin of
the three present (Pic.2).
10. Next connect the power cord provided to the panel plug (Pic.2)
and insert it in the electrical outlet.

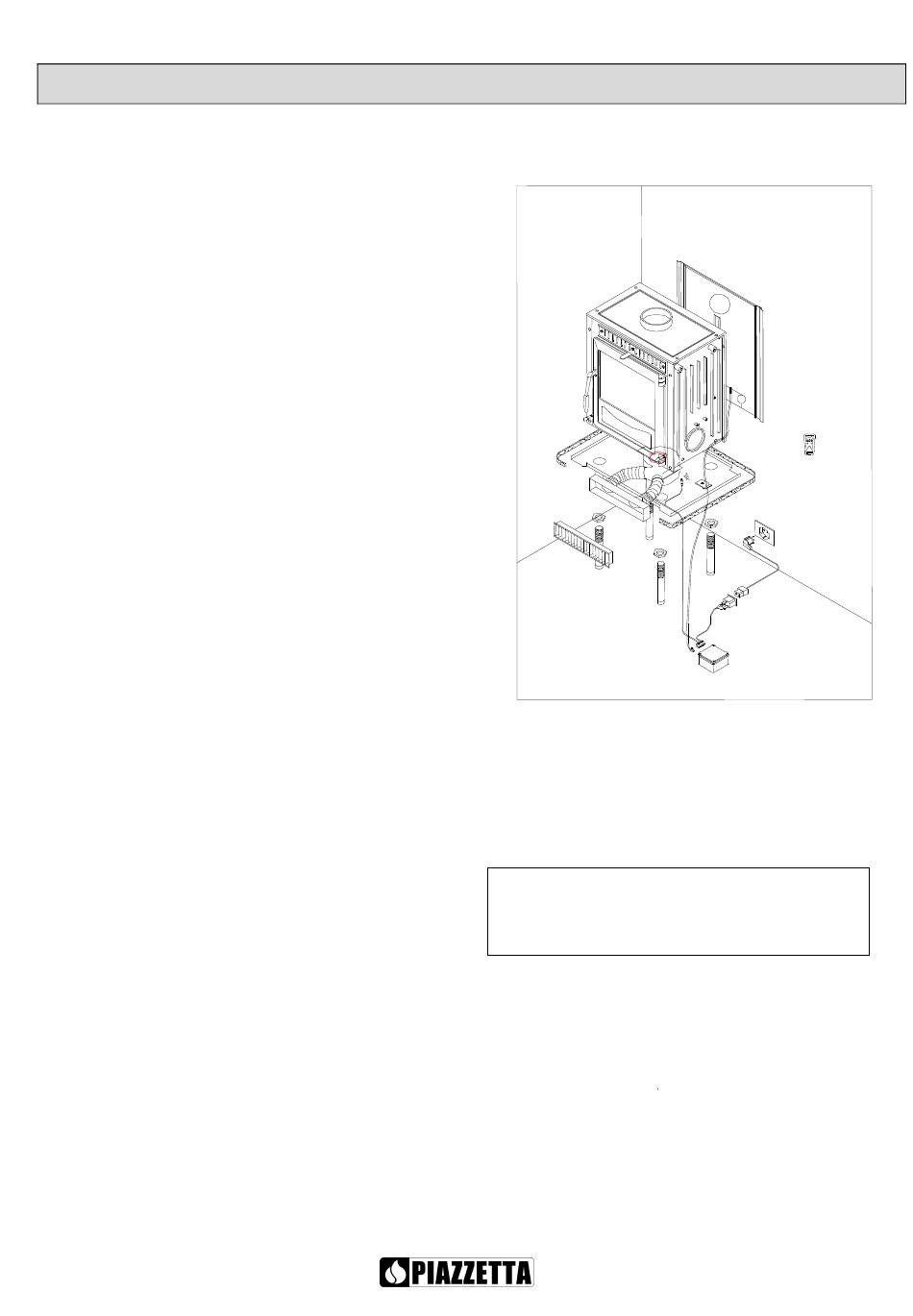

KEY
1. FAN
2. RADIO CONTROL BOX
3. RADIO CONTROL UNIT
4. PT PROBE
5. PT PROBE FASTENING BRACKET
6. FAN SUPPORT PLATE
7. FLEXIBLE CONDUIT D. 75
42
6
12 1
6
7
8 3
11
N.B.: Keep the remote control box far from heat
sources such as flexible conduit or metal parts
that could become hot positioning it beneath the
product
8. HOT-AIR EXHAUST OUTLET
9. BOX NUT
10. I.E.C. PLUG
11. CLOSABLE HOT-AIR EXHAUST GRID
12. SELF-STICK FIBER GLASS TAPE
