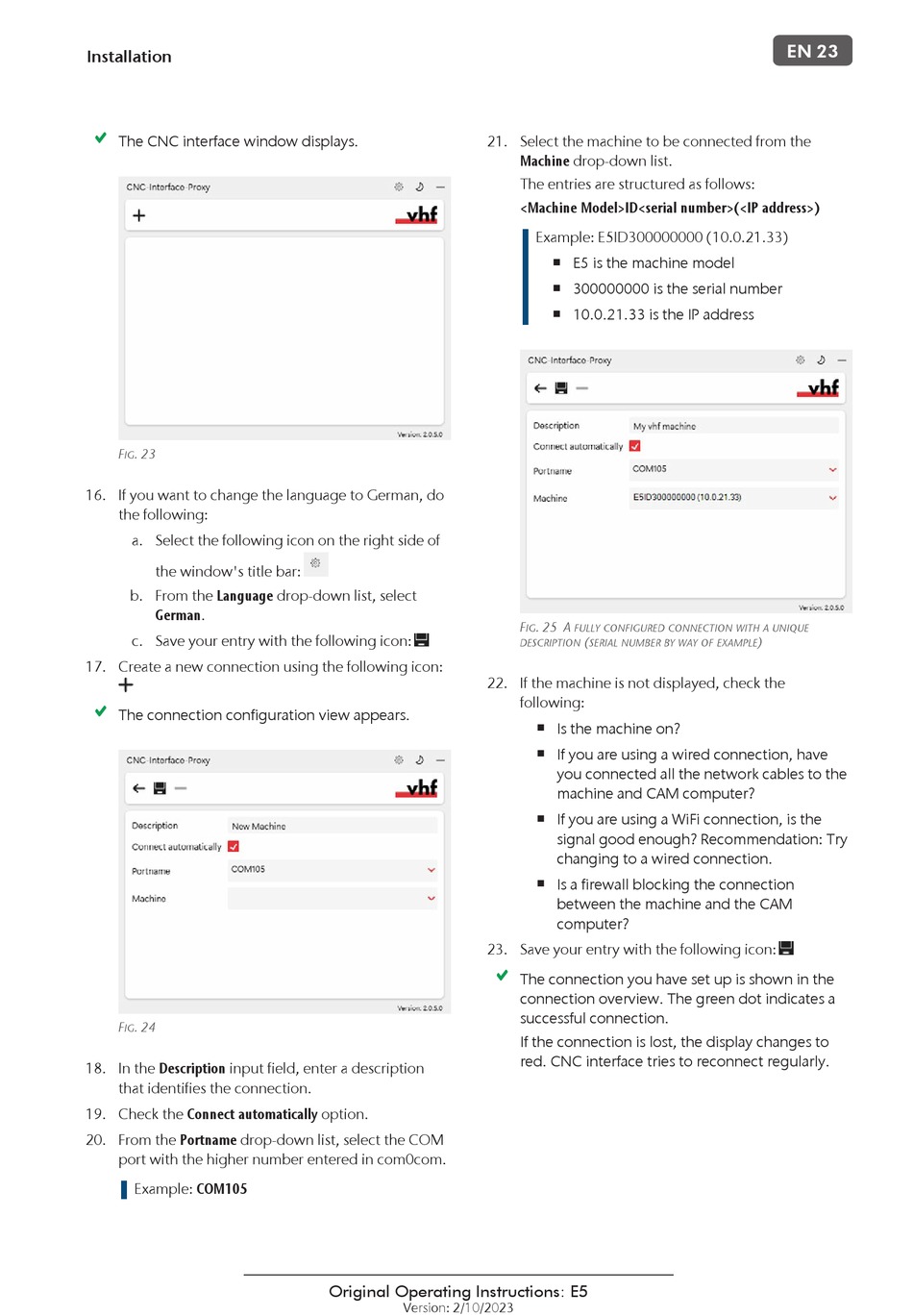

Installation
The CNC interface window displays.
F . 23
IG
16. If you want to change the language to German, do
the following:
a. Select the following icon on the right side of
the window's title bar:
b. From the Language drop-down list, select
German.
c. Save your entry with the following icon:
17. Create a new connection using the following icon:
The connection configuration view appears.
F . 24
IG
18. In the Description input field, enter a description
that identifies the connection.
19. Check the Connect automatically option.
20. From the Portname drop-down list, select the COM
port with the higher number entered in com0com.
Example: COM105
21. Select the machine to be connected from the
22. If the machine is not displayed, check the
23. Save your entry with the following icon:
Original Operating Instructions: E5
Version: 2/10/2023
Machine drop-down list.
The entries are structured as follows:
<Machine Model>ID<serial number>(<IP address>)
Example: E5ID300000000 (10.0.21.33)
E5 is the machine model
n
300000000 is the serial number
n
10.0.21.33 is the IP address
n
F . 25 A
IG FULLY CONFIGURED CONNECTION WITH A UNIQUE
(
DESCRIPTION SERIAL NUMBER BY WAY OF EXAMPLE
following:
Is the machine on?
n
If you are using a wired connection, have
n
you connected all the network cables to the
machine and CAM computer?
If you are using a WiFi connection, is the
n
signal good enough? Recommendation: Try
changing to a wired connection.
Is a firewall blocking the connection
n
between the machine and the CAM
computer?
The connection you have set up is shown in the
connection overview. The green dot indicates a
successful connection.
If the connection is lost, the display changes to
red. CNC interface tries to reconnect regularly.
EN 23
)
