Operating the machine

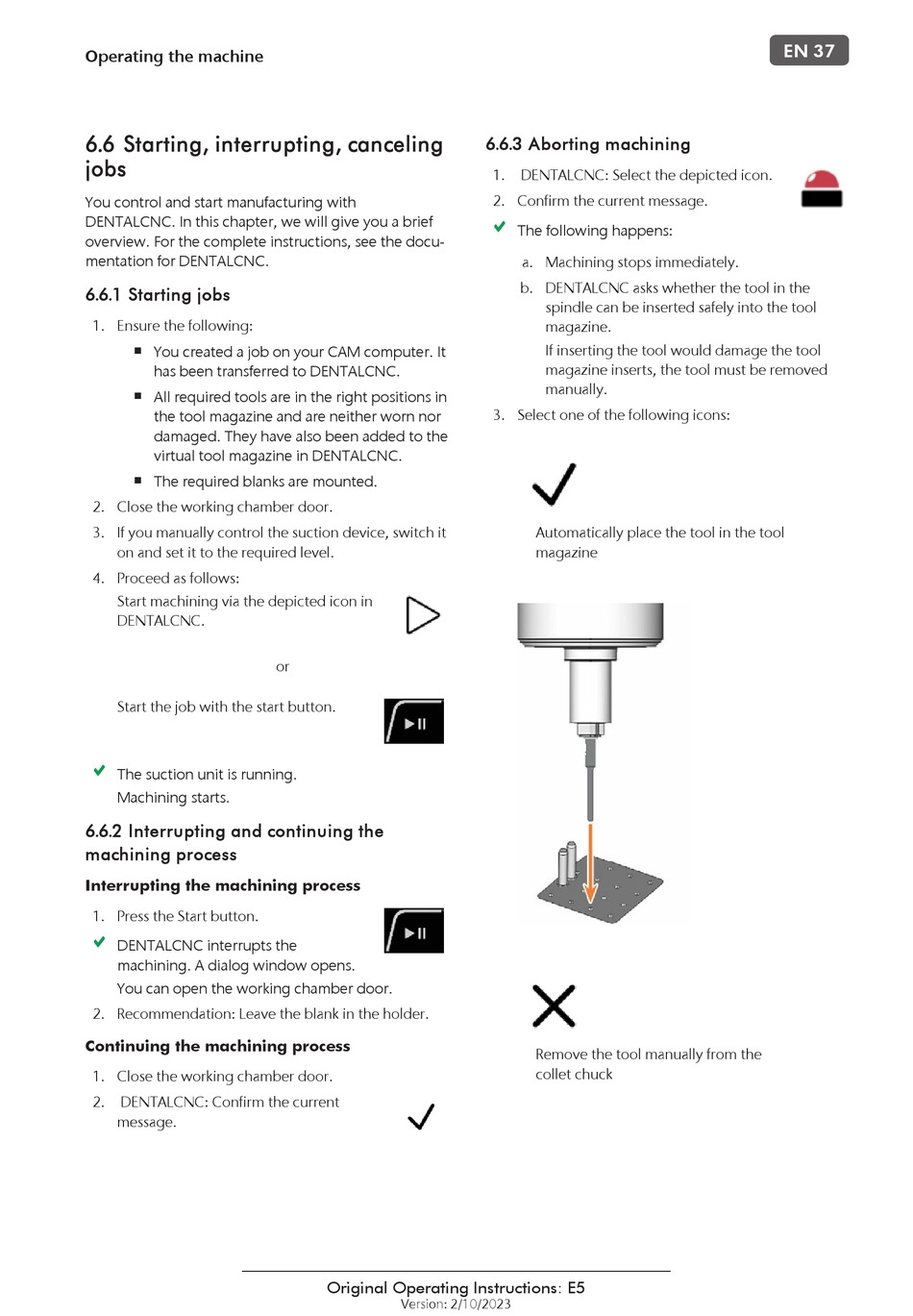

6.6 Starting, interrupting, canceling
jobs
You control and start manufacturing with
DENTALCNC. In this chapter, we will give you a brief
overview. For the complete instructions, see the docu-
mentation for DENTALCNC.

6.6.1 Starting jobs

1. Ensure the following:
You created a job on your CAM computer. It
n
has been transferred to DENTALCNC.
All required tools are in the right positions in
n
the tool magazine and are neither worn nor
damaged. They have also been added to the
virtual tool magazine in DENTALCNC.
The required blanks are mounted.
n
2. Close the working chamber door.
3. If you manually control the suction device, switch it
on and set it to the required level.
4. Proceed as follows:
Start machining via the depicted icon in
DENTALCNC.
Start the job with the start button.
The suction unit is running.
Machining starts.
6.6.2 Interrupting and continuing the
machining process
Interrupting the machining process
1. Press the Start button.
DENTALCNC interrupts the
machining. A dialog window opens.
You can open the working chamber door.
2. Recommendation: Leave the blank in the holder.
Continuing the machining process
1. Close the working chamber door.
2. DENTALCNC: Confirm the current
message.
or
Original Operating Instructions: E5
Version: 2/10/2023

6.6.3 Aborting machining

1. DENTALCNC: Select the depicted icon.
2. Confirm the current message.
The following happens:
a. Machining stops immediately.
b. DENTALCNC asks whether the tool in the
spindle can be inserted safely into the tool
magazine.
If inserting the tool would damage the tool
magazine inserts, the tool must be removed
manually.
3. Select one of the following icons:
Automatically place the tool in the tool
magazine
Remove the tool manually from the
collet chuck
EN 37
