EN 78

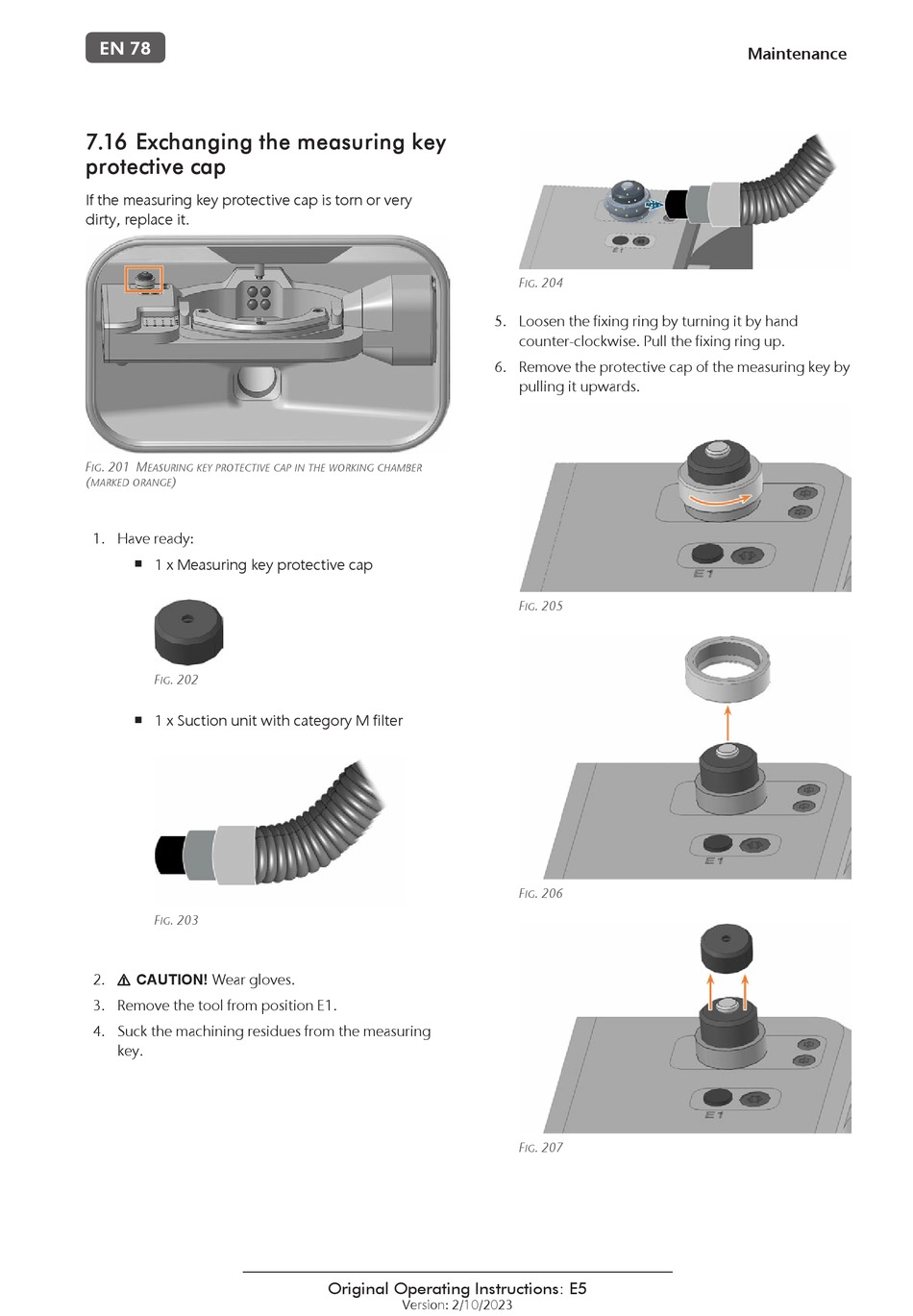

7.16 Exchanging the measuring key
protective cap
If the measuring key protective cap is torn or very
dirty, replace it.
F
. 201 M
IG
EASURING KEY PROTECTIVE CAP IN THE WORKING CHAMBER
(
)
MARKED ORANGE
1. Have ready:
1 x Measuring key protective cap
n
F
. 202
IG
1  x Suction unit with category M filter
n
F
. 203
IG
2. ⚠ CAUTION! Wear gloves.
3. Remove the tool from position E1.
4. Suck the machining residues from the measuring
key.
5. Loosen the fixing ring by turning it by hand
6. Remove the protective cap of the measuring key by
Original Operating Instructions:  E5
Version: 2/10/2023
F
. 204
IG
counter-clockwise. Pull the fixing ring up.
pulling it upwards.
F
. 205
IG
F
. 206
IG
F
. 207
IG
Maintenance
