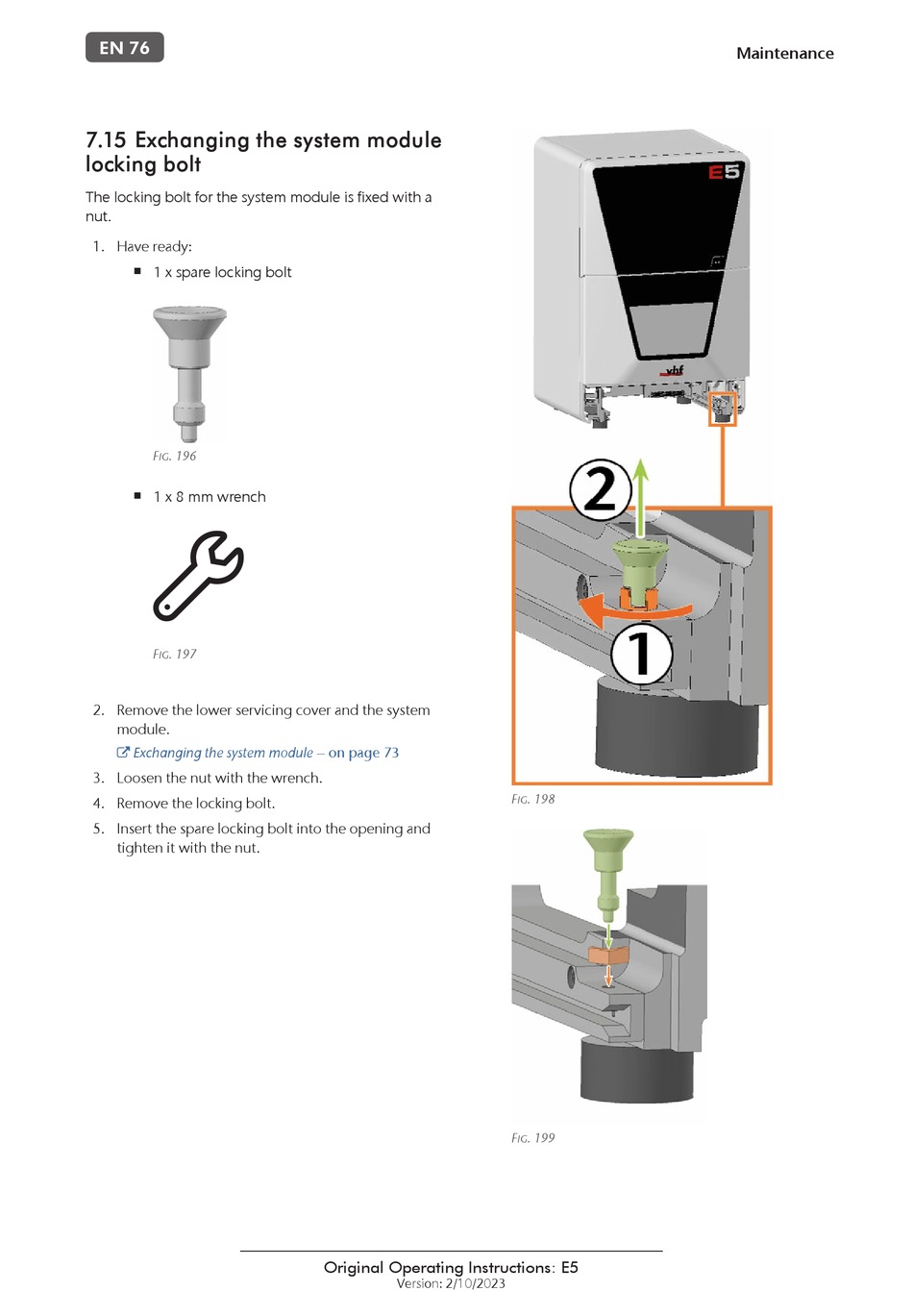

7.15 Exchanging the system module
locking bolt
The locking bolt for the system module is fixed with a
nut.
1. Have ready:
1 x spare locking bolt
n
F . 196
IG
1 x 8 mm wrench
n
F . 197
IG
2. Remove the lower servicing cover and the system
module.
Exchanging the system module – on page 73

3. Loosen the nut with the wrench.
4. Remove the locking bolt.
5. Insert the spare locking bolt into the opening and
tighten it with the nut.
Original Operating Instructions: E5
Version: 2/10/2023
F . 198
IG
F . 199
IG
