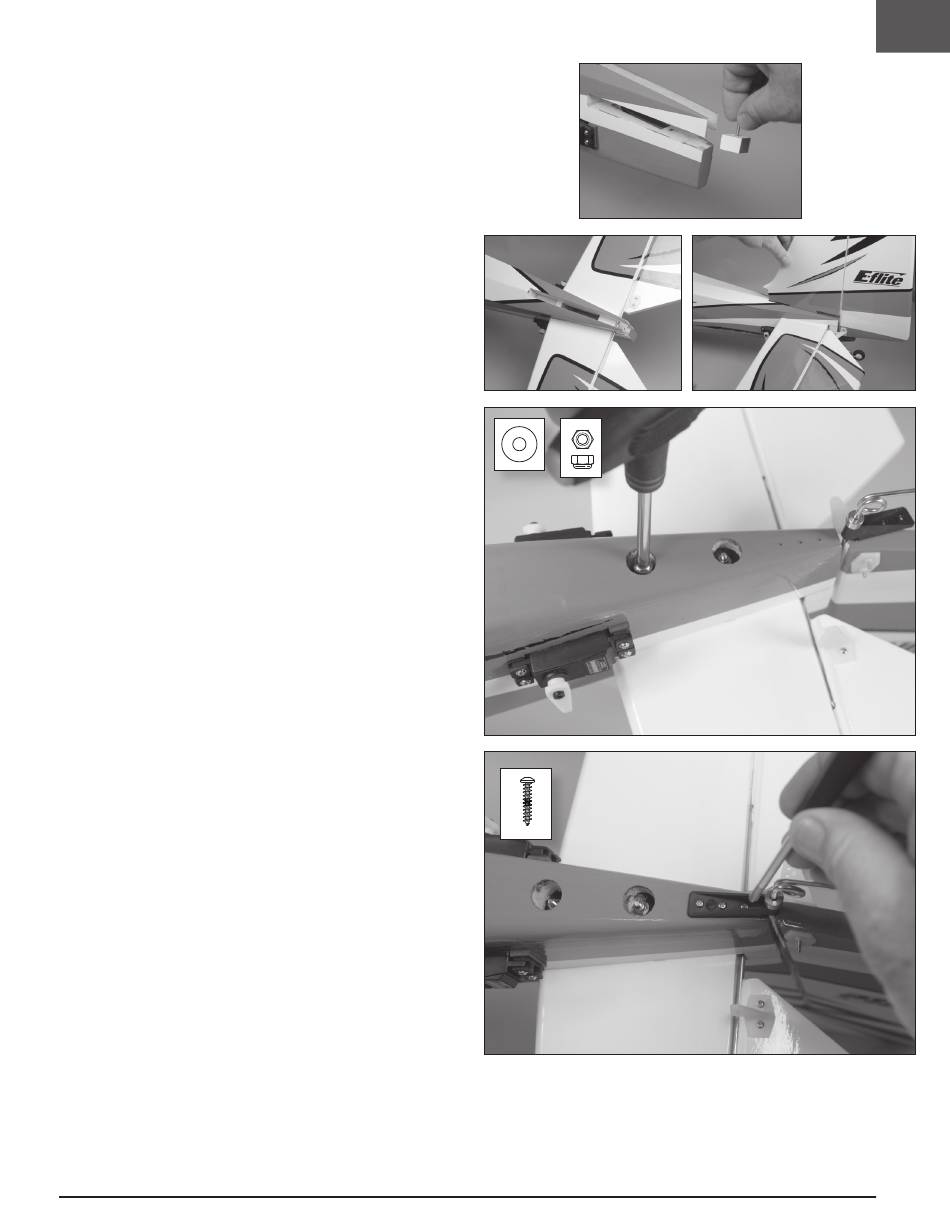

Horizontal and Vertical Stabilizer Installation ARF/BNF Basic
1. Remove the screw holding the filler in position using a
Phillips screwdriver (PH#2).
2. Install the horizontal stabilizer, with the control horn facing down.
3. Replace the filler piece in the fuselage.
4. Install the vertical stabilizer from the top of the fuselage, leaving the M3
mounting studs protruding through the bottom of the fuselage.
5. Place a 3mm washer on each stud, and secure in place with M3 nylon lock
nuts using a 5.5mm nut driver. Do not overtighten these nuts and compress the
wood. Check periodically to make sure they remain tight.
6. Secure the tail wheel bracket using three M2.5 x 10mm sheet metal screws.
