EN

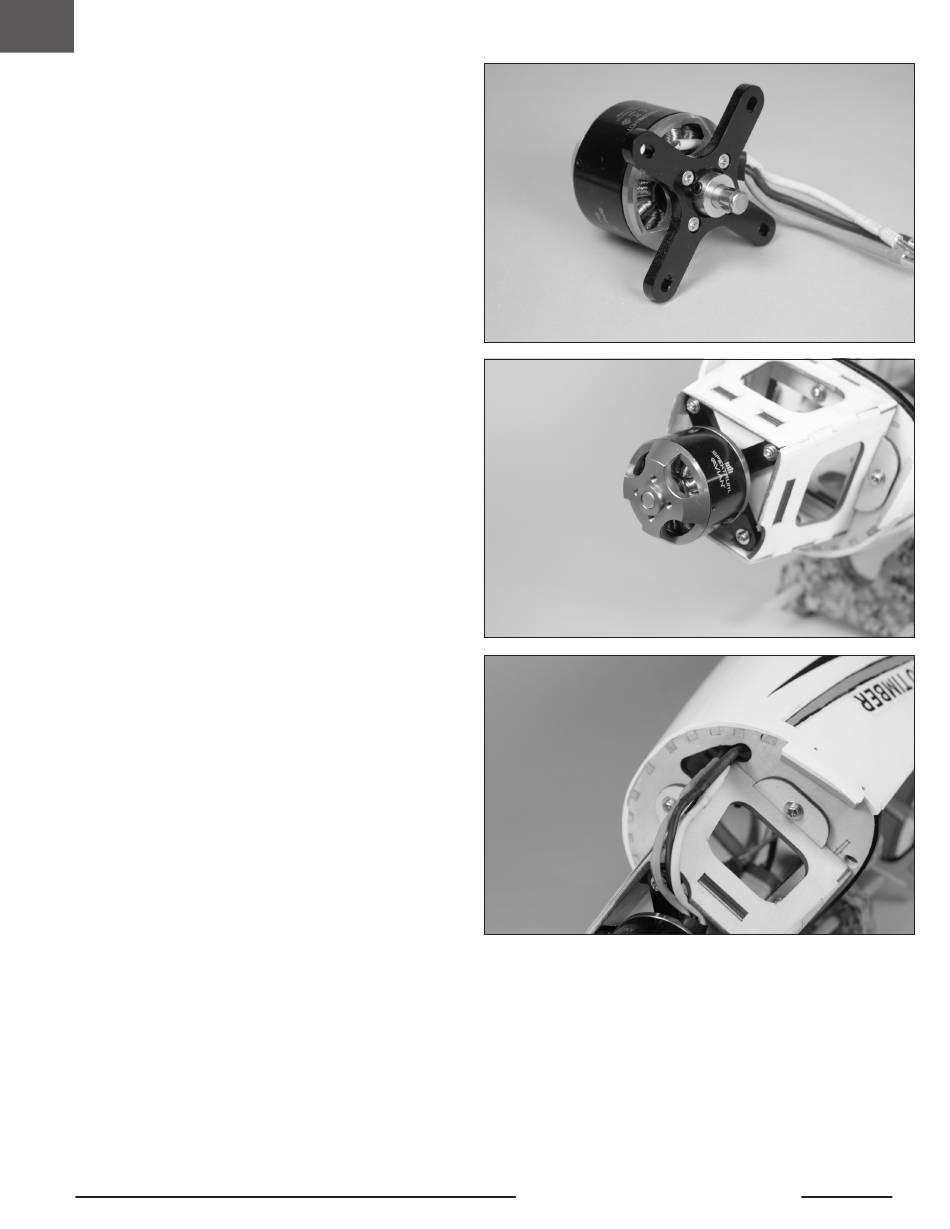

5. Install the X mount to the back of the motor with four M3 x 3mm screws using
a Phillips screwdriver (PH#1). Place a drop of threadlock on each screw before
installation.
6. Mount the motor and X-mount to the firewall with four M3 x 10mm pan head
machine screws with 3mm lock washers using a Phillips screwdriver (PH#1),
with the motor wires extending through the hole in the firewall.
IMPORTANT: If the screws do not thread easily, do not use excessive pressure.
7. Connect the leads from the speed control to the motor.
After installing your electronics, verify the motor is rotating the correct direction. It
should rotate clockwise (viewed in the direction of flight).
If you need to reverse the motor direction, disconnect the battery first.
Reverse the motor direction by swapping any two of the three motor wires.
Secure the motor wires so they are out of the way, and not rubbing on the motor.
