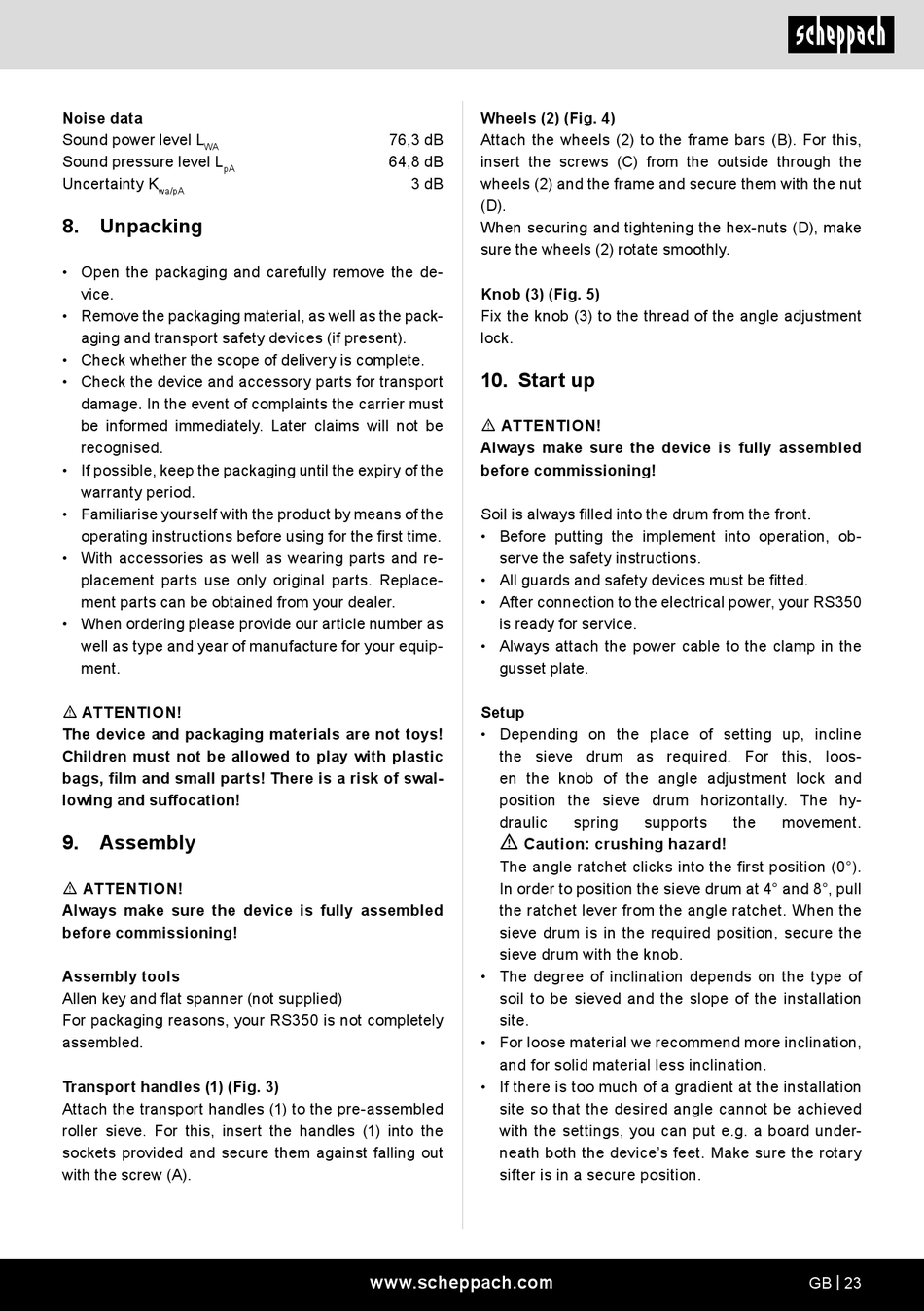

Scheppach RS 350 Original Bedienungsanleitung Seite 23

Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
8. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
9. Assembly
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
Assembly tools
Allen key and flat spanner (not supplied)
For packaging reasons, your RS350 is not completely
assembled.
Transport handles (1) (Fig. 3)
Attach the transport handles (1) to the pre-assembled
roller sieve. For this, insert the handles (1) into the
sockets provided and secure them against falling out
with the screw (A).
Wheels (2) (Fig. 4)
76,3 dB Attach the wheels (2) to the frame bars (B). For this,
64,8 dB insert the screws (C) from the outside through the
3 dB wheels (2) and the frame and secure them with the nut
(D).
When securing and tightening the hex-nuts (D), make
sure the wheels (2) rotate smoothly.
Knob (3) (Fig. 5)
Fix the knob (3) to the thread of the angle adjustment
lock.
10. Start up
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
Soil is always filled into the drum from the front.
• Before putting the implement into operation, ob-
serve the safety instructions.
• All guards and safety devices must be fitted.
• After connection to the electrical power, your RS350
is ready for service.
• Always attach the power cable to the clamp in the
gusset plate.
Setup
• Depending on the place of setting up, incline
the sieve drum as required. For this, loos-
en the knob of the angle adjustment lock and
position the sieve drum horizontally. The hy-
draulic
m
Caution: crushing hazard!
The angle ratchet clicks into the first position (0°).
In order to position the sieve drum at 4° and 8°, pull
the ratchet lever from the angle ratchet. When the
sieve drum is in the required position, secure the
sieve drum with the knob.
• The degree of inclination depends on the type of
soil to be sieved and the slope of the installation
site.
• For loose material we recommend more inclination,
and for solid material less inclination.
• If there is too much of a gradient at the installation
site so that the desired angle cannot be achieved
with the settings, you can put e.g. a board under-
neath both the device's feet. Make sure the rotary
sifter is in a secure position.
www.scheppach.com
spring supports the movement.
