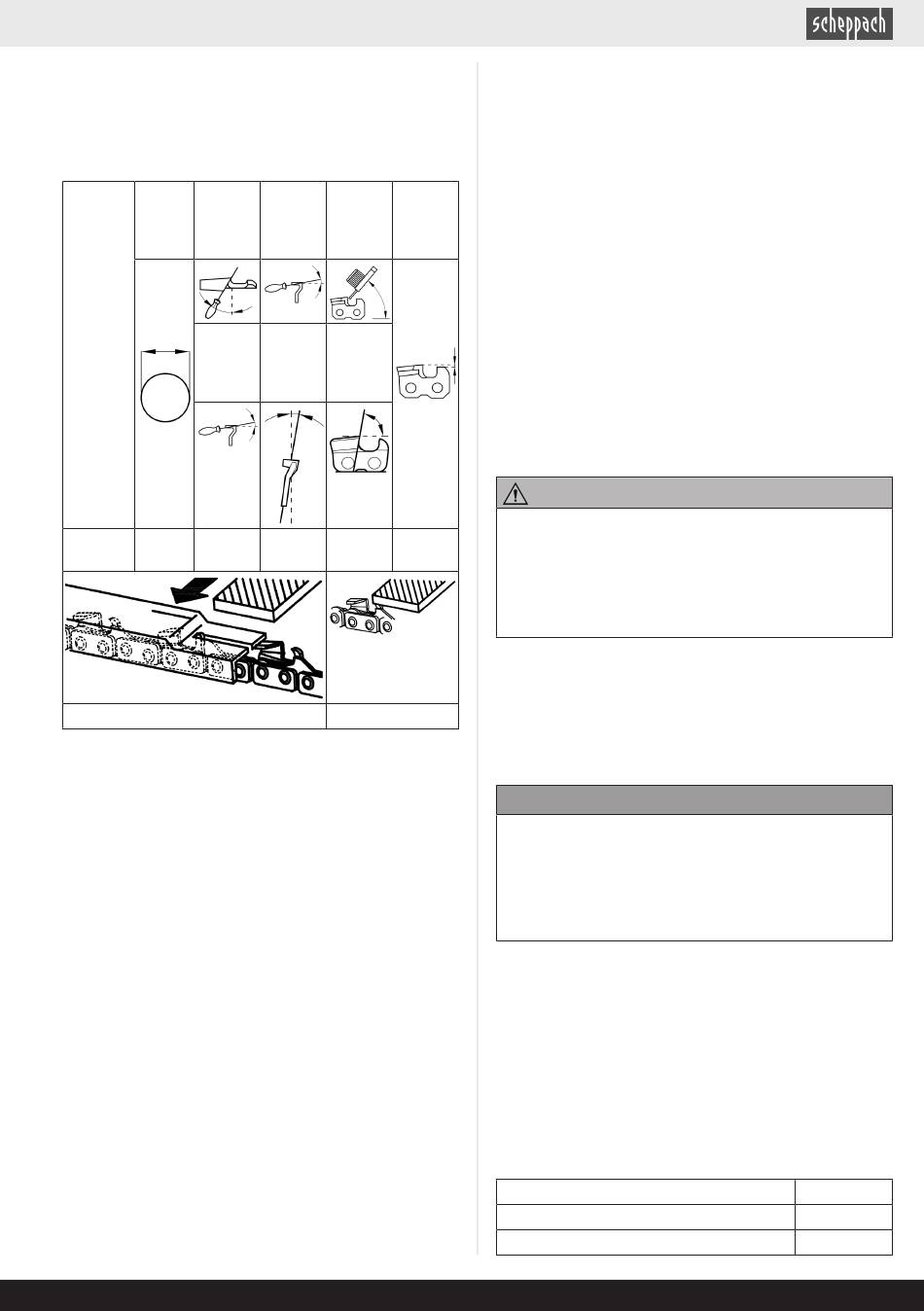

13.2.5.1 Instructions for sharpening the chainsaw
Only use files specifically for saw chains!
Other files have the wrong shape and the wrong edge.
Select the diameter of the file according to your chain
pitch. Be sure to also note the following angles when
sharpening the cutting links.
File di- Top an-
ameter gle
Clamp-
ing rota-
Saw
tion an-
chain
gle
type
21PBX approx. 30°
4.8 mm
Depth stop
Furthermore, the angle must be maintained for all cutting
links.
If the angles are uneven, the saw chain (15) will run errat-
ically, wear out quickly and break prematurely.
Since these requirements can only be met with sufficient
and regular practice:
• Use a file holder.
• A file holder must be used when sharpening the saw
chain (15) by hand. The correct filing angles are
marked on it.
1. Hold the file horizontally (at the correct angle to the
chainsaw guide bar (14)) and file in accordance with
the angle marking on the file holder. Support the file
holder on the top plate and the depth limiter.
2. Always file the cutting link from the inside out.
3. The file only sharpens as it moves forward. Lift the file
off as you move backwards.
4. Do not touch the drive links or fastening links with the
file.
5. Turn the file regularly to avoid wear on one side.
6. Use a piece of hard wood to remove the burr from cut-
ting edges.
Bottom Top tilt Stan-
angle angle dard
(55°) depth
gauge
Clamp- Side an-
ing tilt gle
angle
10° 85° 0.64
mm
File
www.scheppach.com
All cutting links must have the same length, otherwise
they will also be of different heights. This causes the saw
chain (15) to run erratically and increases the danger of
breaking.
14 Storage and transport
Store the product and its accessories in a dark, dry and
frost-free place that is inaccessible to children.
The optimum storage temperature is between 5°C and
30˚C.
Store the product in its original packaging.
Cover the product to protect it from dust or moisture.
Store the operating manual with the product.
14.1 Preparation for storage
1. Remove the battery.
2. Attach all protective covers.
3. Empty the product completely.
4. Clean and check the product for damage.
14.2 Transport
WARNING
Danger of injury!
Remove the battery from the power tool before carrying
out any work on the power tool (e.g. maintenance, tool
change, etc.) and when transporting and storing it.
There is a risk of injury if the on/off switch is operated
unintentionally.
• The product may only be transported on the handle
provided for this purpose.
15 Repair & ordering spare parts
With this product, it is necessary to note that the following
parts are subject to natural or usage-related wear, or that
the following parts are required as consumables.
ATTENTION
According to the German Product Liability Act, no liabili-
ty is accepted for damage caused by improper repairs
or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialists. The same applies to
accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the front
page.
15.1 Ordering spare parts
Please provide the following information when ordering
spare parts:
• Model designation
• Item number
• Type plate data
Spare parts / accessories
Battery pack SBP2.0 - Article no.:
Battery pack SBP4.0 - Article no.:
Battery charger SBC2.4A - Article no.:
7909201708
7909201709
7909201710
