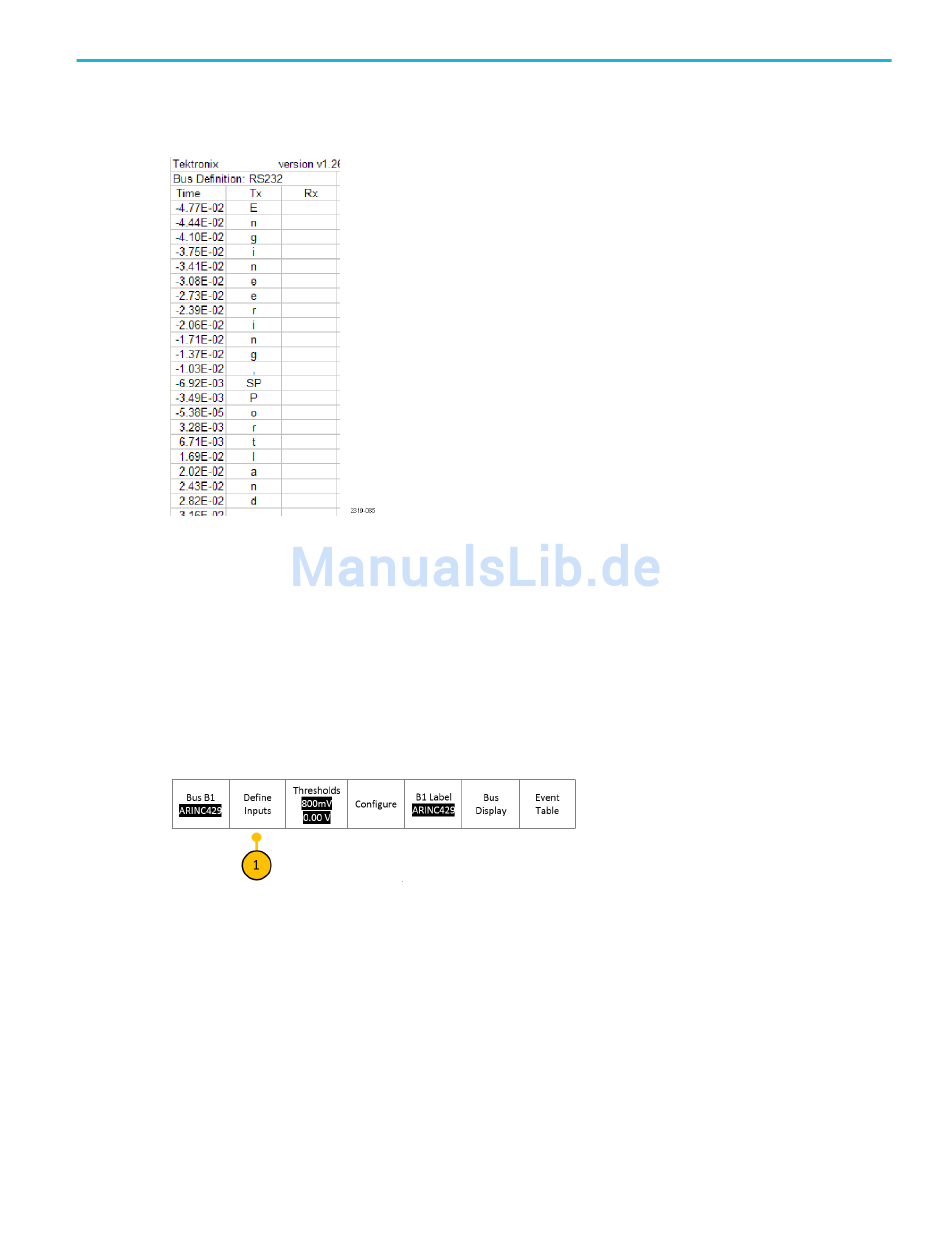

This example of an Event Table is from an RS-232 bus.
RS-232 event tables display one line for each 7- or 8-bit byte when Packets are set to Off. RS-232 event tables display one
line for each packet when Packets are set to On.
Other buses display one word, frame, or packet per row, depending on the bus type.
9.
Push B1, B2, or B3 and turn Multipurpose a to move the bus display up or down on the screen.
ARINC429 Bus
To acquire data from an ARINC429 bus, you need to setup these items:
1.
If you selected ARINC429, push Define Inputs and the appropriate side menu choices.
2.
Turn Multipurpose a to select the waveform under analysis as the bus input.
Benutzerhandbuch für die Oszilloskop-Baureihe MDO4000C
Signal erfassen
67
