Analyse von Signal- oder Strahldaten

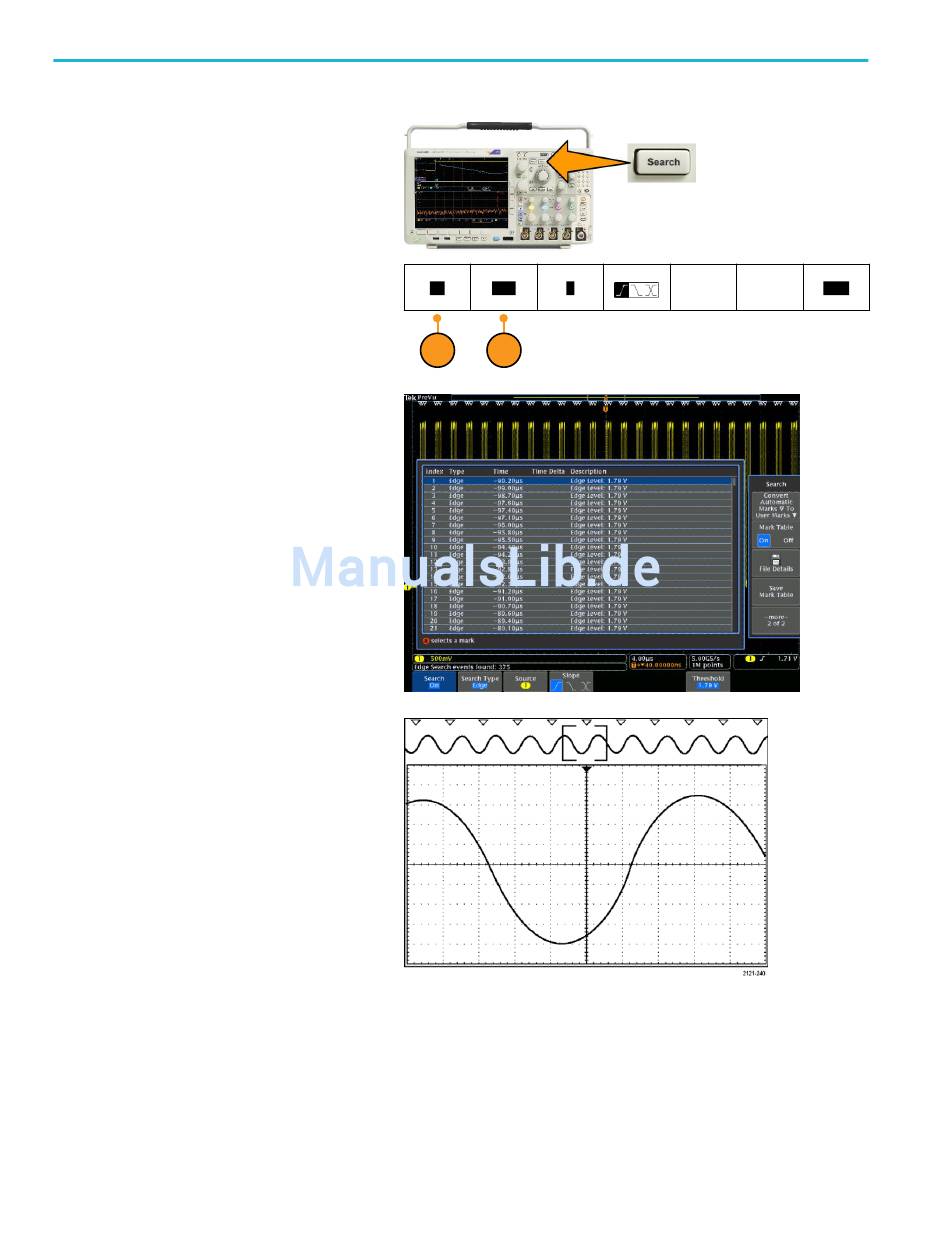

1.
Push Search.
2.
Select the search type desired from the
lower menu.
The search menu is similar to the trigger
menu.
3.
From the side menu, turn on the search.
If desired, go to the second page of the
side menu and turn on the search mark
table. The search mark table shows a
time-stamped listing of each event.
4.
On the screen, hollow triangles show the
location of automatic marks and solid
triangles show the custom (user-defined)
locations. These appear on both normal
and zoomed waveform views.
5.
You can quickly investigate your
waveform by moving from search mark to
search mark with the next ( →) and
previous (←) arrow buttons. No other
adjustments are needed.
150
Search
Search Type
Source
Off
Edge
1
3
2
Benutzerhandbuch für die Oszilloskop-Baureihe MDO4000C
