Snow Line 560, 620, 620E
11
18
9
10

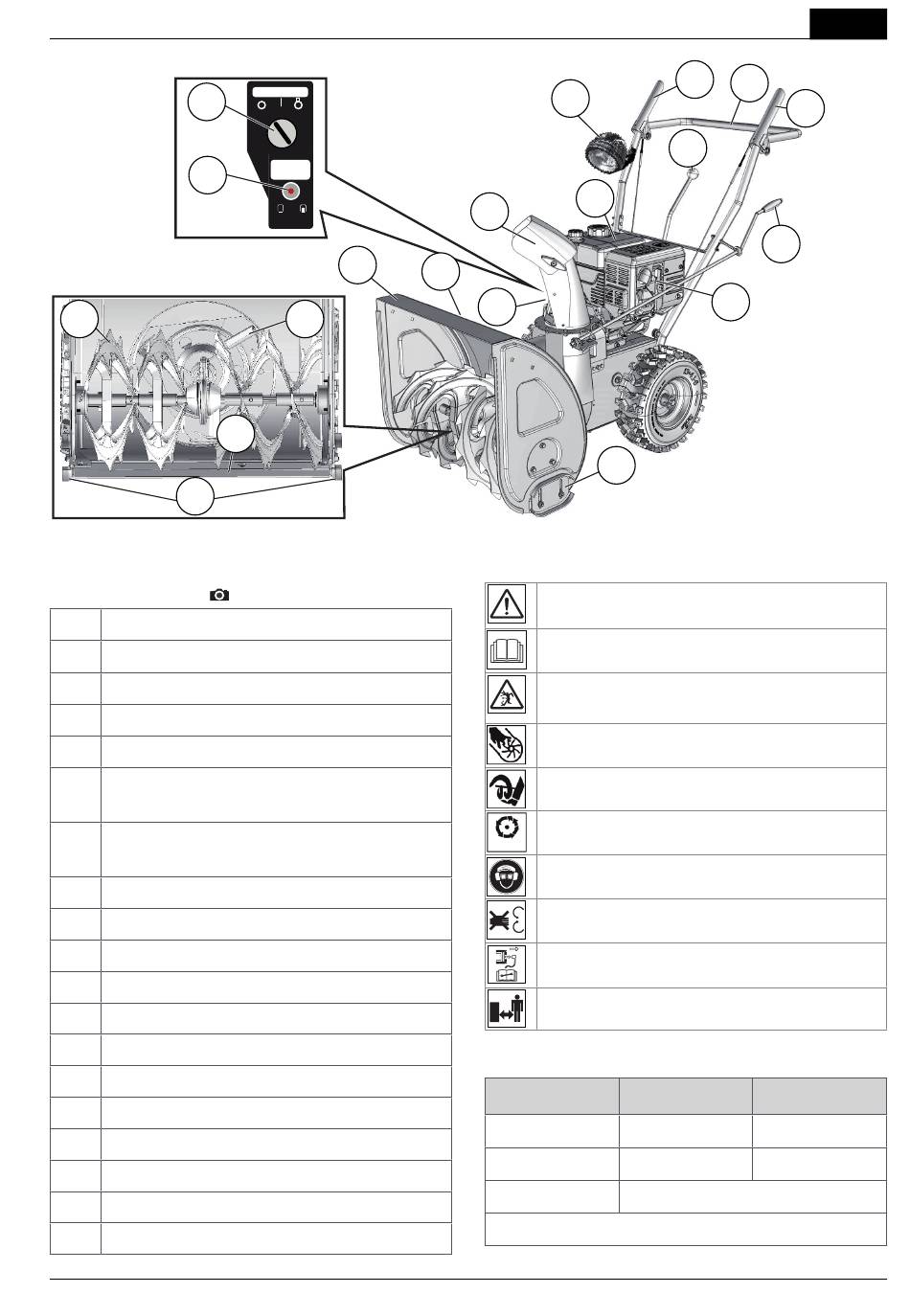

Product overview
(
1 Wheel drive clutch lever
2 Guide handle
3 Auger drive clutch lever
4 Snow discharge chute with protective guard
5 Engine
6 Drive speed selection lever, 5 forward and
2 reverse speeds
7 Hand crank for adjusting snow discharge
chute
8 Shield
9 Auger
10 Height-adjustable skid plates
11 Electric starter*
12 Headlight*
13 Battery*
14 Impeller
15 Snow cleaning tool (attached to shield)
16 Clearing plate
17 Spark plug connector
18 Circuit protector
*
Snow Line 620E only
469 186_b
ENGINE SW.
ON
OFF START
CIRCUIT
PROTECTOR
ON/push OFF
8
14
16
A)
12
5
4
15
13
Symbols on the machine
Caution!
Special care required during use.
Read the operating instructions before start-up.
Keep away from snow discharge area. Danger
from snow discharge.
Keep hands out of snow discharge chute.
Keep hands and feet away from auger.
Switch off engine before working on the
machine.
STOP
Wear eye and hearing protection.
Keep away from rotating parts to avoid the risk
of getting entangled.
Disconnect spark plug connector before per-
forming maintenance and repair work.
Keep others away from dangerous areas.
Models
Typ
560
620
620E
with electric starter, battery and headlight
1
2
6
7
17
10
A
< - > M
560 mm 182 cm³
620 mm 212 cm³
same as 620,
GB
3
