COMPACT 3.0
EN

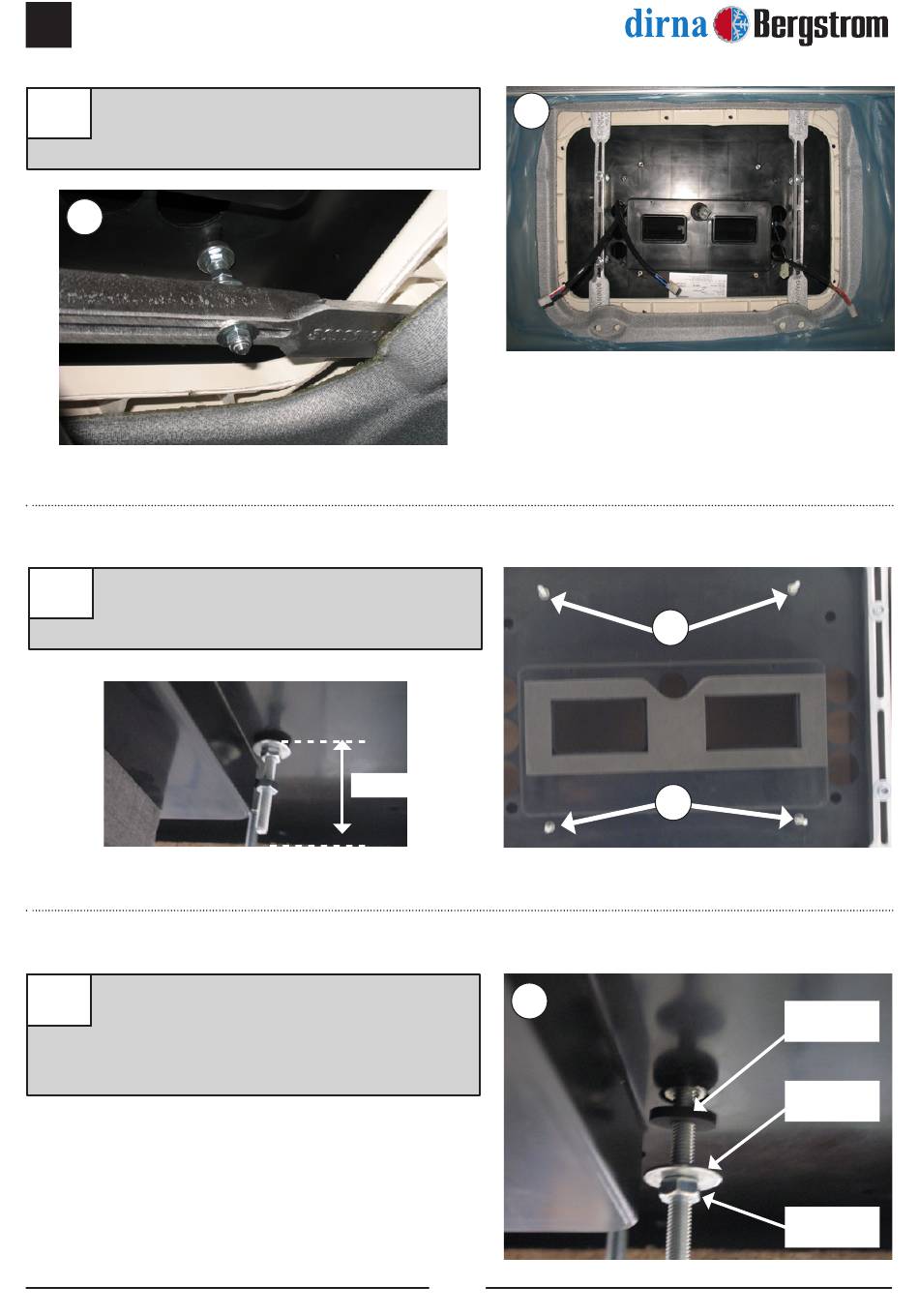

Place (2) fastening supports, with (1) washer
7
and (1) M8 self-blocking nut, without
tightening.
7
Screw 10 mm deep (4) M6 x 55 or 80 studs,
8
where indicated distance (D) in figure point
17.
To place (1) rubber washer diameter 6 (1),
9
plane washer diameter 6 wide wing and (1)
nut M6, over each of the spigots of M6. After,
to tight the nut til the rubber washer remain a
little tight.
7
(D) mm
9
22
8
8
Plane
washer
Plane wide
wing
Nut M6
®
