COMPACT 3.0

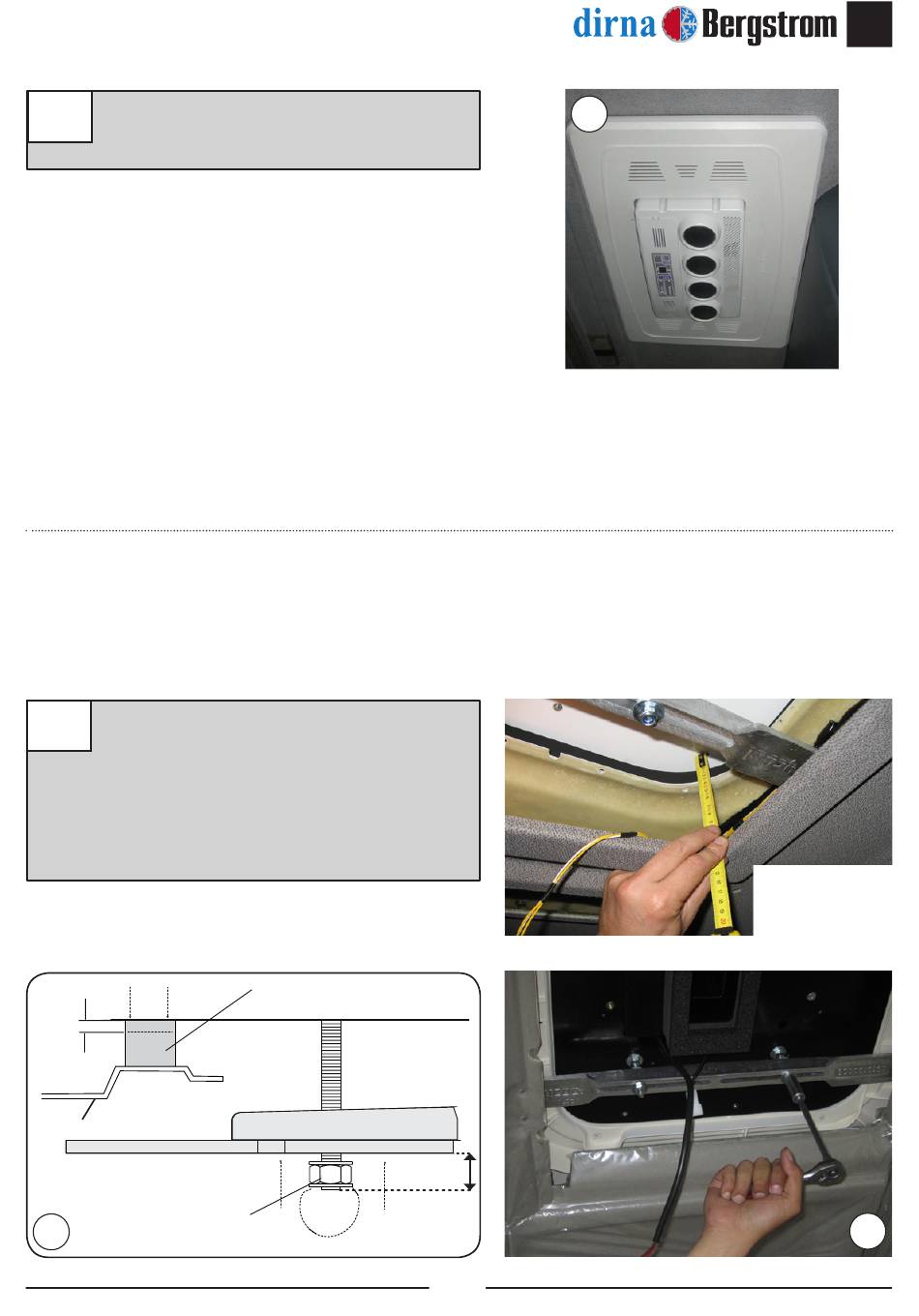

Place console and centre equipment in the
14
most convenient place of cabin roof. Once
centred, remove console for later installation.
Fasten supports tightening nuts until outside
15
EPDM joint of equipment is compressed,
between 3 and 6 mm.
Important: To avoid water from filtering
inside cabin,
tightening with unit base, as indicated
on diagram.
3-6mm.
Cabin roof
Fasten selflocked nut until
15 EPDM gasket is compressed
between 3 and 6 mm.
check EPDM joint
EPDM gasket
10 mm*
(*) (approx. after tightening)
14
25
EN
®
Check compression
thickness using a
tape measure in the
four corners.
15
