Troubleshooting

Safety

Danger from electrical current.
This can result in serious personal injury and damage to property.

General remarks

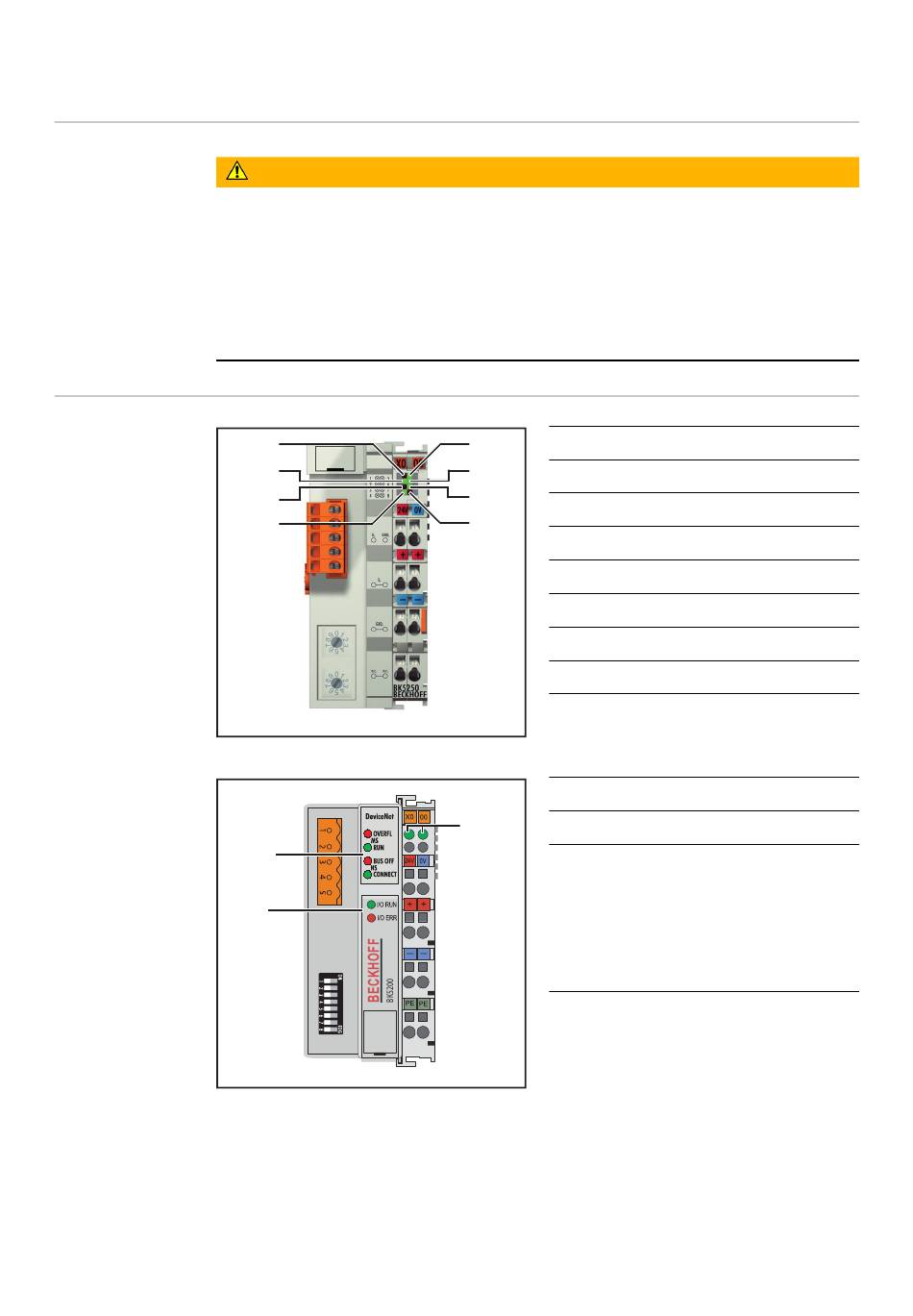

Elements on the field bus coupler BK5250
Elements on the field bus coupler BK5200
If an error occurs, the field bus status/operating status LEDs signal the type of
error and where it occurred.
WICHTIG! In some cases, the field bus coupler does not complete the flashing
sequence once the error has been rectified. Restart the field bus coupler by swit-
ching the supply voltage off and on again, or by resetting the software.
52
WARNING!
Before starting work, switch off all devices and components involved and dis-
connect them from the grid.
Secure all devices and components involved so they cannot be switched back
on.
After opening the device, use a suitable measuring instrument to check that
electrically charged components (such as capacitors) have been discharged.
(1)
(2)
(3)
(4)
(10)
(9)
(1)
LED ADR (Module)
(5)
(6)
(2)
LED RUN (Module)
(7)
(3)
LED TX overflow (Net)
(8)
(4)
LED overflow (Net)
(5)
LED bus coupler supply
(6)
LED power contacts supply
(7)
LED K bus RUN
(8)
LED K bus ERR
(9)
Operating status LEDs
(11)
(10)
Field bus status LEDs
(11)
Supply LEDs
-
left-hand LED ... monitors
the field bus coupler power
supply
-
right-hand LED... monitors
the power contact supply
