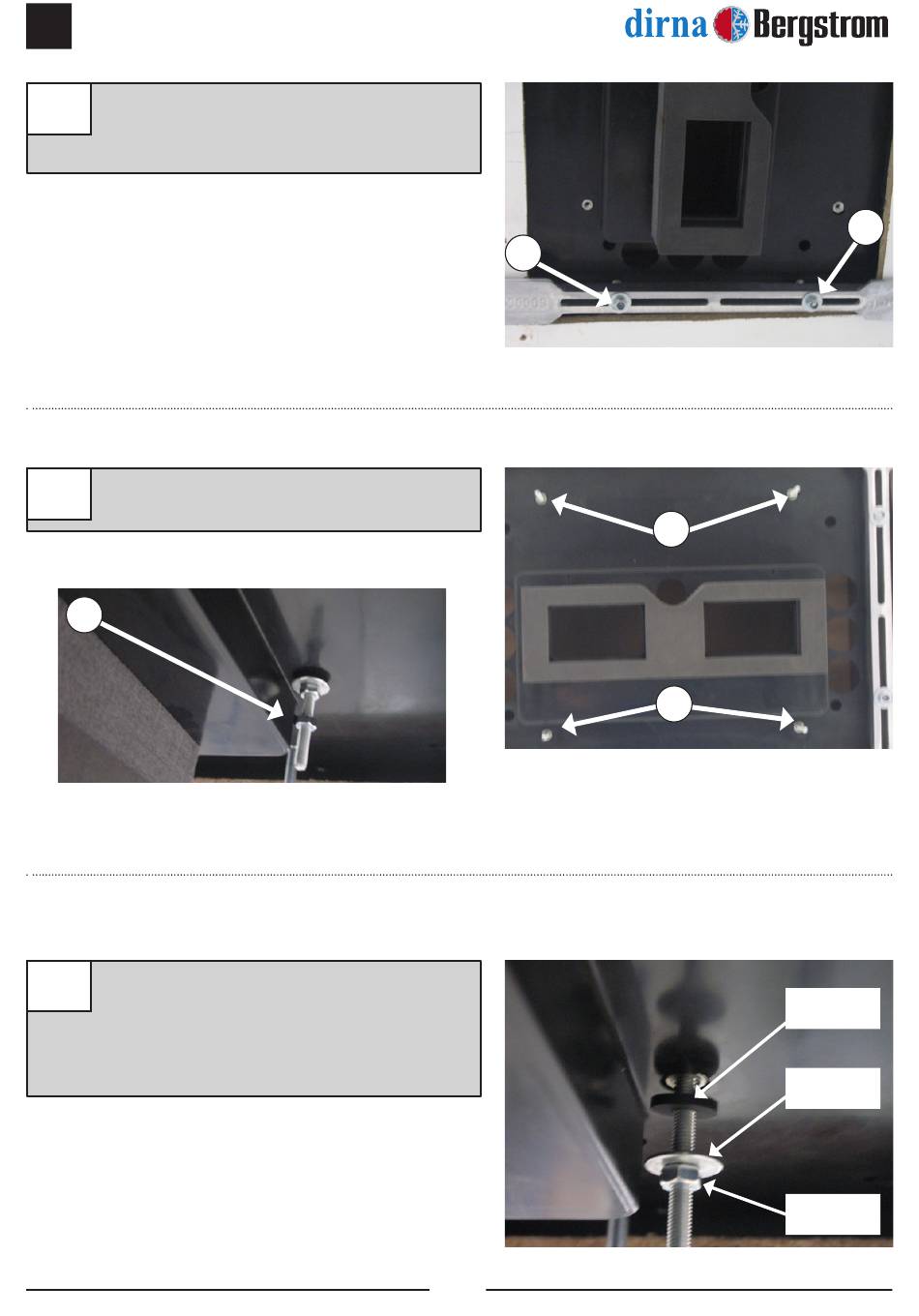

Place (2) fastening supports, with (1) washer
7
and (1) M8 self-blocking nut, without
tightening.
7
7
Screw 10 mm deep (4) M6 studs, where
8
indicated distance (D) in figure point 10.
8
8
8
To place (1) rubber washer diameter 6 (1),
9
plane washer diameter 6 wide wing and (1)
plane washer
nut M6, over each of the spigots of M6. After,
to tight the nut til the rubber washer remain a
little tight.
plane wide
wing
nut M6
