Error diagnosis
7.1.1

Continuity check for temperature sensor

7.1.2

Error messages

The RA 4500 D carries out an automatic error diagnosis. The result of a diagnosis is an er-
ror code. The string "Err" then appears as the first three characters of the display. At the
same time, the error code is displayed as the fourth character. The error codes are listed
in Table 4. Error messages may also be confirmed with the control buttons.
Display
Err2
Err4
Err5
Err6
Err7
Err9
ersa IRHP 200

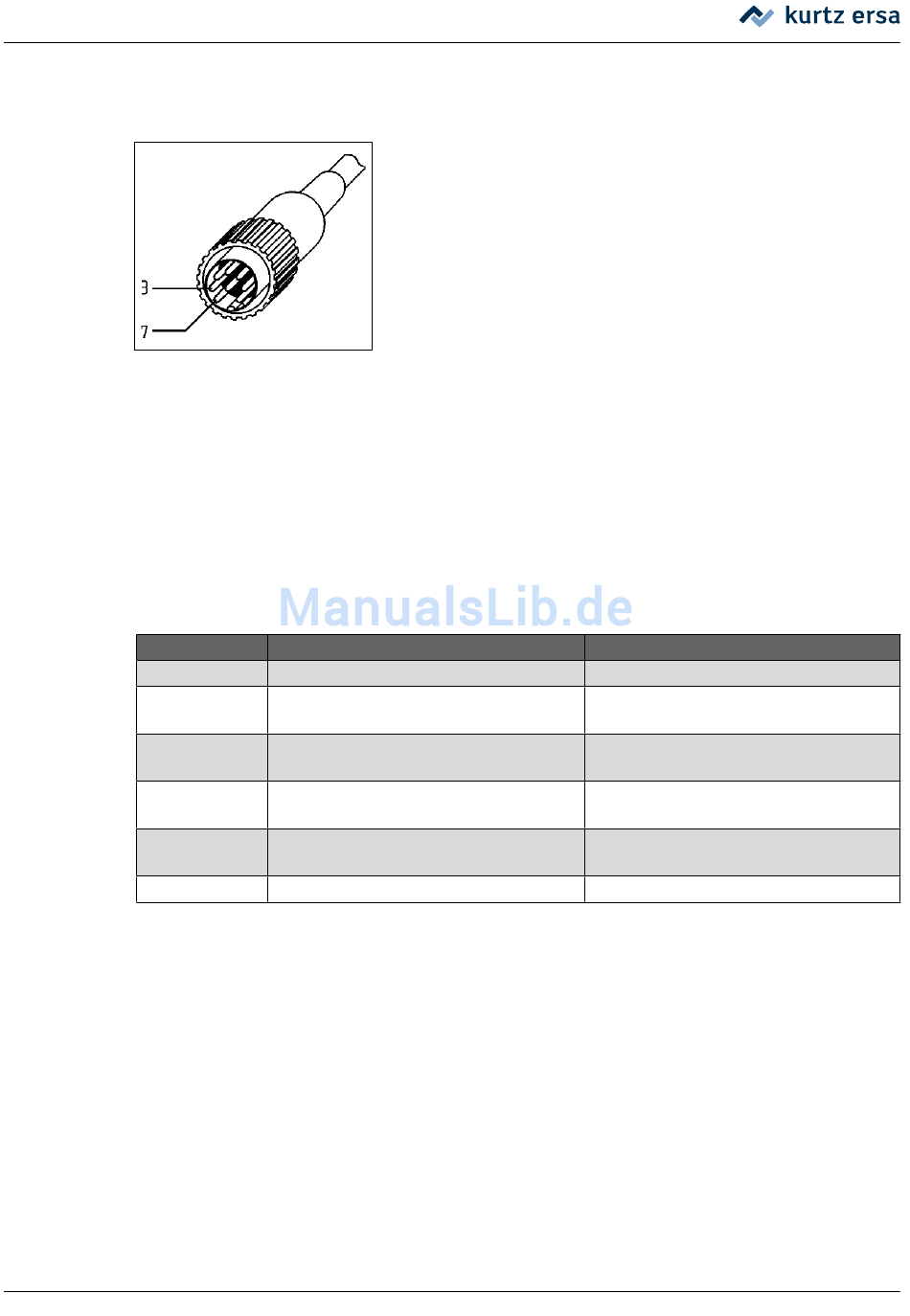

The continuity resistance between measuring points 7 and
3 should be less than 25 ohms. If the continuity resistance
is higher, the heating element with integrated sensor must
be replaced.
Description of error
Calibration value damaged.
Sensor cold junction temperature/defective
cable
Safety power-off of the heater
Temperature sensor cannot be identified
Temperature sensor defective
Set parameter damaged.
3BA00133 • 2013-06-25 • Rev. 5
Measures
Return control station for repairs.
Return temperature sensor/station for
repairs
Return temperature sensor/station for
repairs
Return temperature sensor/station for
repairs
Return temperature sensor/station for
repairs.
Reset the station.
27
