Installation instructions, only for experts

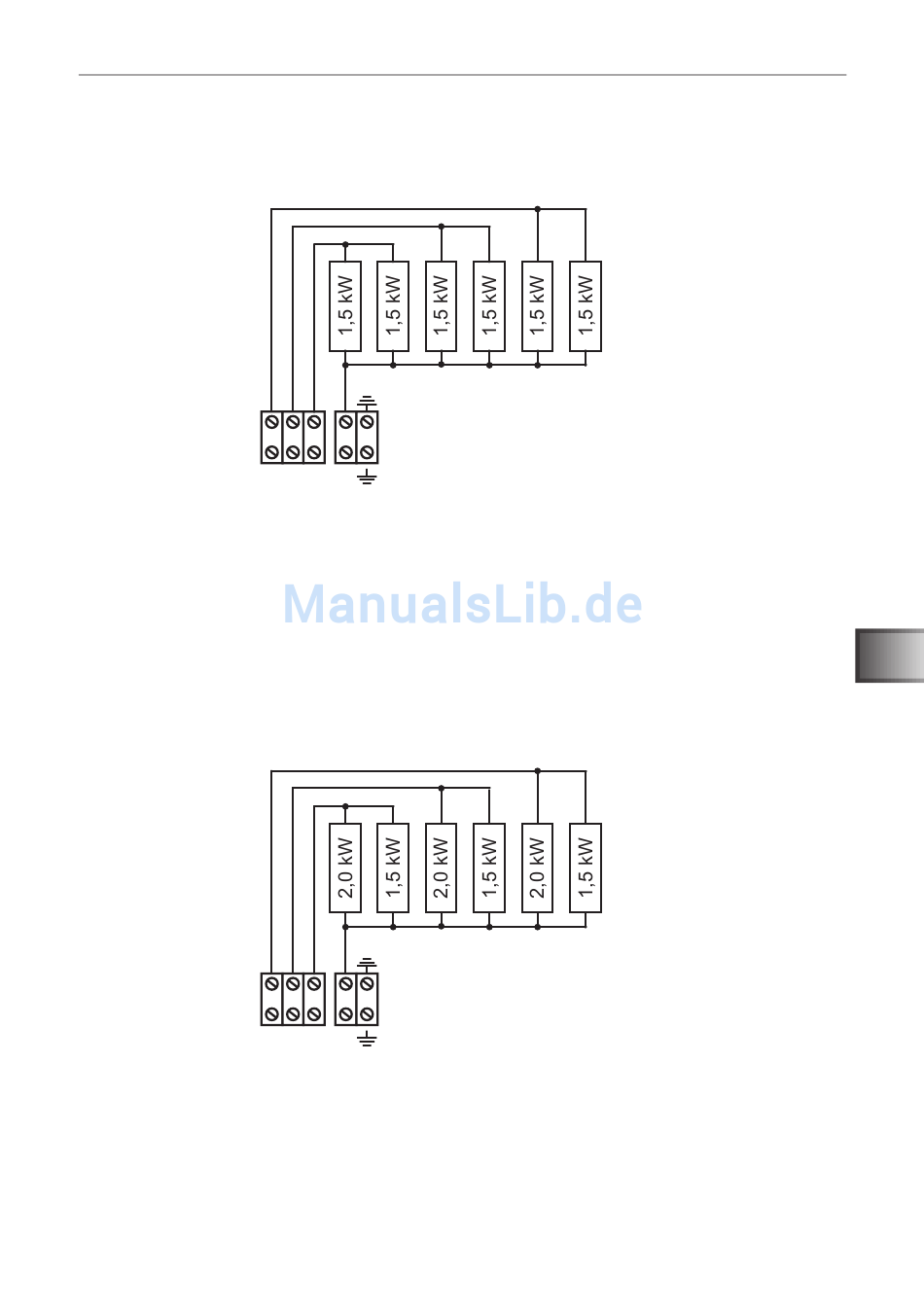

4.5. Wiring diagrams

WORLD OF WELLNESS
U V W N
To the con-
trol device
U V W N
To the con-
trol device
CP-R-090
CP-R-090
CP-RB-090
9,0 kW
9,0 kW
CP-R-105
CP-R-105
CP-RB-105
10,5 kW
10,5 kW
