Installation instructions, only for experts

4.4. Wiring diagrams

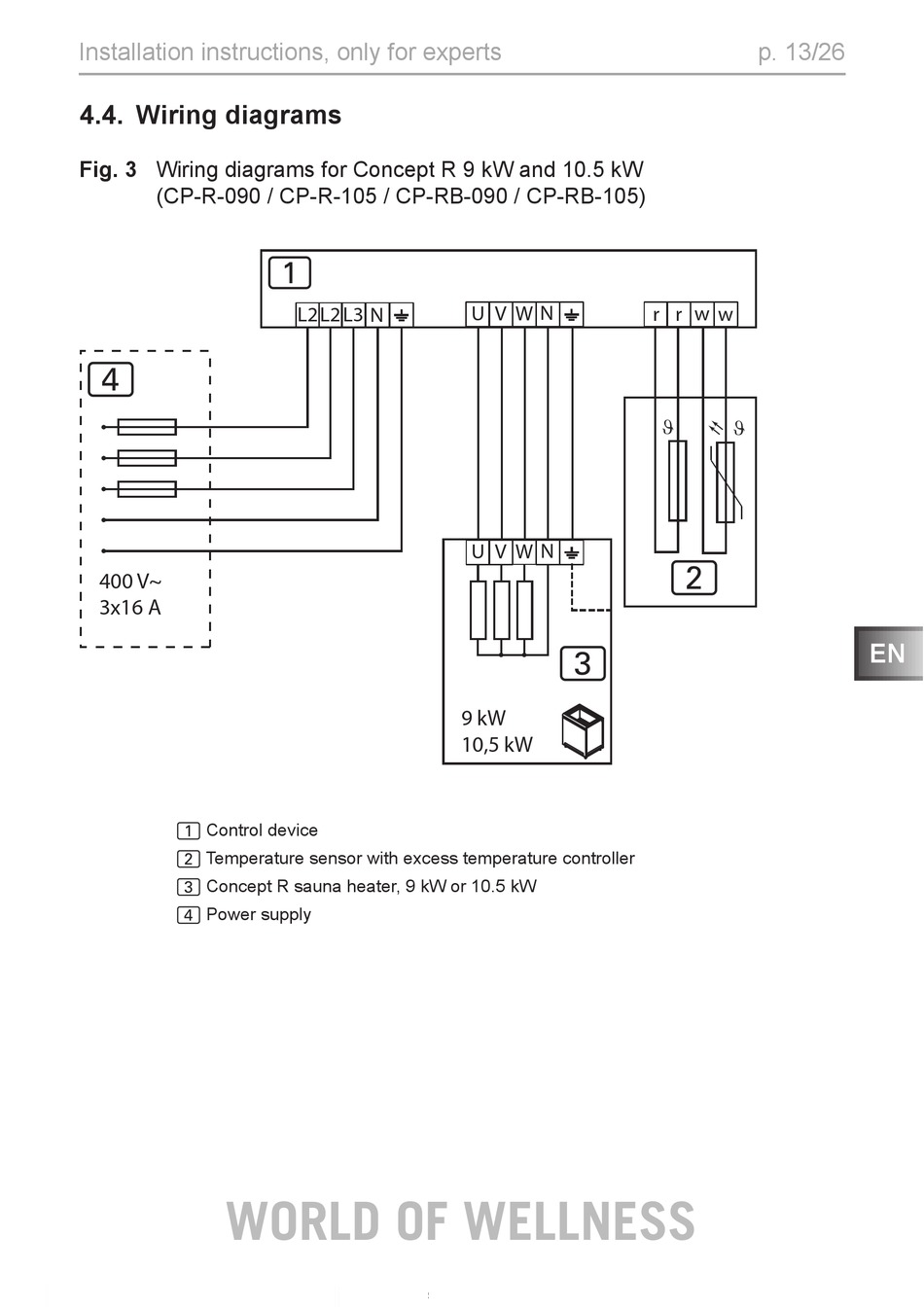

Fig. 3 Wiring diagrams for Concept R 9 kW and 10.5 kW
(CP-R-090 / CP-R-105 / CP-RB-090 / CP-RB-105)
4
400 V~
3x16 A
1 Control device
2 Temperature sensor with excess temperature controller
3 Concept R sauna heater, 9 kW or 10.5 kW
4 Power supply
WORLD OF WELLNESS
1
L2 L2 L3 N
N
U V W
N
U V W
3
9 kW
10,5 kW
p. 13/26
r r w w
ϑ
ϑ
2
EN
