Checking the Contents of
Packing
Unpacking of RotoForce-3
Getting Acquainted with
RotoForce-3
2
RotoForce-3
Instruction Manual
1. Getting Started
In the packing box you should find the following parts:
1
RotoForce-3
1
Lupo automatic drip lubricator
1
Silicone tube
1
Pressure hose, 3 m
2
Hose clamps
1
Hose clamp
1
Quick coupling
1
Hose nipple
1
Screw M5x10 with washer
1
Socket spanner
1
Allen key
1
Set of Instruction manuals
Remove RotoForce-3 from the transportation box. Save the nut
and the washer holding RotoForce-3. They are to be re-used when
mounting RotoForce-3 on RotoPol-21/-22/-25 or Rotopol-1/-2/-V.

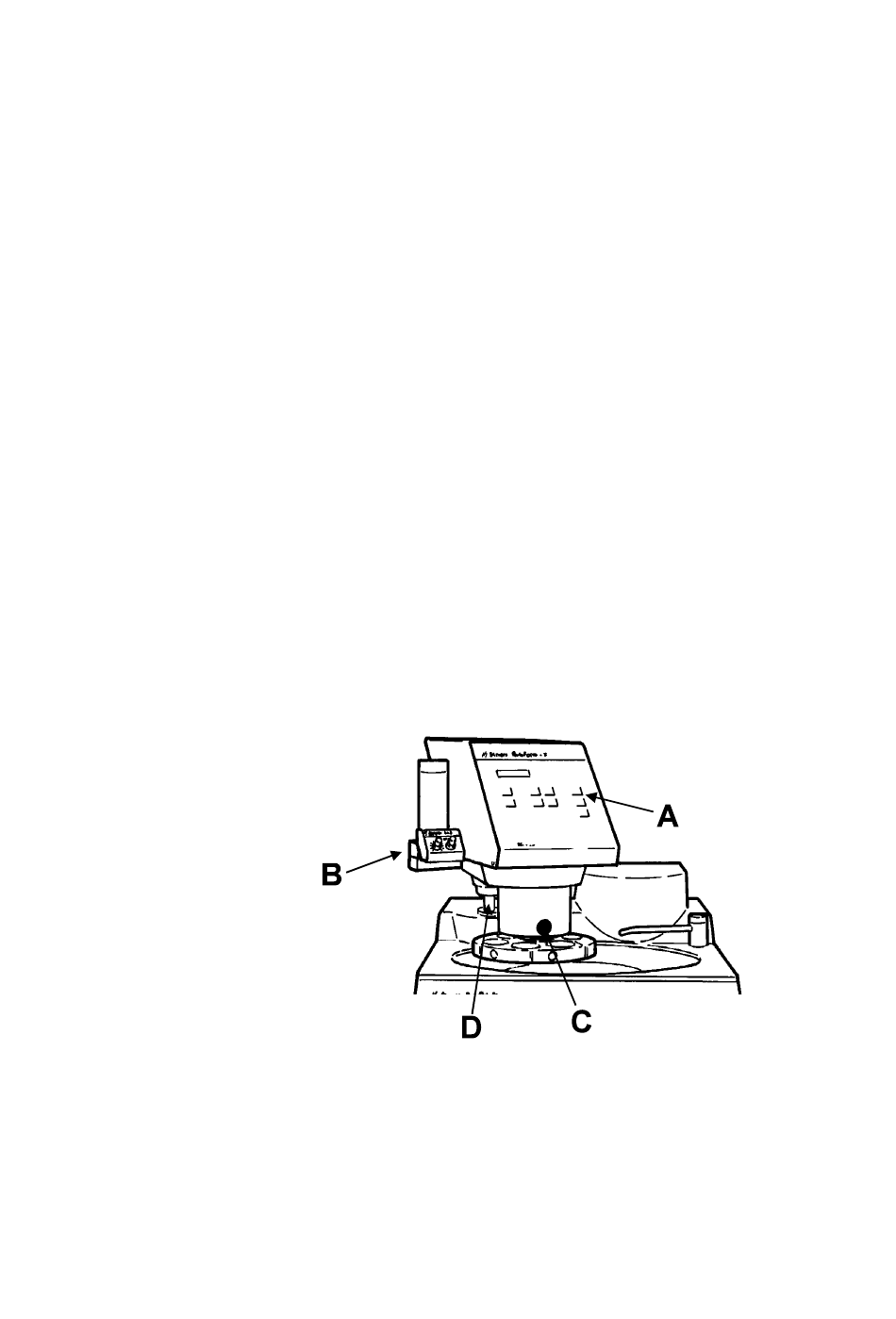

Take a moment to familiarise yourself with the location and
names of the RotoForce-3 components.
RotoForce-3 on RotoPol-31 (optional)
A
Control keys and display
Lupo drip lubricator
B
C
Release knob
D
Supporting column and stop ring
