6

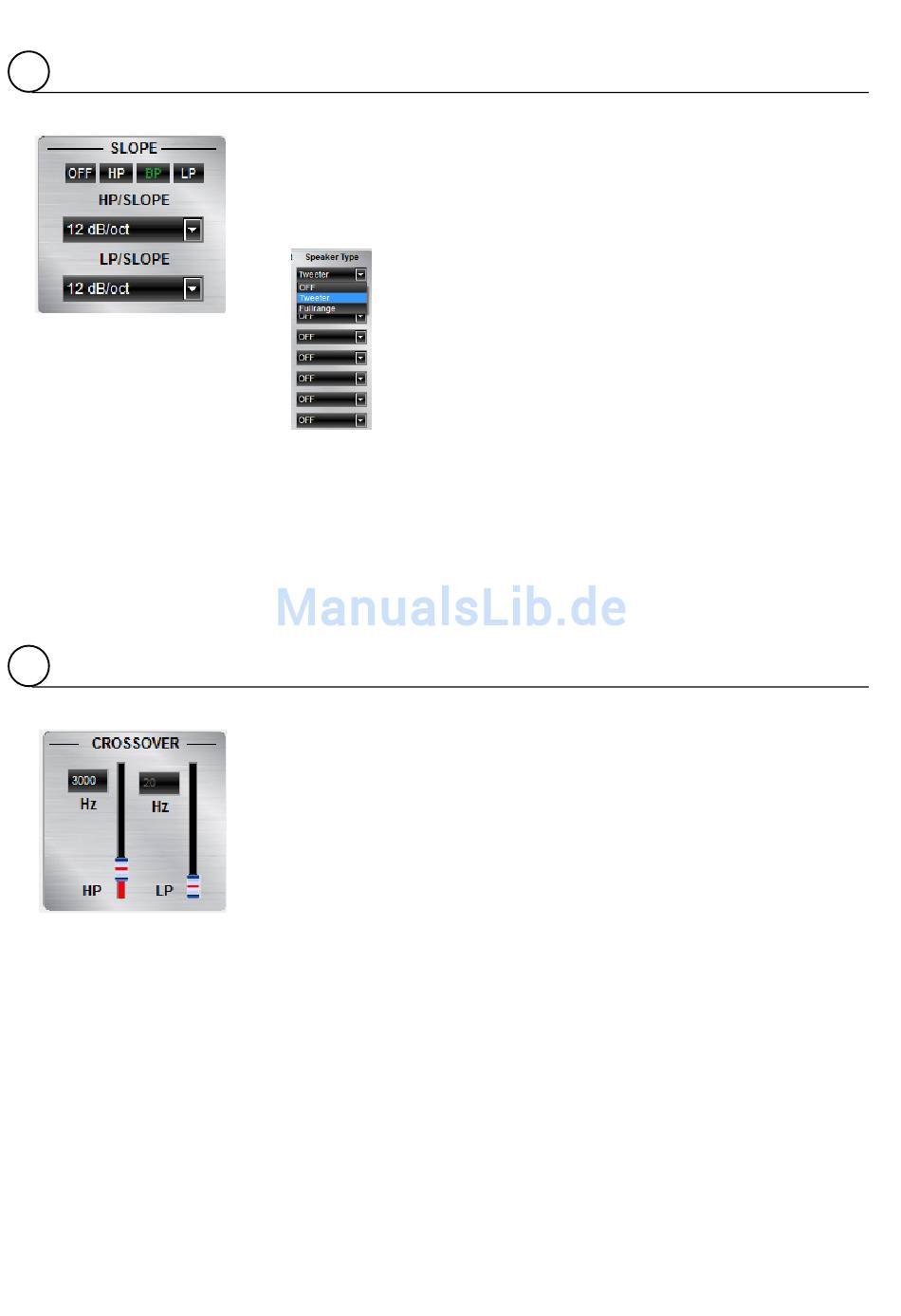

SLOPE
7
CROSSOVER
Activating the filters and choosing the slope
Before choosing the filter, a Speaker type must be defined in window 3.
Highpass (HP) / Bandpass (BP) and Lowpass (LP) can be chosen.
A slope of 6/12/18/24/30/36/42/48 dB/Oct can be selected.
Adjusting the cutoff frequency
The filters can be adjusted continuously from 20 – 20000 Hz.
The controls can only be used if a filter (Slope/6) has been selected first.
Note: If a filter has been selected, it is possible to adjust the crossover
frequency directly with the cursor at the frequency chart (8). Click and
hold the red (HPF) or blue (LPF) dot with the cursor and move it to the
desired point on the frequency chart.
Hint: Instead of using the crossover control, it is possible to adjust the
crossover point by typing the required value directly into the box above
and confirm with >ENTER< or by using the up/down cursor buttons.
- 16 -
