Ground Zero GZDSP 6-8X Anleitung Seite 32

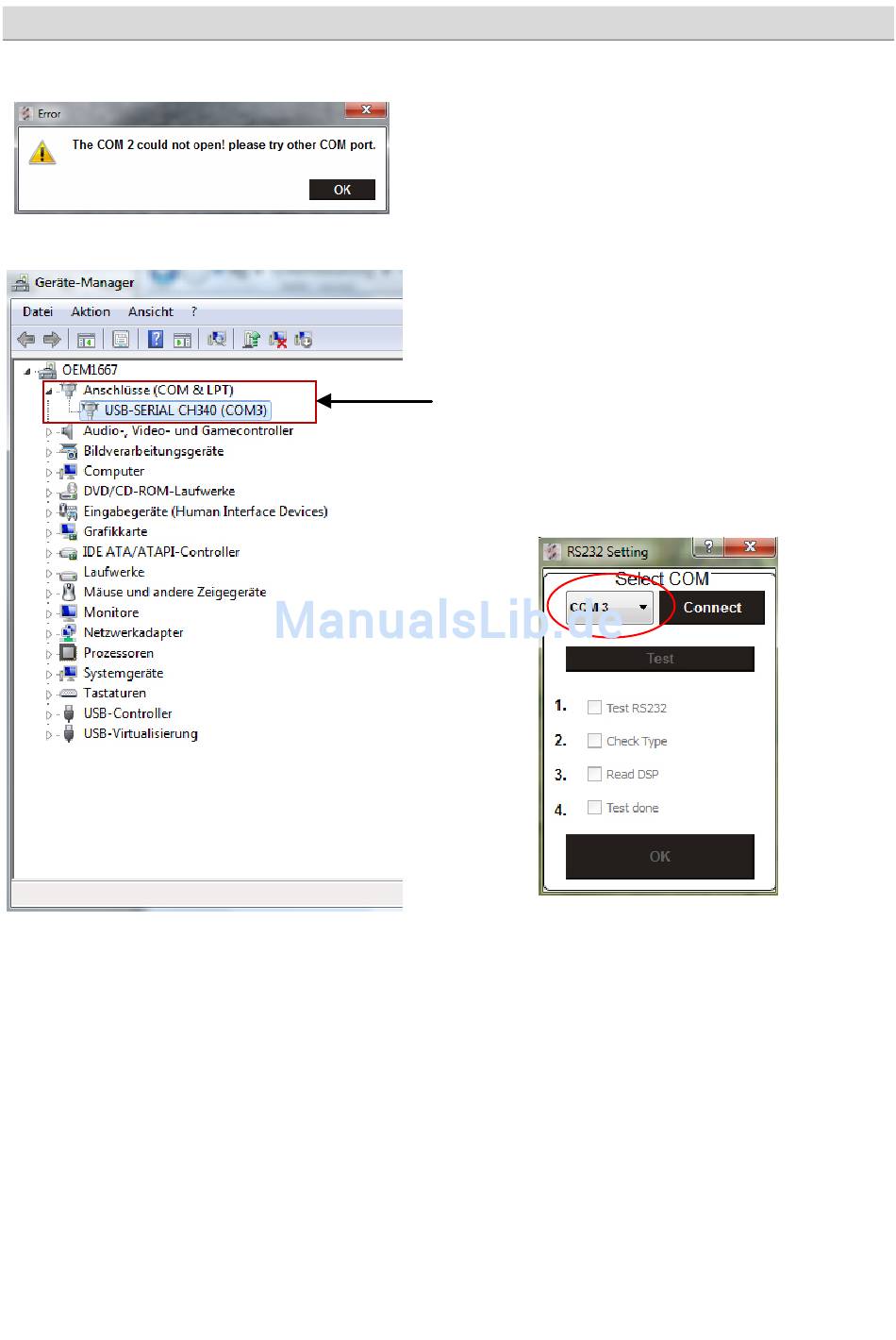

Error Message using wrong USB COM-Port
If this message will appear, the operating system
assigned the wrong COM port or it was not possible
to assign one of the COM1 to COM9 ports due to
environmental issues of the PC. The COM port
assignment may be checked with the operating
systems device manager.
In this case the correct COM port would be number 3
Close the pop-up window by clicking „OK", now it is
possible to select the correct COM port at the „Select
COM" window.
Important note:
If the assigned COM port is COM10 or higher, one of
the unused COM ports 1 to 9 has to be deleted in order
to change the previously automatically assigned COM
port for the „USB-SERIAL CH340" device to the one that
has been deleted now.
- 10 -
