CHANNEL MATRIX
Input-MIX –
Input summing of filtered signals
This setup should be chosen if the head-unit has filtered (HPF/LPF/BPF) pre-amplified output channels.
All 6 input channels will be summed to a full-range audio signal.
Outputs A+C+E+G receive a summed audio signal from the input channels FL+RL+SUBL
Outputs B+D+F+H receive a summed audio signal from the input channels FR+RR+SUBR
We recommend to connect the input channels as follows
FL+FR: Highpass filtered audio signal
RL+RR: Bandpass filtered audio signal
SUBL+SUBR: Lowpass filtered audio signal

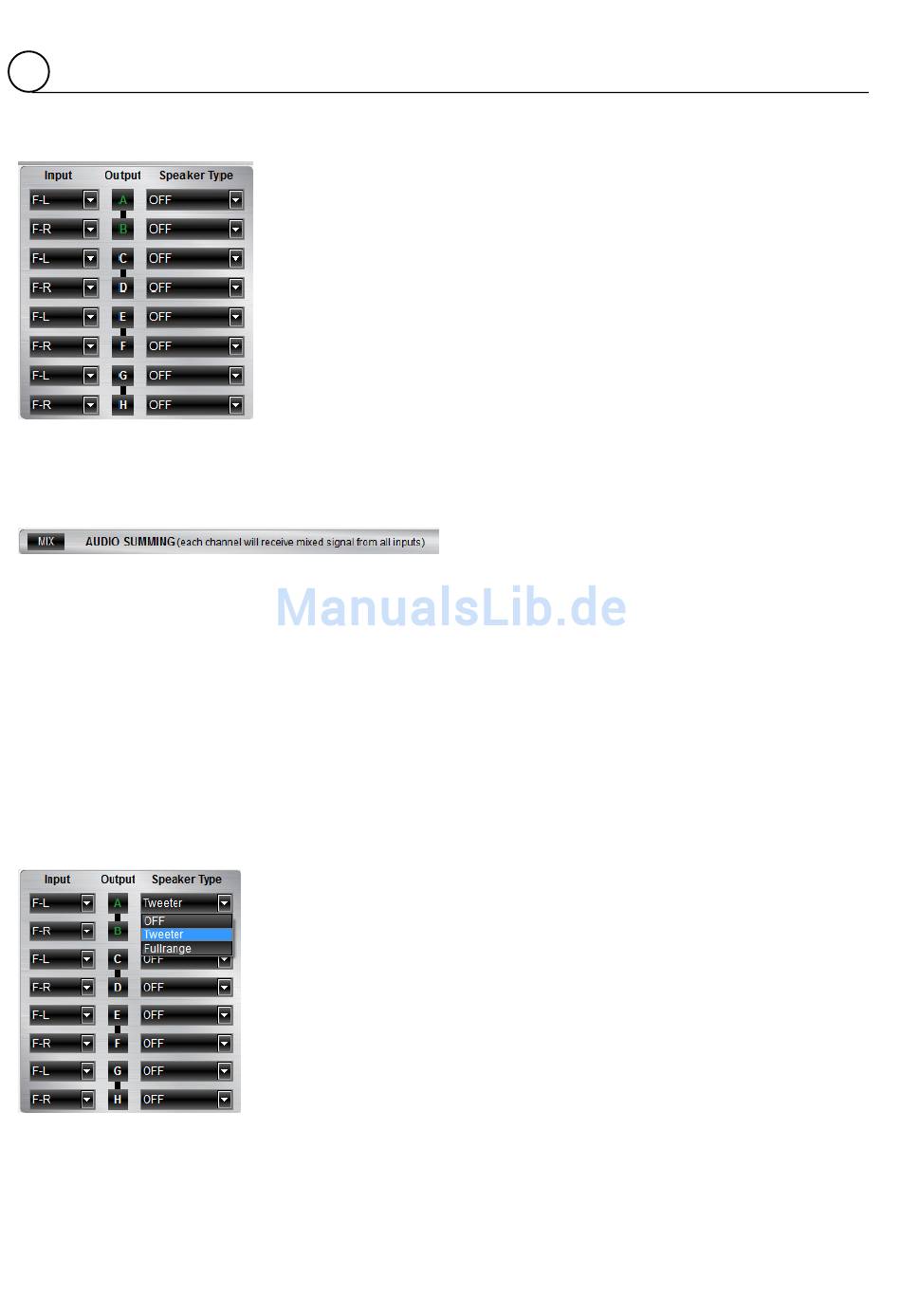

Configuration of in- and outputs
Input – Assignment of the corresponding input channel to the respective
output A – H.
The following input options are available:
Channel A/B : F-L (
Channel C/D/E/F : F-L (
or R-L (
Channel G/H: F-L (
or R-L (
or SUB-L and SUB-R
or F-L+R (
or R-L+R (
or SUB-L+R (
or F+R-L (
and F+R-R (
Output – Clicking the corresponding channel will allow adjustments of
crossover, slope and equalizer functions.
Same as CH Setting (2) function.
Speaker Type – Preselection of the connected speakers.
3 different options can be chosen.
OFF – Channel deactivated
Fullrange – Expertmode. All filters deactivated
Tweeter (A/B) –Highpass filter preset 3000 Hz (12 dB)
Midrange (C/D) –Bandpass filter preset 250 / 3000 Hz (12 dB)
Kickwoofer (E/F) –Bandpass filter preset 80 / 250 Hz (12 dB)
Subwoofer (G/H) –Bandpass filter preset 20 / 80 Hz (12 dB)
- 13 -
) and F-R ( )
Front-L Front-R
) and F-R ( )
Front-L Front-R
and R-R (
Rear-L) Rear-R
) and F-R ( )
Front-L Front-R
and R-R (
Rear-L) Rear-R
Mono-summation of Front-L and Front-R
Mono-summation of Rear-L and Rear-R
Mono-summation of SUB-L and SUB-R)
Summation of Front-L and Rear-L)
Summation of Front-R and Rear-R)
)
)
)
)
