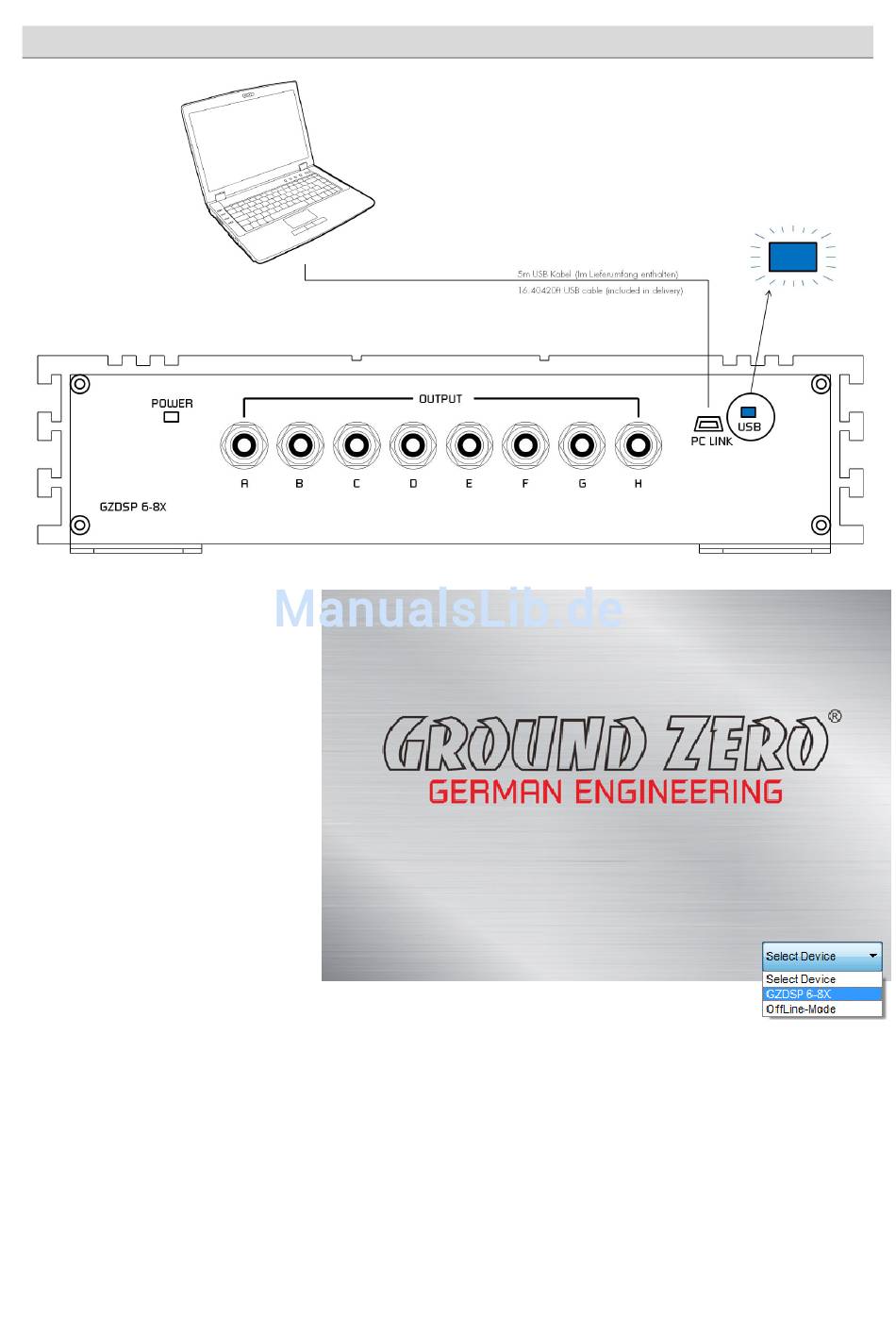

To configure the DSP unit, it has to be
connected using the enclosed USB
wire to the PC with the previously
installed DSP software.
The head-unit and the DSP unit has to
be turned on before starting the DSP
software.
The DSP software starts by clicking the
desktop icon.
The start screen will appear and the
GZDSP 6-8x unit has to be selected as
device (Select Device).
Demo Mode (Off-Line Mode):
It´s possible to use the PC software without having the DSP unit connected, to become familiar with most of the
software features.
Important Note:
We don´t recommend to use any passive extension cord with the supplied USB wire, as the proper function can´t be ensured. If the
enclosed wire is too short, we recommend a suitable USB wire with an integrated repeater.
The LED next to the USB port will light up blue as soon as the DSP unit has been connected to the PC.
Connecting the DSP to the PC
