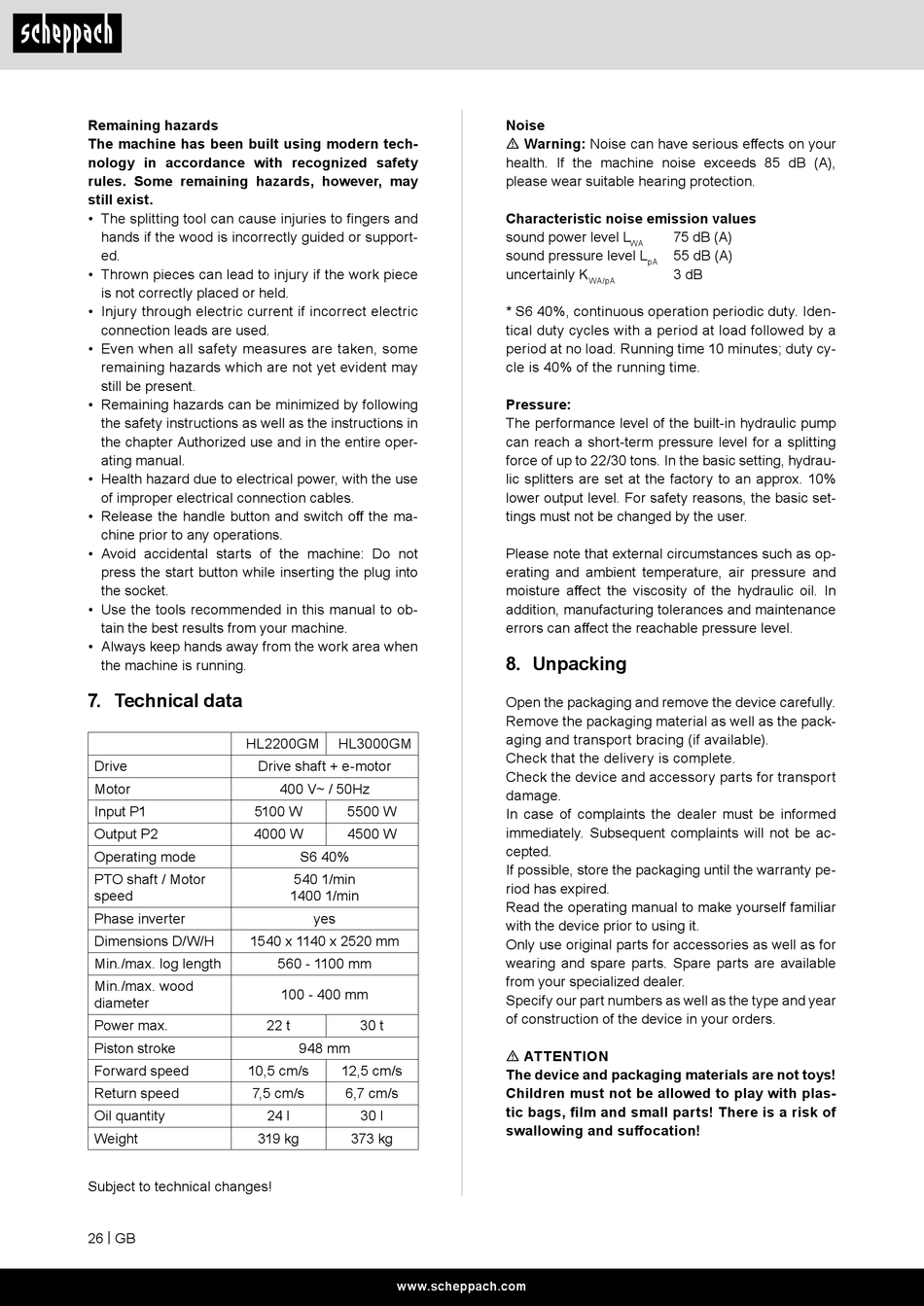

Remaining hazards
The machine has been built using modern tech-
nology in accordance with recognized safety
rules. Some remaining hazards, however, may
still exist.
• The splitting tool can cause injuries to fingers and
hands if the wood is incorrectly guided or support-
ed.
• Thrown pieces can lead to injury if the work piece
is not correctly placed or held.
• Injury through electric current if incorrect electric
connection leads are used.
• Even when all safety measures are taken, some
remaining hazards which are not yet evident may
still be present.
• Remaining hazards can be minimized by following
the safety instructions as well as the instructions in
the chapter Authorized use and in the entire oper-
ating manual.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Release the handle button and switch off the ma-
chine prior to any operations.
• Avoid accidental starts of the machine: Do not
press the start button while inserting the plug into
the socket.
• Use the tools recommended in this manual to ob-
tain the best results from your machine.
• Always keep hands away from the work area when
the machine is running.
7. Technical data
HL2200GM
Drive Drive shaft + e-motor
Motor
Input P1 5100 W
Output P2 4000 W
Operating mode
PTO shaft / Motor
speed
Phase inverter
Dimensions D/W/H 1540 x 1140 x 2520 mm
Min./max. log length
Min./max. wood
diameter
Power max.
Piston stroke
Forward speed 10,5 cm/s
Return speed 7,5 cm/s
Oil quantity
Weight 319 kg
Subject to technical changes!
26 | GB
HL3000GM
400 V~ / 50Hz
5500 W
4500 W
S6 40%
540 1/min
1400 1/min
yes
560 - 1100 mm
100 - 400 mm
22 t 30 t
948 mm
12,5 cm/s
6,7 cm/s
24 l 30 l
373 kg
www.scheppach.com
Noise
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A),
please wear suitable hearing protection.
Characteristic noise emission values
sound power level L 75 dB (A)
WA
sound pressure level L 55 dB (A)
pA
uncertainly K 3 dB
WA/pA
* S6 40%, continuous operation periodic duty. Iden-
tical duty cycles with a period at load followed by a
period at no load. Running time 10 minutes; duty cy-
cle is 40% of the running time.
Pressure:
The performance level of the built-in hydraulic pump
can reach a short-term pressure level for a splitting
force of up to 22/30 tons. In the basic setting, hydrau-
lic splitters are set at the factory to an approx. 10%
lower output level. For safety reasons, the basic set-
tings must not be changed by the user.
Please note that external circumstances such as op-
erating and ambient temperature, air pressure and
moisture affect the viscosity of the hydraulic oil. In
addition, manufacturing tolerances and maintenance
errors can affect the reachable pressure level.
8. Unpacking
Open the packaging and remove the device carefully.
Remove the packaging material as well as the pack-
aging and transport bracing (if available).
Check that the delivery is complete.
Check the device and accessory parts for transport
damage.
In case of complaints the dealer must be informed
immediately. Subsequent complaints will not be ac-
cepted.
If possible, store the packaging until the warranty pe-
riod has expired.
Read the operating manual to make yourself familiar
with the device prior to using it.
Only use original parts for accessories as well as for
wearing and spare parts. Spare parts are available
from your specialized dealer.
Specify our part numbers as well as the type and year
of construction of the device in your orders.
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!
