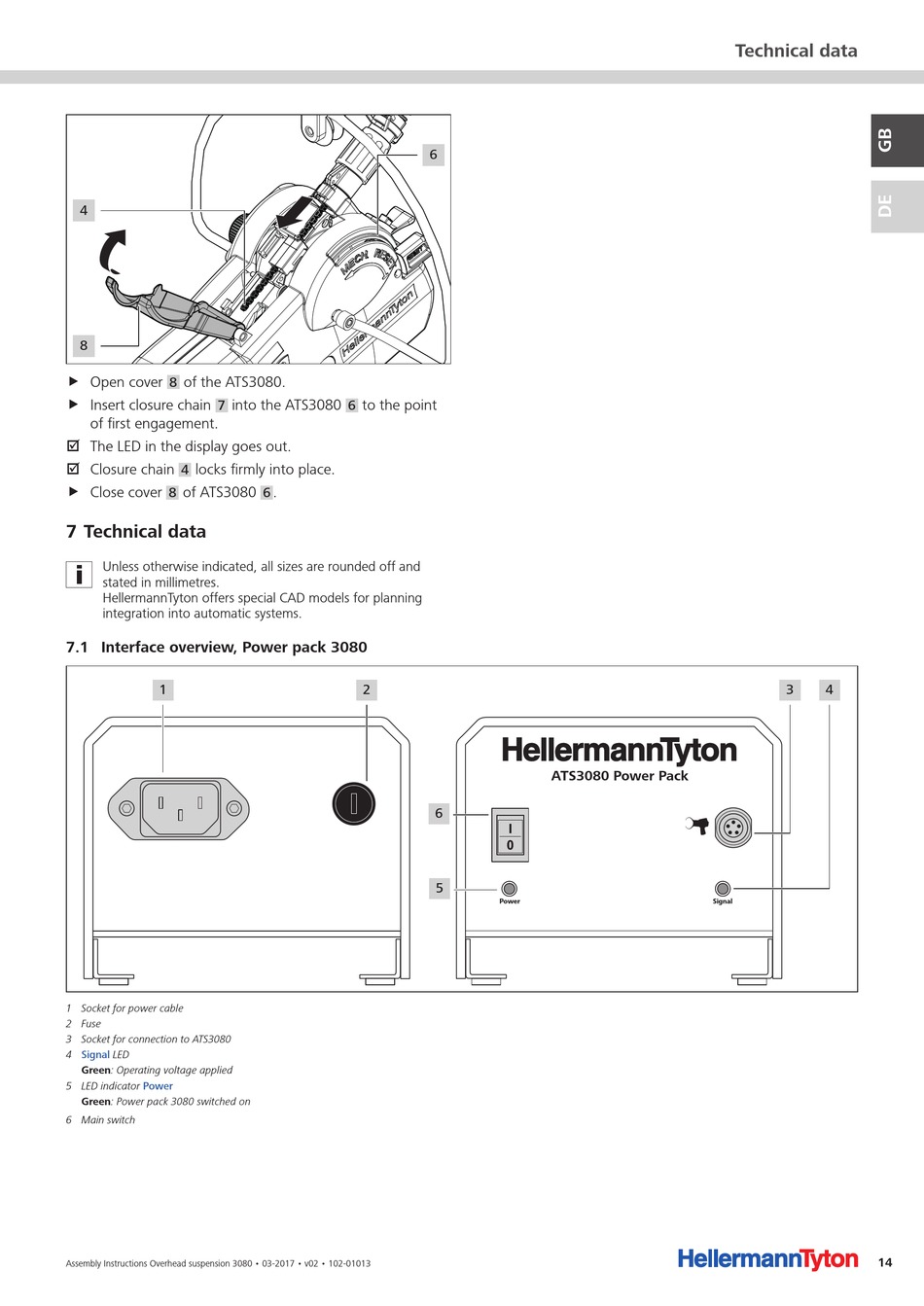

Technical Data - HellermannTyton Autotool System 3080 Montageanleitung

4
8
f Open cover of the ATS3080.
8
f Insert closure chain
into the ATS3080
7
of first engagement.
; The LED in the display goes out.
; Closure chain locks firmly into place.
4
f Close cover of ATS3080
8

7 Technical data

Unless otherwise indicated, all sizes are rounded off and
stated in millimetres.
HellermannTyton offers special CAD models for planning
integration into automatic systems.
7 .1 Interface overview, Power pack 3080
1
1 Socket for power cable
2 Fuse
3 Socket for connection to ATS3080
4 Signal LED
Green: Operating voltage applied
5 LED indicator Power
Green: Power pack 3080 switched on
6 Main switch
Assembly Instructions Overhead suspension 3080 • 03-2017 • v02 • 102-01013
6
to the point
6
.
6
2
6
5
ATS3080 Power Pack
Power
Technical data
3 4
Signal
14
