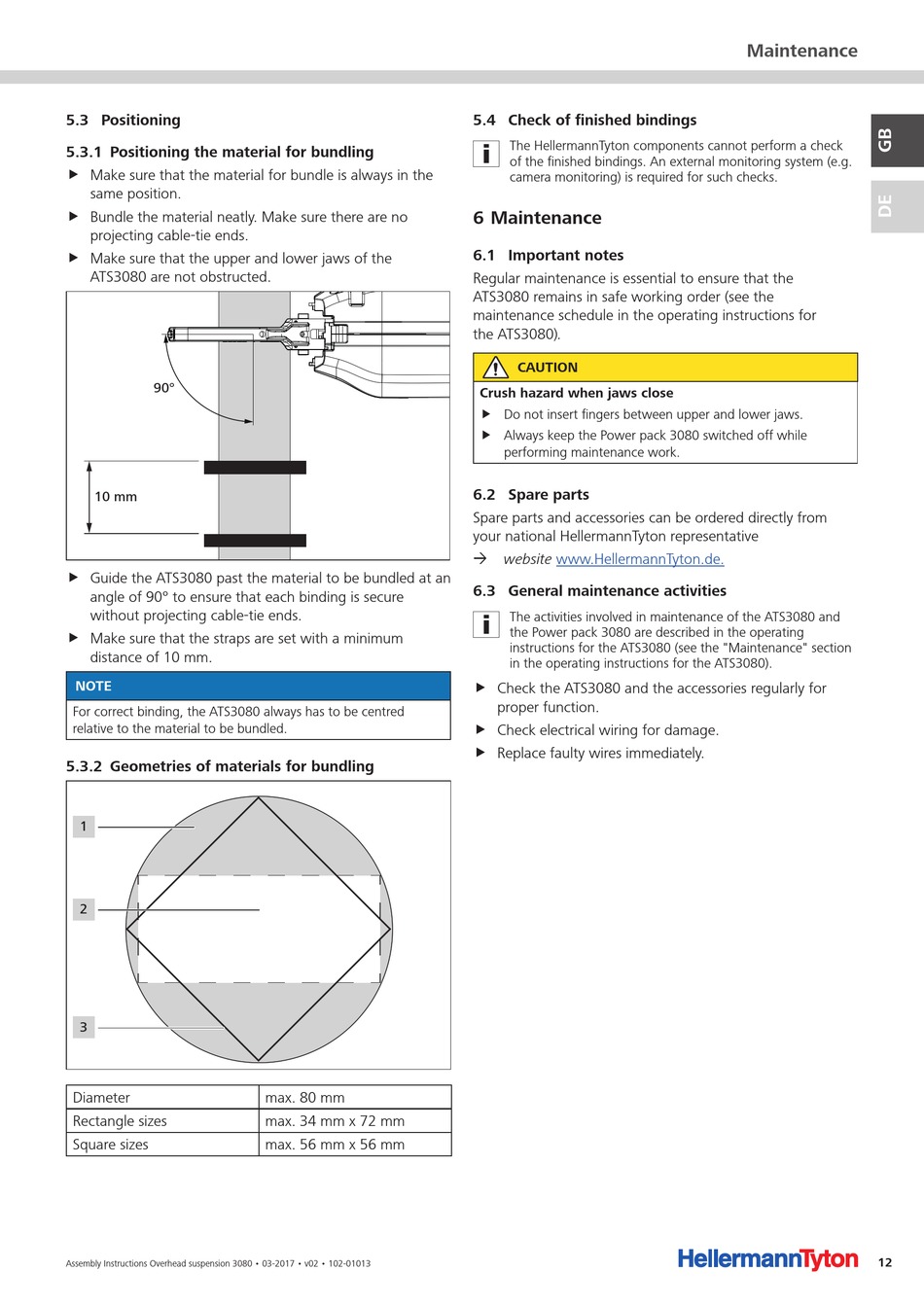

5 .3 Positioning

5 .3 .1 Positioning the material for bundling

f Make sure that the material for bundle is always in the
same position.
f Bundle the material neatly. Make sure there are no
projecting cable-tie ends.
f Make sure that the upper and lower jaws of the
ATS3080 are not obstructed.
90°
10 mm
f Guide the ATS3080 past the material to be bundled at an
angle of 90° to ensure that each binding is secure
without projecting cable-tie ends.
f Make sure that the straps are set with a minimum
distance of 10 mm.
NOTE
For correct binding, the ATS3080 always has to be centred
relative to the material to be bundled.

5 .3 .2 Geometries of materials for bundling

1
2
3
Diameter
Rectangle sizes
Square sizes
Assembly Instructions Overhead suspension 3080 • 03-2017 • v02 • 102-01013
max. 80 mm
max. 34 mm x 72 mm
max. 56 mm x 56 mm

5 .4 Check of finished bindings

The HellermannTyton components cannot perform a check
of the finished bindings. An external monitoring system (e.g.
camera monitoring) is required for such checks.

6 Maintenance

6 .1 Important notes

Regular maintenance is essential to ensure that the
ATS3080 remains in safe working order (see the
maintenance schedule in the operating instructions for
the ATS3080).
CAUTION
Crush hazard when jaws close
f Do not insert fingers between upper and lower jaws.
f Always keep the Power pack 3080 switched off while
performing maintenance work.

6 .2 Spare parts

Spare parts and accessories can be ordered directly from
your national HellermannTyton representative
à website www.HellermannTyton.de.

6 .3 General maintenance activities

The activities involved in maintenance of the ATS3080 and
the Power pack 3080 are described in the operating
instructions for the ATS3080 (see the "Maintenance" section
in the operating instructions for the ATS3080).
f Check the ATS3080 and the accessories regularly for
proper function.
f Check electrical wiring for damage.
f Replace faulty wires immediately.
Maintenance
12
