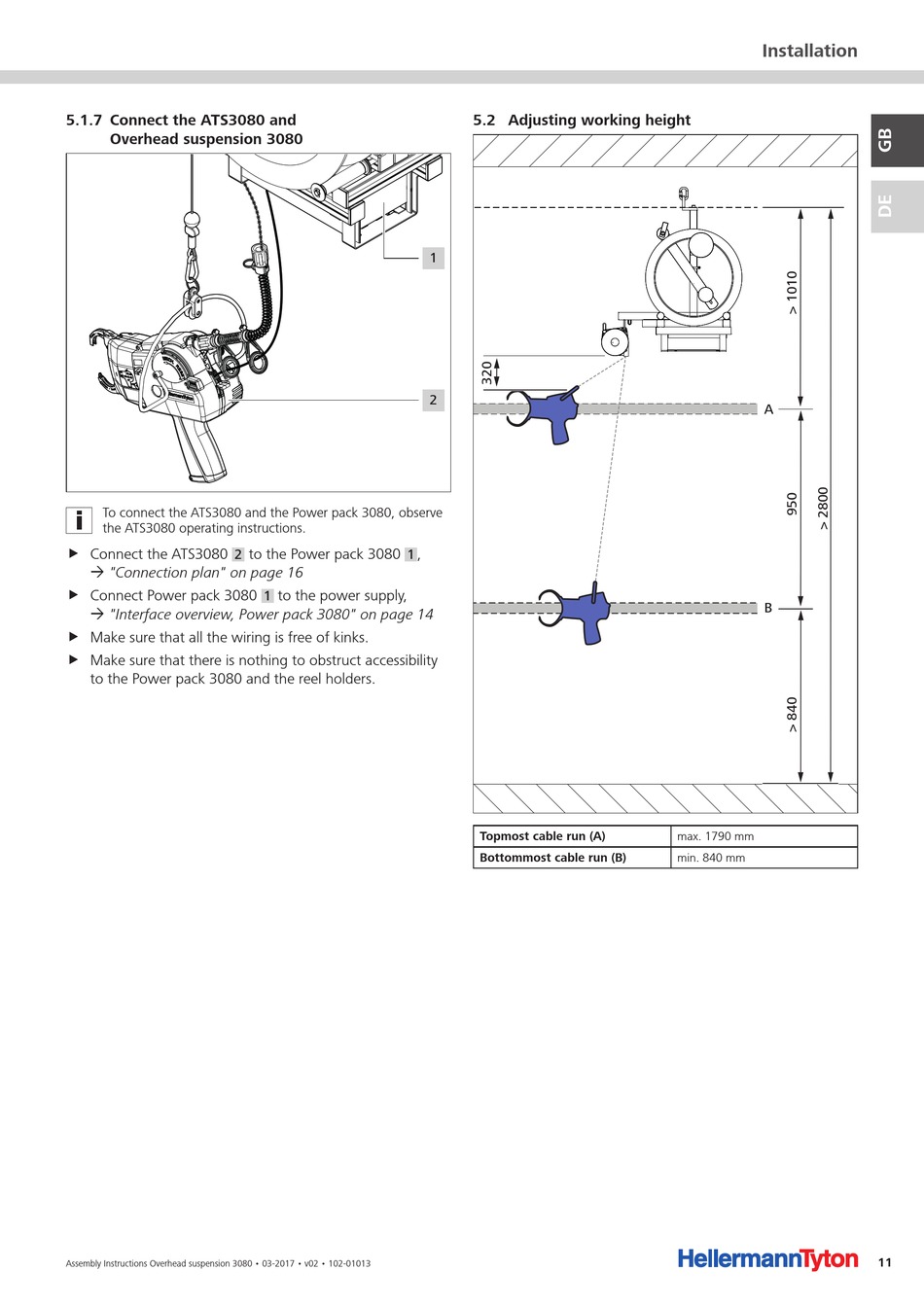

5 .1 .7 Connect the ATS3080 and
Overhead suspension 3080
To connect the ATS3080 and the Power pack 3080, observe
the ATS3080 operating instructions.
f Connect the ATS3080
2
à "Connection plan" on page 16
f Connect Power pack 3080
à "Interface overview, Power pack 3080" on page 14
f Make sure that all the wiring is free of kinks.
f Make sure that there is nothing to obstruct accessibility
to the Power pack 3080 and the reel holders.
Assembly Instructions Overhead suspension 3080 • 03-2017 • v02 • 102-01013
to the Power pack 3080 ,
1
to the power supply,
1

5 .2 Adjusting working height

1
2
Topmost cable run (A)
Bottommost cable run (B)
Installation
A
B
max. 1790 mm
min. 840 mm
11
