4.0 Hardware and MaTRx Back Installation
Installation Instructions ... cont'd

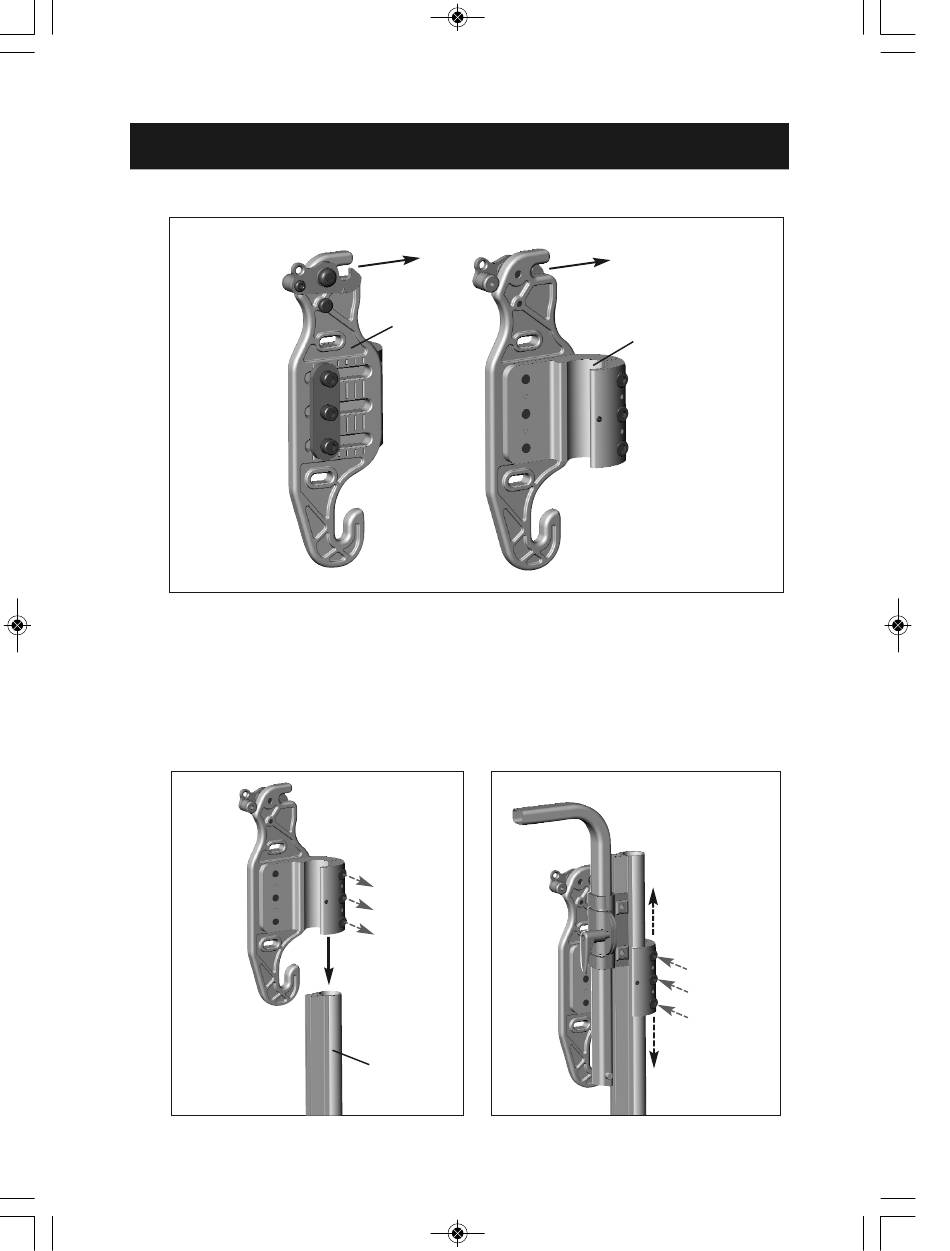

Figure 2.0 Latch opening must face the front of the wheelchair
Mounting
Mounting Clamp
Plate
Assembly
LEFT RIGHT
LEFT RIGHT
PLATE/CLAMP PLATE/CLAMP AS-
ASSEMBLY SEMBLY
3 Working on one side (back cane) at a time, loosen the screws (x3) on the ETAC
Mounting Clamp ass'y and slide the clamp assembly (incl. mounting plate) onto
the back cane. Slide the mounting clamp ass'y to the desired height and
tighten the 3 screws just enough to hold it in place. See Figure 3A/3B below.
(Note: Mounting clamps can be fully tightened after the back is installed and all
final adjustments have been made.)
Adjust to desired height
Loosen clamp hard-
and tighten clamp
ware and slide as-
hardware to hold in
sembly onto the
place
back cane
(Right Assembly
Shown)
ETAC
Back Cane
Figure 3A Figure 3B
