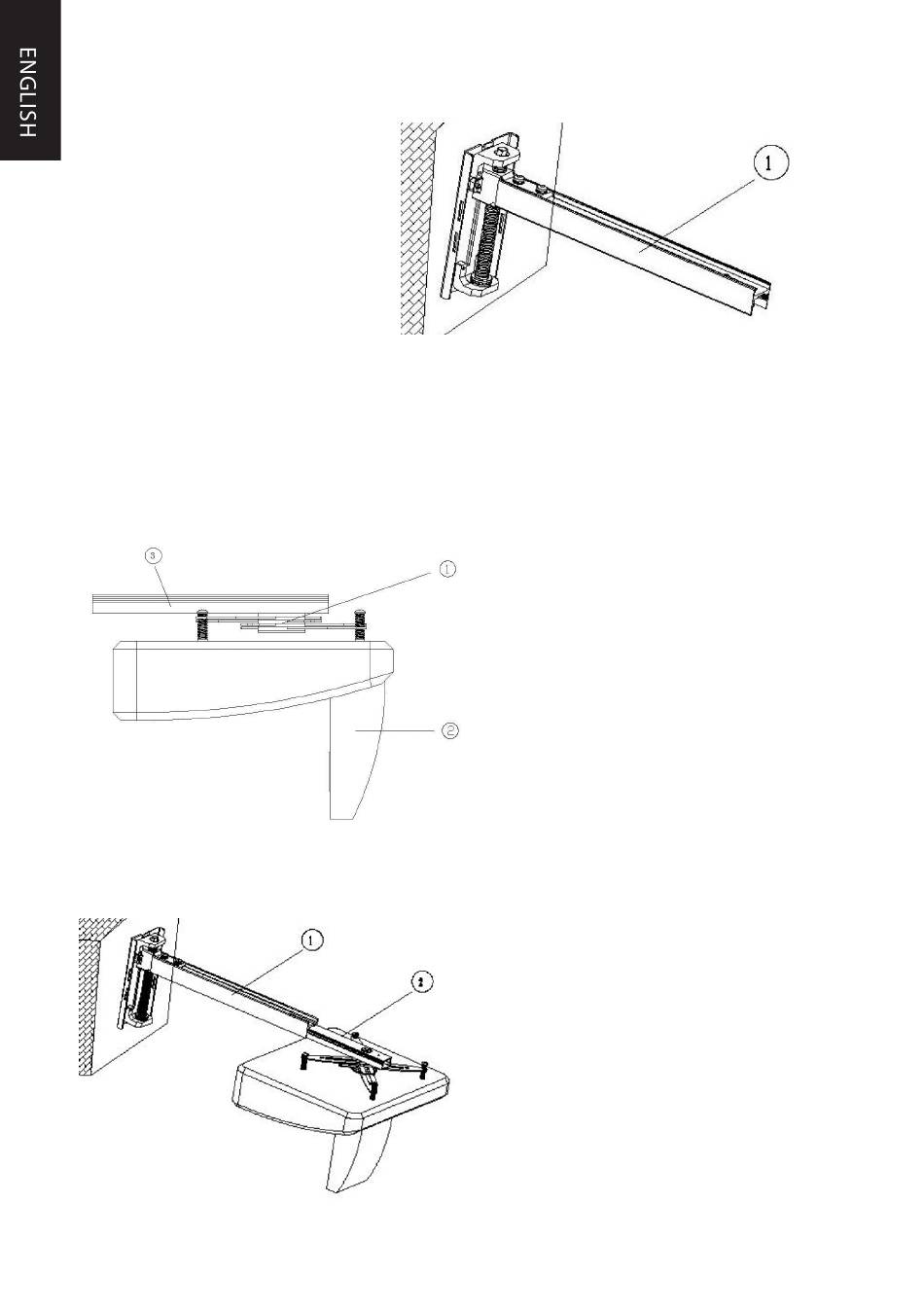

2. Fit section 1 of the boom to the
wall plate, and fix tightly using the
four pin-hex bolts included.
3. Fit the universal "spider" fitting included to the projector as shown by threading the
43mm screws included through the hollow screw already in place on each "leg" of the
spider. The Hitachi requires M6 screws, and the Sanyo requires M4. Other screw sizes
are included to cater for other projectors.
Fit the spider to section 2 of the boom as shown:
4. Take the assembled parts above and slide section 2 of the boom into section 1 as
shown below.
4
1. Section 1 of boom
1. Universal "Spider" Fitting
2. Projector
3. Section 2 of boom
If the screen/whiteboard is very small (for
example 57" diameter) you will need to
insert section 2 projector-end first so that
the projector faces away from the wall,
then turn the projector 180 degrees.
1. Section 1 of boom
2. Section 2 of boom
