INSTALLATION INSTRUCTIONS

1. Attach the wall plate to the wall using six appropriate fixtures. When you have attached
the wall plate you will have 170mm of height adjustment, but it is still important to position
it carefully. In rooms with low ceilings the height you can mount the screen/whiteboard will
be limited by the ceiling height so the bracket should be mounted as close to the ceiling as
possible. Where you have plenty of ceiling height, you should mount the screen/whiteboard
in place first to determine where the TM-UST should be positioned.
Most interactive whiteboards have side-to-side adjustment when in place, and the TM-UST
has ample up/down adjustment. Read the projector's manual for advice.
For the Hitachi CP-A range of ultra short throw projectors the wall plate should be 100mm
to the right of the centre of the whiteboard/screen as you look at the wall. The chart below
gives approximate guidelines for the distance between the bottom of the wall plate and the
top of the viewable screen surface for common screen and whiteboard sizes.
Screen Diagonal
(inches)
57
64
77
82
94
98
For the Sanyo PLC-XE50 ultra short throw projector the wall plate should be 80mm to the
left of the centre of the whiteboard/screen as you look at the wall. The chart below gives
approximate guidelines for the distance between the bottom of the wall plate and the top of
the viewable screen surface for common screen and whiteboard sizes.
Screen Diagonal
(inches)
77
80
82
94
98

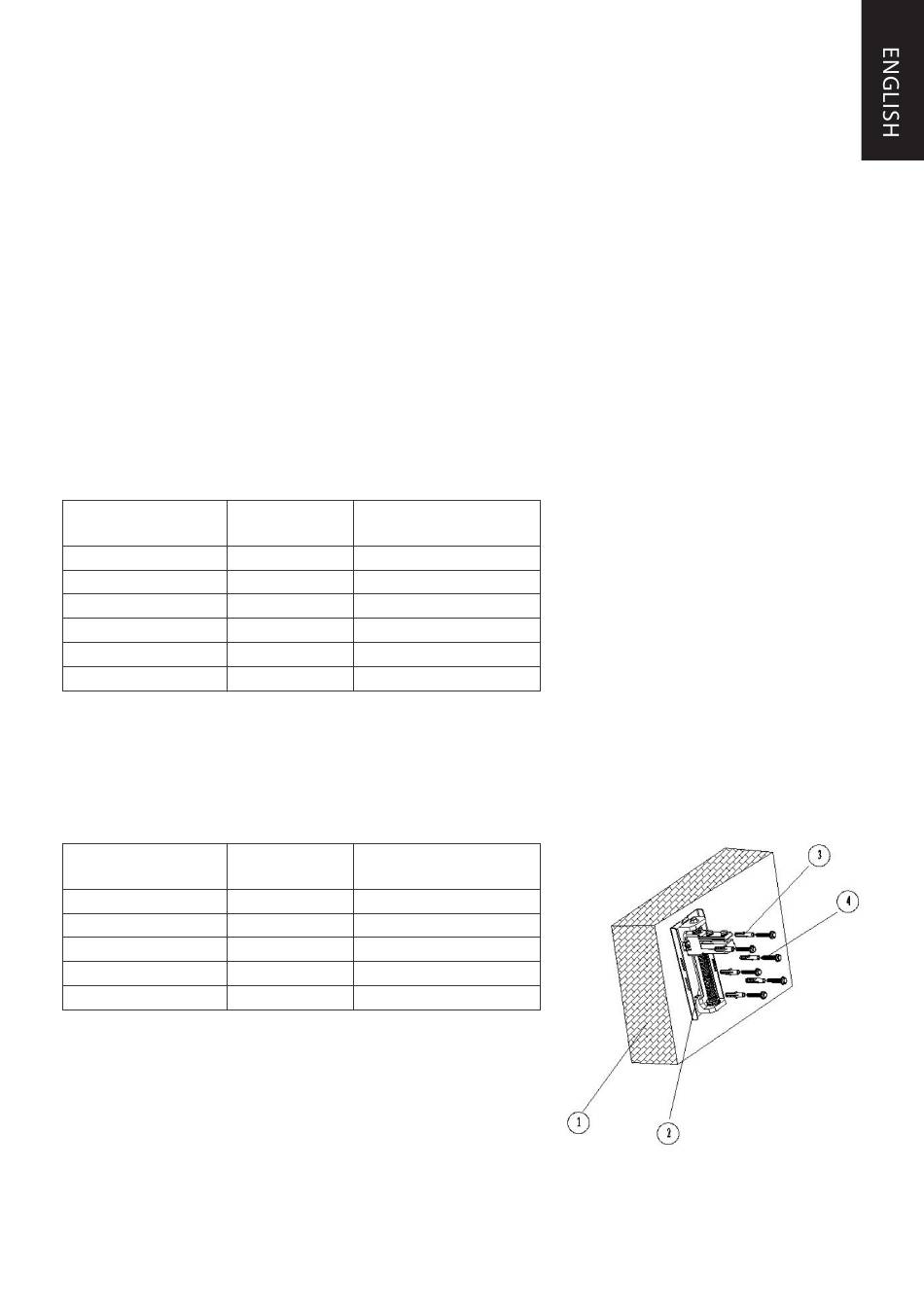

1. Wall
2. Wall plate
3. Rawl plugs
4. ST8 Bolts
Screen Width Bracket Distance
(mm)
1158
1300
1565
1666
1910
1991
Screen Width Bracket Distance
(mm)
1565
1626
1666
1910
1991
(mm)
170
190
240
290
300
320
(mm)
260
270
280
320
340
3
