EN

Intended Use

Use the sterilizable torque base to correctly assemble
and disassemble tips on the CUSA® Excel handpiece.

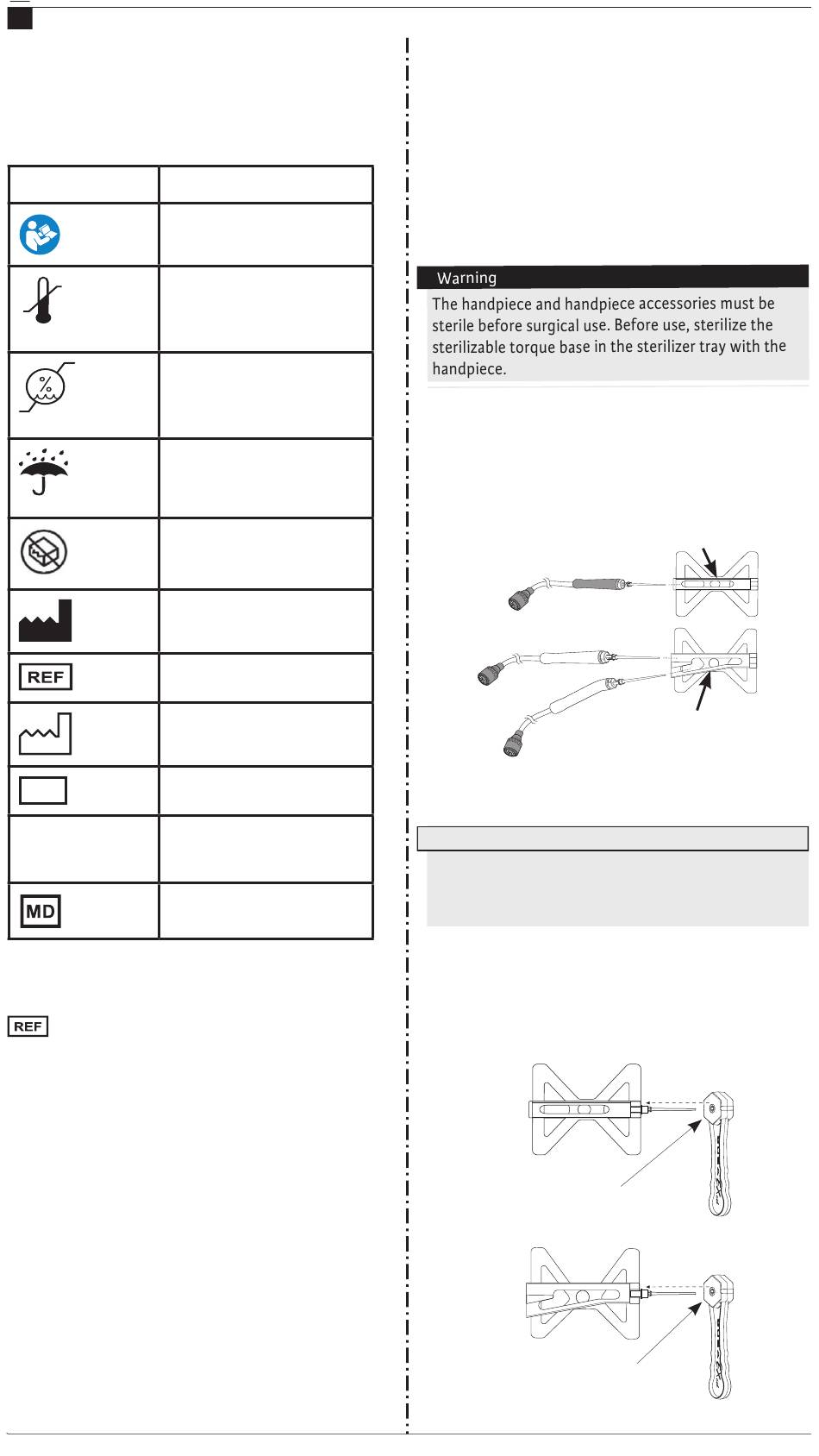

Definition of Symbols
Symbol
LOT
R O
X NLY
Types of Sterilizable Torque Bases
Two sterilizable torque bases are available:
For Use With
C5623 All 23 kHz sterile tips
C2600 23 kHz straight
handpiece
C2601 23 kHz
angled handpiece
C5601 sterile wrench
C5636 All 36 kHz sterile tips
C2602 36kHz handpiece
C5602 sterile wrench
Sterilization Information
Supplied nonsterile. Steam sterilize before use.
Refer to the CUSA Excel System User's Guide for
the steam sterilization parameters.
2
Definition
Mandatory Action: Read
instructions before use.
Operating Temperature: +10°C
to +35°C
Transport & Storage Temperature:
-34°C to +65°C
Operating Humidity: +15% to
+80%
Transport & Storage Humidity:
+25% to +85%
Keep Dry.
Do not use if package is damaged.
Manufacturer.
Catalogue Number.
Date of Manufacture.
Batch Code.
Caution: Federal (USA) law
restricts this device to sale by or
on the order of a physician.
Medical Device
Color
green support
blue support
Tip Assembly Using Sterilizable Torque
Base
Refer to the CUSA Excel System User's Guide and
the Tip IFU for complete handpiece assembly and
disassembly instructions.
For this procedure, use the sterile, disposable
torque wrench (C5601 for 23 kHz or C5602 for
36 kHz) with the sterilizable torque base (C5623
for 23 kHz or C5636 for 36 kHz).
1. Locate the sterilized torque base in which the
handpiece support color matches the color
on the handpiece connector (23 kHz — green;
36 kHz — blue). Put the handpiece in the
torque base so that the metal connecting body
fits snugly in the metal slot at the end of the
support.
2. Hold the handpiece securely in place in the
torque base.
Notice
To avoid product damage, NEVER hold the handpiece
in your hand while using the torque wrench to tighten
or loosen the tip.
3.
Match the colored ring on the sterile torque wrench
with the handpiece connector color or handpiece
support color on the torque base. Slide the color
coded side of the wrench over the tip, being careful
not to damage the tip, until the hex in the wrench
engages the hex of the tip.
Blue ring on head
of 36 kHz wrench
Green ring on head
of 23 kHz wrench
Handpiece Support
Handpiece Support
