Wärmepumpenmanager
 














































L23

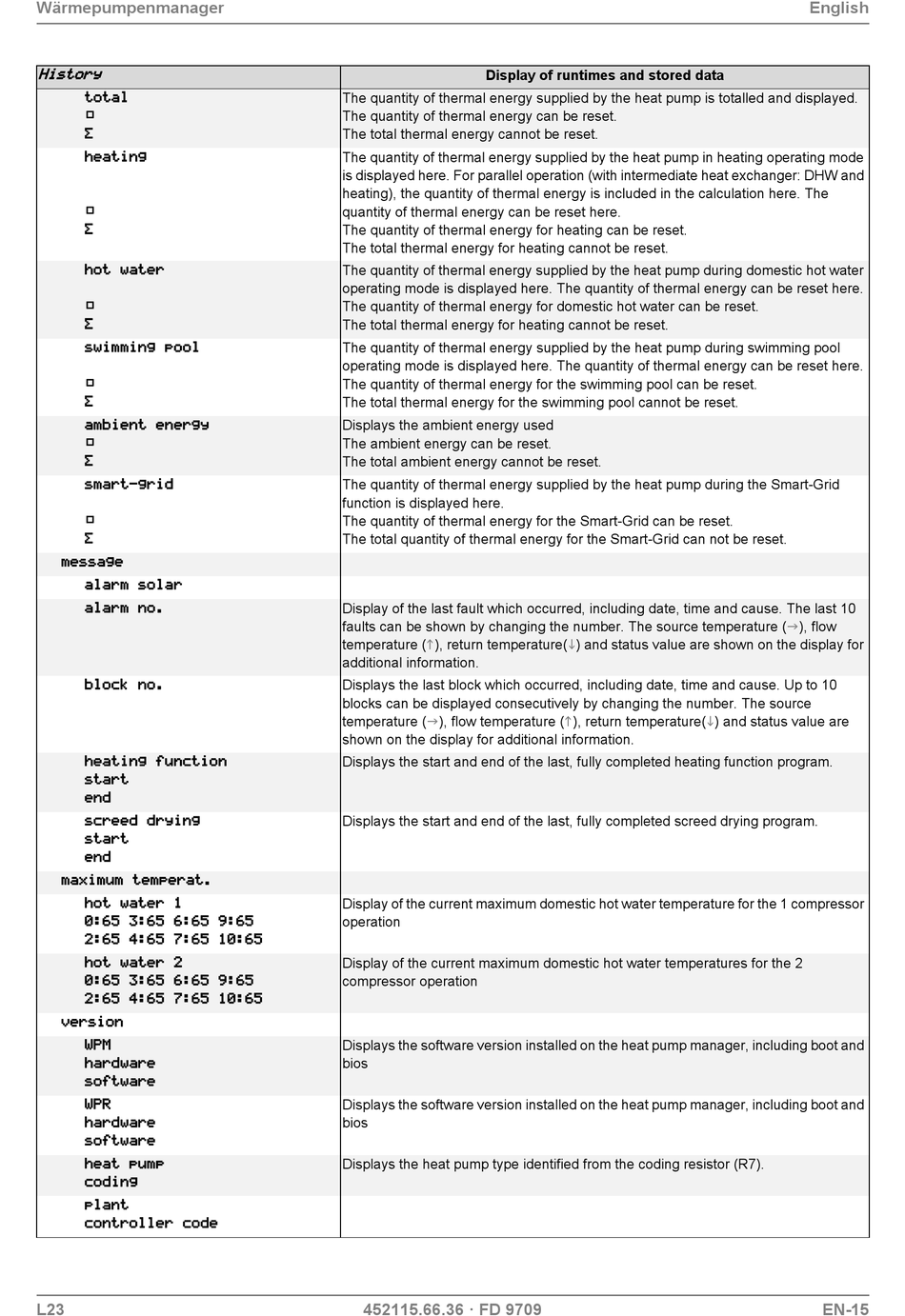

Display of runtimes and stored data
The quantity of thermal energy supplied by the heat pump is totalled and displayed.
The quantity of thermal energy can be reset.
The total thermal energy cannot be reset.
The quantity of thermal energy supplied by the heat pump in heating operating mode
is displayed here. For parallel operation (with intermediate heat exchanger: DHW and
heating), the quantity of thermal energy is included in the calculation here. The
quantity of thermal energy can be reset here.
The quantity of thermal energy for heating can be reset.
The total thermal energy for heating cannot be reset.
The quantity of thermal energy supplied by the heat pump during domestic hot water
operating mode is displayed here. The quantity of thermal energy can be reset here.
The quantity of thermal energy for domestic hot water can be reset.
The total thermal energy for heating cannot be reset.
The quantity of thermal energy supplied by the heat pump during swimming pool
operating mode is displayed here. The quantity of thermal energy can be reset here.
The quantity of thermal energy for the swimming pool can be reset.
The total thermal energy for the swimming pool cannot be reset.
Displays the ambient energy used
The ambient energy can be reset.
The total ambient energy cannot be reset.
The quantity of thermal energy supplied by the heat pump during the Smart-Grid
function is displayed here.
The quantity of thermal energy for the Smart-Grid can be reset.
The total quantity of thermal energy for the Smart-Grid can not be reset.
Display of the last fault which occurred, including date, time and cause. The last 10
faults can be shown by changing the number. The source temperature (), flow
temperature (), return temperature() and status value are shown on the display for
additional information.
Displays the last block which occurred, including date, time and cause. Up to 10
blocks can be displayed consecutively by changing the number. The source
temperature (), flow temperature (), return temperature() and status value are
shown on the display for additional information.
Displays the start and end of the last, fully completed heating function program.
Displays the start and end of the last, fully completed screed drying program.
Display of the current maximum domestic hot water temperature for the 1 compressor
operation
Display of the current maximum domestic hot water temperatures for the 2
compressor operation
Displays the software version installed on the heat pump manager, including boot and
bios
Displays the software version installed on the heat pump manager, including boot and
bios
Displays the heat pump type identified from the coding resistor (R7).
