Wärmepumpenmanager








































NOTE
Heating request
A heating request is present if the "Return set temperature" minus the
"Hysteresis return set temperature" is higher than the current measured
"Return temperature".
L23

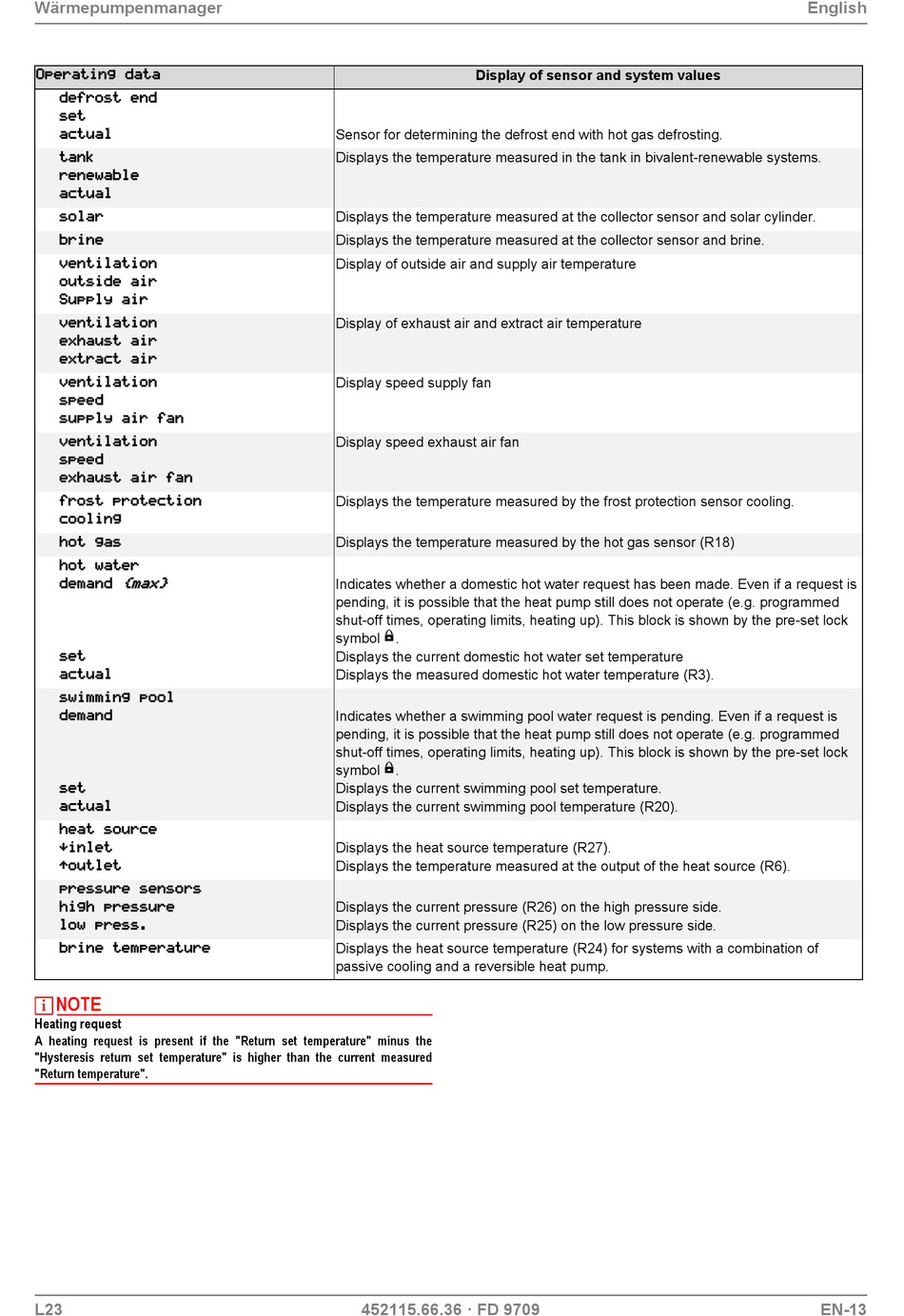

Display of sensor and system values
Sensor for determining the defrost end with hot gas defrosting.
Displays the temperature measured in the tank in bivalent-renewable systems.
Displays the temperature measured at the collector sensor and solar cylinder.
Displays the temperature measured at the collector sensor and brine.
Display of outside air and supply air temperature
Display of exhaust air and extract air temperature
Display speed supply fan
Display speed exhaust air fan
Displays the temperature measured by the frost protection sensor cooling.
Displays the temperature measured by the hot gas sensor (R18)
Indicates whether a domestic hot water request has been made. Even if a request is
pending, it is possible that the heat pump still does not operate (e.g. programmed
shut-off times, operating limits, heating up). This block is shown by the pre-set lock

symbol .
Displays the current domestic hot water set temperature
Displays the measured domestic hot water temperature (R3).
Indicates whether a swimming pool water request is pending. Even if a request is
pending, it is possible that the heat pump still does not operate (e.g. programmed
shut-off times, operating limits, heating up). This block is shown by the pre-set lock

symbol .
Displays the current swimming pool set temperature.
Displays the current swimming pool temperature (R20).
Displays the heat source temperature (R27).
Displays the temperature measured at the output of the heat source (R6).
Displays the current pressure (R26) on the high pressure side.
Displays the current pressure (R25) on the low pressure side.
Displays the heat source temperature (R24) for systems with a combination of
passive cooling and a reversible heat pump.
