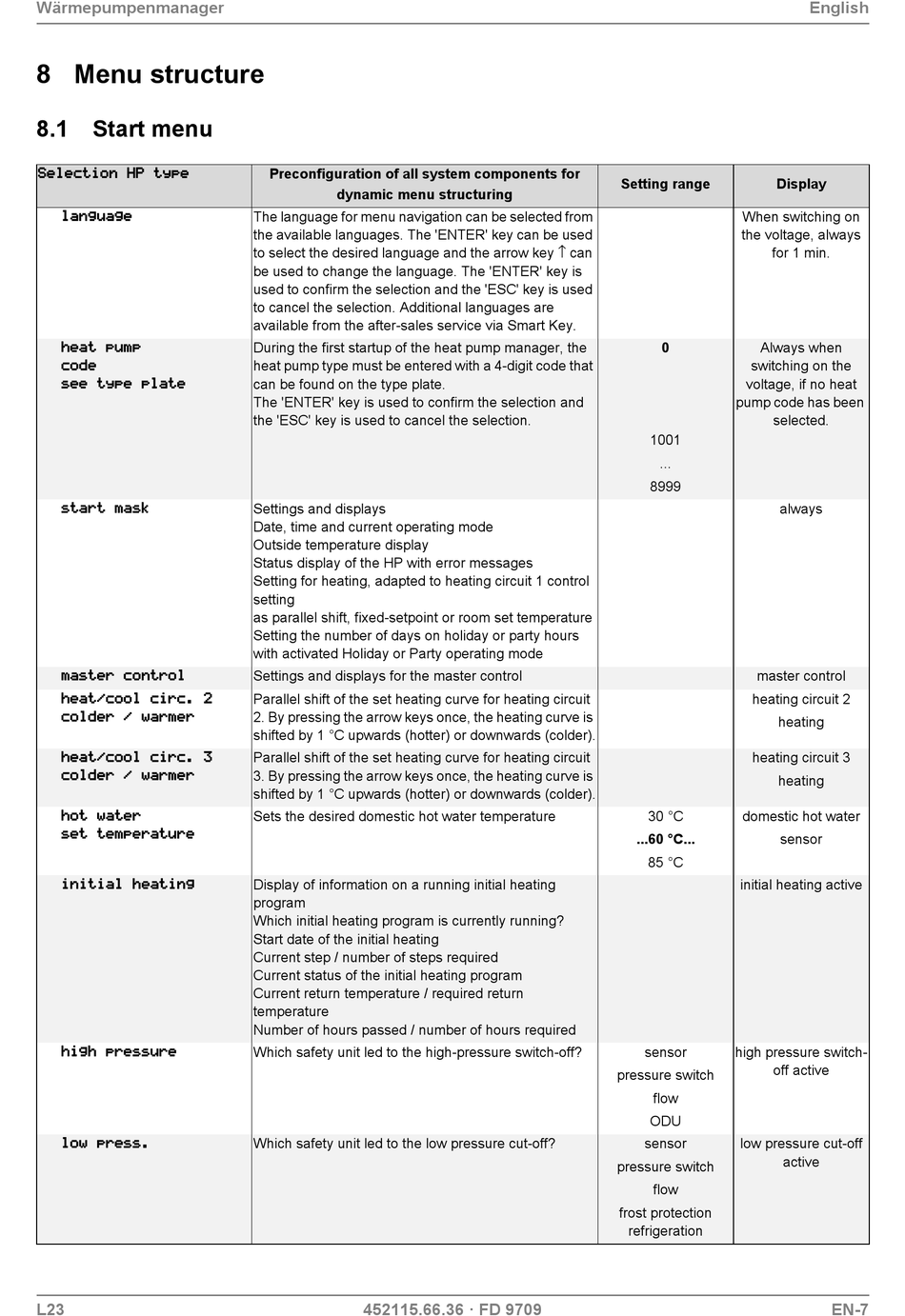

8 Menu structure

8.1 Start menu

















L23
Preconfiguration of all system components for
dynamic menu structuring
The language for menu navigation can be selected from
the available languages. The 'ENTER' key can be used
to select the desired language and the arrow key ↑ can
be used to change the language. The 'ENTER' key is
used to confirm the selection and the 'ESC' key is used
to cancel the selection. Additional languages are
available from the after-sales service via Smart Key.
During the first startup of the heat pump manager, the
heat pump type must be entered with a 4-digit code that
can be found on the type plate.
The 'ENTER' key is used to confirm the selection and
the 'ESC' key is used to cancel the selection.
Settings and displays
Date, time and current operating mode
Outside temperature display
Status display of the HP with error messages
Setting for heating, adapted to heating circuit 1 control
setting
as parallel shift, fixed-setpoint or room set temperature
Setting the number of days on holiday or party hours
with activated Holiday or Party operating mode
Settings and displays for the master control
Parallel shift of the set heating curve for heating circuit
2. By pressing the arrow keys once, the heating curve is
shifted by 1 °C upwards (hotter) or downwards (colder).
Parallel shift of the set heating curve for heating circuit
3. By pressing the arrow keys once, the heating curve is
shifted by 1 °C upwards (hotter) or downwards (colder).
Sets the desired domestic hot water temperature
Display of information on a running initial heating
program
Which initial heating program is currently running?
Start date of the initial heating
Current step / number of steps required
Current status of the initial heating program
Current return temperature / required return
temperature
Number of hours passed / number of hours required
Which safety unit led to the high-pressure switch-off?
Which safety unit led to the low pressure cut-off?
