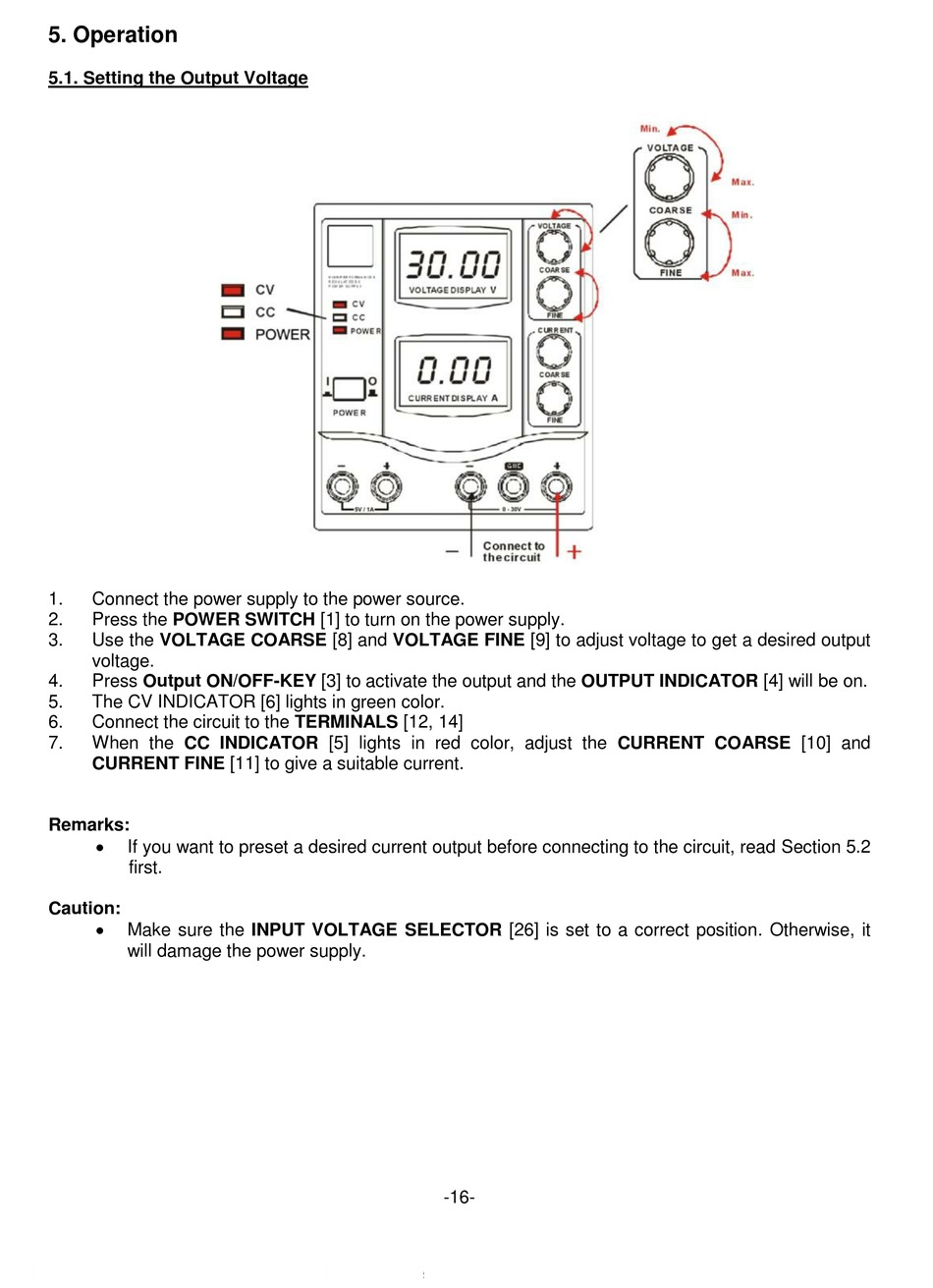

5. Operation

5.1. Setting the Output Voltage
1. Connect the power supply to the power source.
2. Press the POWER SWITCH [1] to turn on the power supply.
3. Use the VOLTAGE COARSE [8] and VOLTAGE FINE [9] to adjust voltage to get a desired output
voltage.
4. Press Output ON/OFF-KEY [3] to activate the output and the OUTPUT INDICATOR [4] will be on.
5. The CV INDICATOR [6] lights in green color.
6. Connect the circuit to the TERMINALS [12, 14]
7. When the CC INDICATOR [5] lights in red color, adjust the CURRENT COARSE [10] and
CURRENT FINE [11] to give a suitable current.
Remarks:

If you want to preset a desired current output before connecting to the circuit, read Section 5.2
first.
Caution:

Make sure the INPUT VOLTAGE SELECTOR [26] is set to a correct position. Otherwise, it
will damage the power supply.
