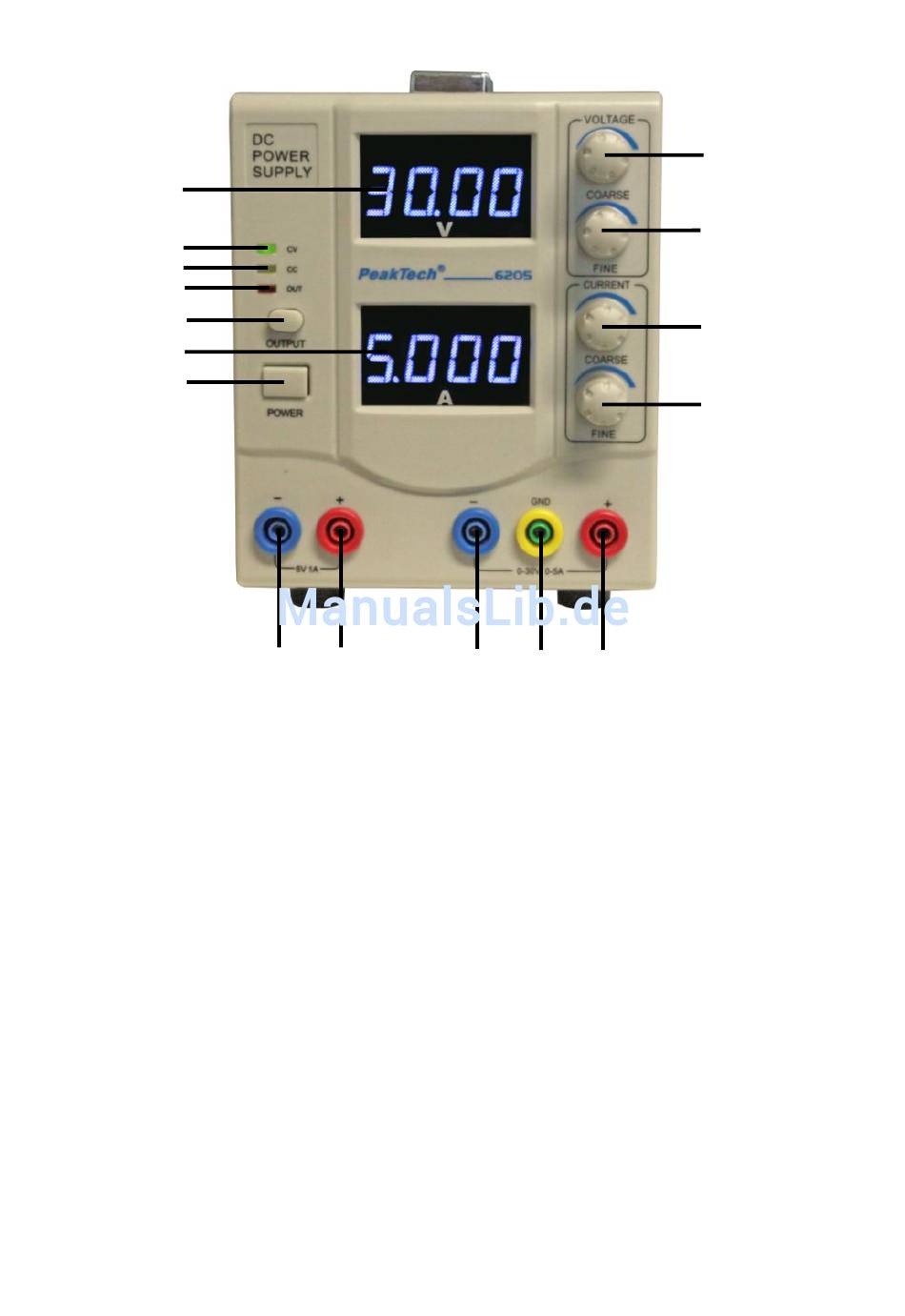

3. Controls and description
7
6
5
4
3
2
1
0
1. Power-Switch
2. CURRENT DISPLAY
3. Output ON/OFF-KEY: After power ON, the power supply will be at protection state (no voltage
output at all terminals and OUTPUT indicator [4] is OFF). When the OUTPUT-ON/OFF key is
pressed, all terminals will output the voltage as indicated on the voltage display panel and the
OUTPUT indicator [4] is ON. Press the key again to cut off the output.
4. OUTPUT INDICATOR
5. CC - INDICATOR (CONSTANT VOLTAGE)
6. CV - INDICATOR (CONSTANT CURRENT)
7. VOLTAGE DISPLAY
8. Voltage adjustment (COARSE)
9. Voltage adjustment (FINE)
10. Current adjustment (COARSE)
11. Current adjustment (FINE)
12. "+"TERMINAL: Positive terminal of 0-30 V adjustable output.
13. "-"TERMINAL: Negative terminal of 0-30 V adjustable output.
14. GND TERMINAL: This terminal is connecting to the casing and the Earth.
15. "+" output terminal: Positive terminal of the 5 V fixed voltage output
16. "-" output terminal: Negative terminal of the 5 V fixed voltage output
