Mounting rules
4.1.2 Wire pull-off
4.1.3 Safety
 TR-Electronic GmbH 2022, All Rights Reserved
Page 36 of 40 TR-ECE-BA-DGB-0170 v00

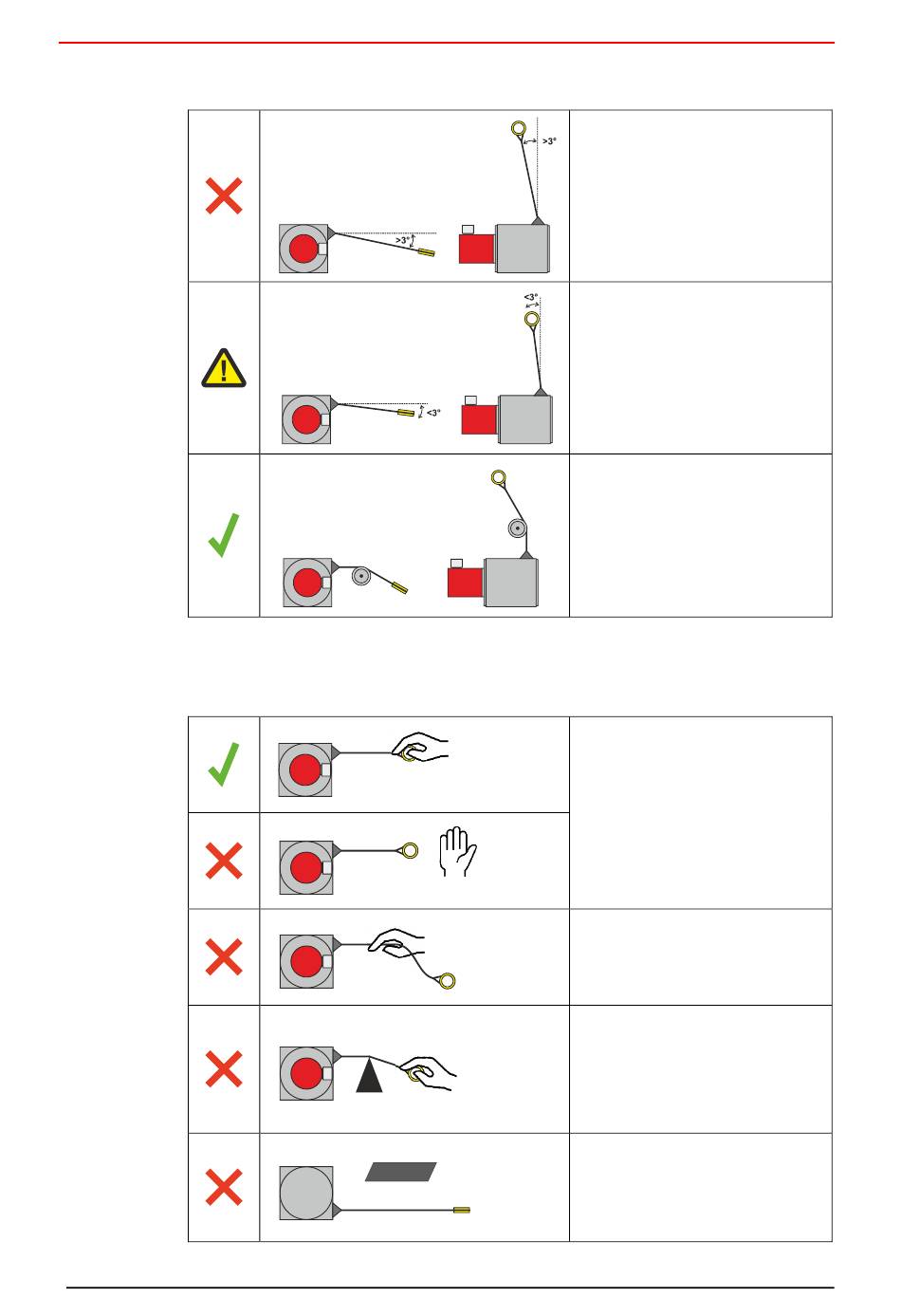

A trigger angle of more than 3°
leads to malfunctions and
significant wearing!
A trigger angle of up to 3° is
tolerable, but may reduce
service life.
A straight wire pull-off is optimal.
This can be realized with a
guide pulley.
The measuring wire must never
retract by itself!
Letting go of the tensioned
measuring wire can lead to
destruction of the measuring
system and risk of injury!
Do not pull directly on the
measuring wire! This may cause
kinks and obstruct the wire.
The measuring wire must not be
guided over edges!
The individual wires of the
measuring wire can be
damaged.
Protect the measuring wire from
falling objects.
If necessary, a cover must be
provided.
