EN – Quick installation instructions 9

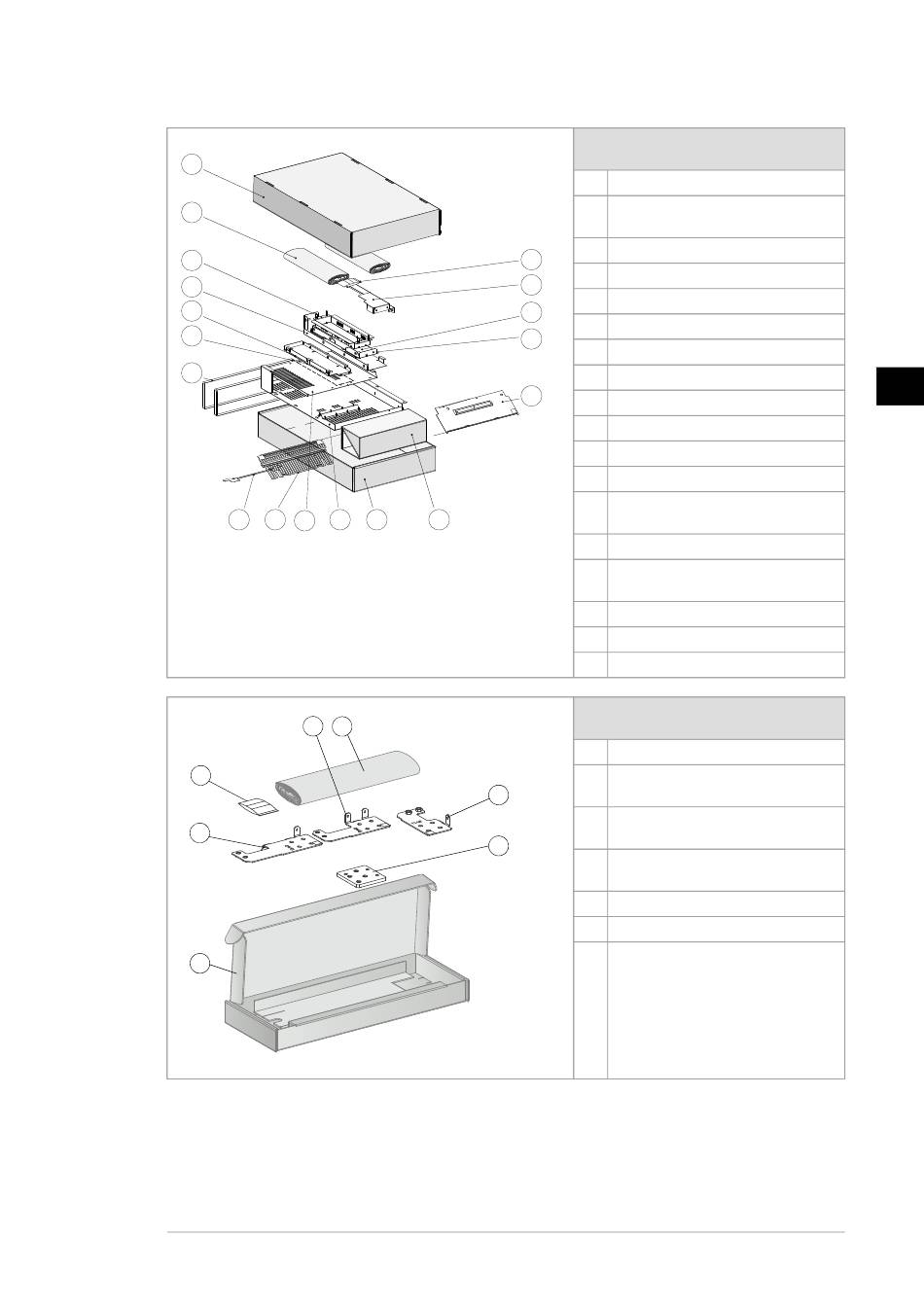

Box B1 contents (standard drive module
configuration)
1 Paper fill
2 Clear plastic shroud for output
power cabling
3 Mounting bracket for bottom grille
4 Cardboard box bottom
5 Cardboard box cover
6 Bottom grille
7 Support
8 Straps
9 Screws in a plastic bag
10 Back clear plastic shroud (upper)
11 Back clear plastic shroud (lower)
12 Front clear plastic shroud
13 Clear plastic shroud for input power
cabling
14 Top clear plastic shroud
15 Entry clear plastic shroud for side
input cabling
16 Clear plastic bottom shroud 1
17 Clear plastic bottom shroud 2
18 Metallic shroud
Box B2 contains this box with standard
drive module configuration
1 Paper fill
2 Output cable connection terminal
T3/W2
3 Output cable connection terminal
T2/V2
4 Output cable connection terminal
T1/U2
5 Grounding terminal
6 Cardboard box
7 Screws and insulators in a plastic
bag
