Measure the insulation resistance of the input and motor
cables and the motor
See figure H.
Before you connect the input power cable to the drive, measure its insulation resistance
according to local regulations.
Ground the motor cable shield at the motor end. For minimal interference, make a
360° grounding at the cable entry, or keep the pig tail short.

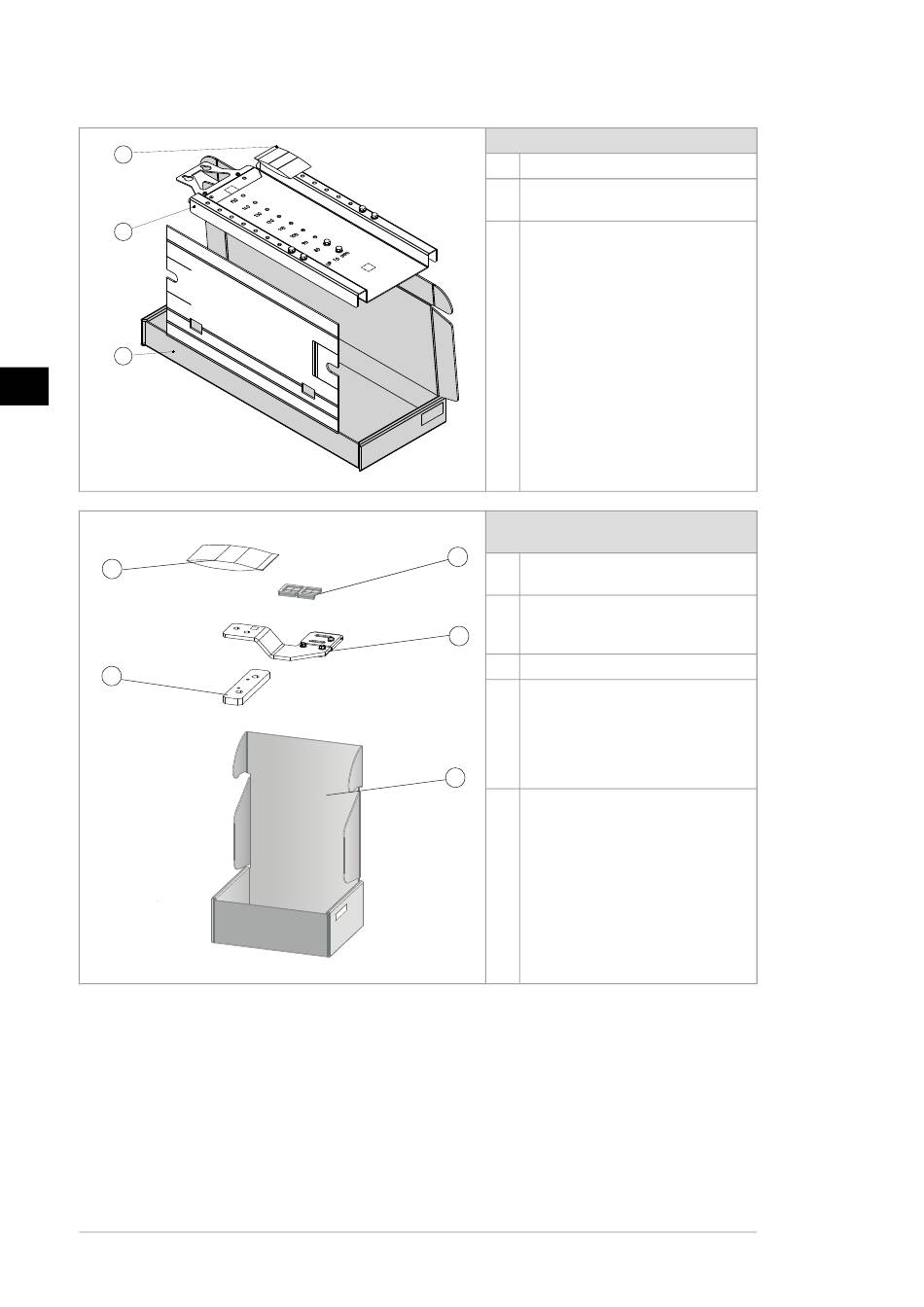

Ramp box contents
1 Screw package
2 Telescopic extraction and insertion
ramp
3 Cardboard box
3AXD50000452965
Accessory box contents: Assembly kit
3AXD50000453900
2
1 Screw package, includes also
spacers for FSO module installation
2 Rubber grommets for control unit
cable entry holes in the middle front
3
cover of the drive module
3 Fastener for Rittal VX25 enclosure
4 Bracket for attaching the drive
module from top
(3AUA0000096082). The bracket
brings a gap for cooling air flow and
prevents the drive module screws
5 from chafing the plate.
5 Cardboard box
3AXD50000453894
