SPORTSTECH HGX200 Bedienungsanleitung Seite 54

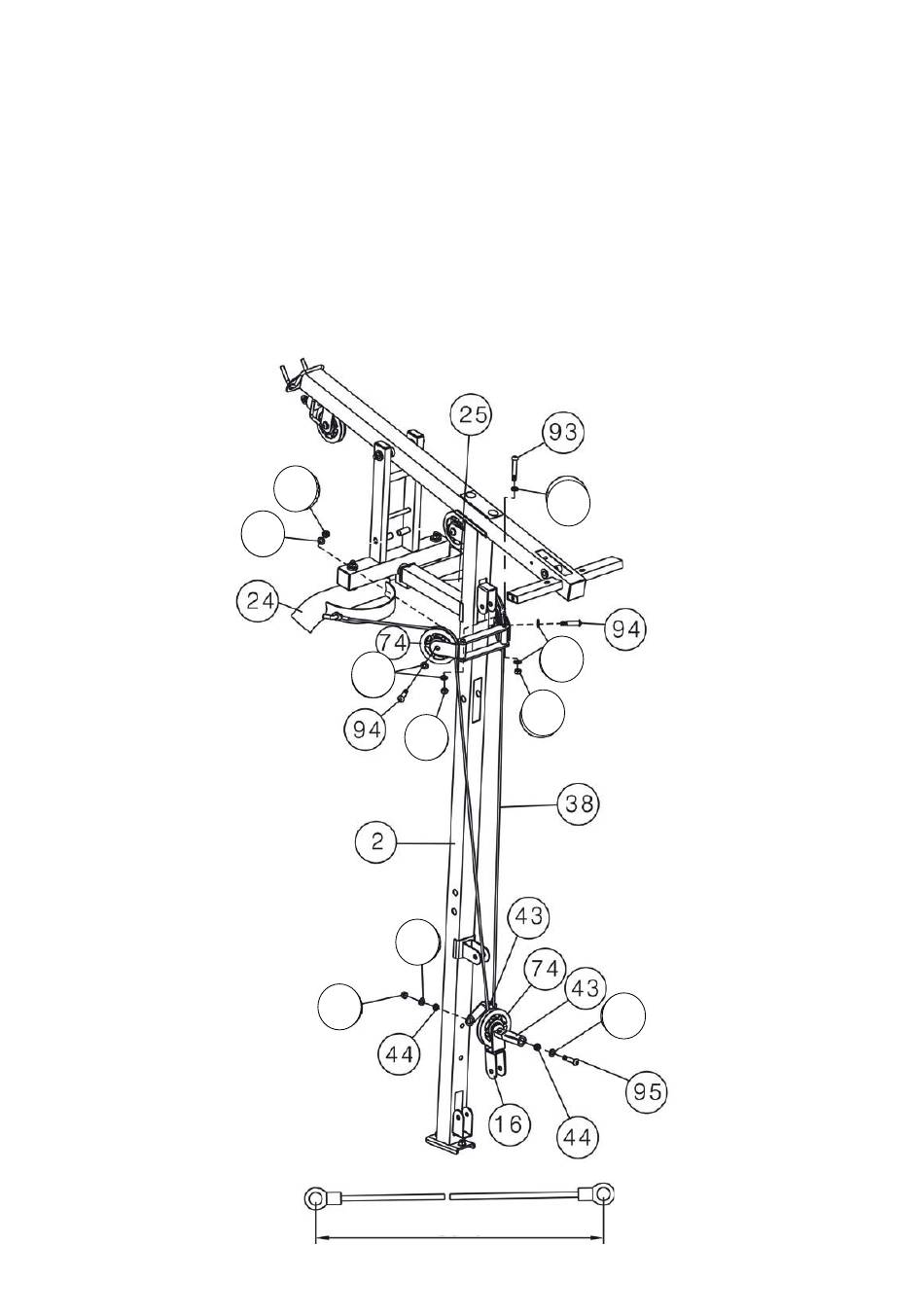

STEP 16
A Attach the end of the 3030 MM butterfly cable(38#) to the hook .
B. Attach the 2pcs swivel pulley bracket(15#) as the diagram shows and secureit with 1 pc M10×65mmallen bolt
(#93),2pcs Ø10 washer (105#), 1 pc M10 aircraft nut (103#).
C. place the pulley below the cable , Secure the pulley to the swivel pulley bracket with 1PC M10X45 Allen bolt
(94#),2pcs Ø10 washer (105#) and 1pcM10 Aircraft nut (103#).
D Draw the cable around the pulley and downwards ,Place 1pc pulley (74#) onto the cable , Secure the pulley with
cross double floating pulley bracket(16#) together with the 1pcM10×50 Allen bolt (95#),2pcs Ø10 washer(105#),2pcs
cable retainer(43#) and 1 pc M10 aircraft nut(103#).
E Draw the cable around the pulley and upwards, Install another pulley with the same way in above B and A.
103
105
105
105
105
103
103
105
103
105
3030
