Installation instructions, only for experts

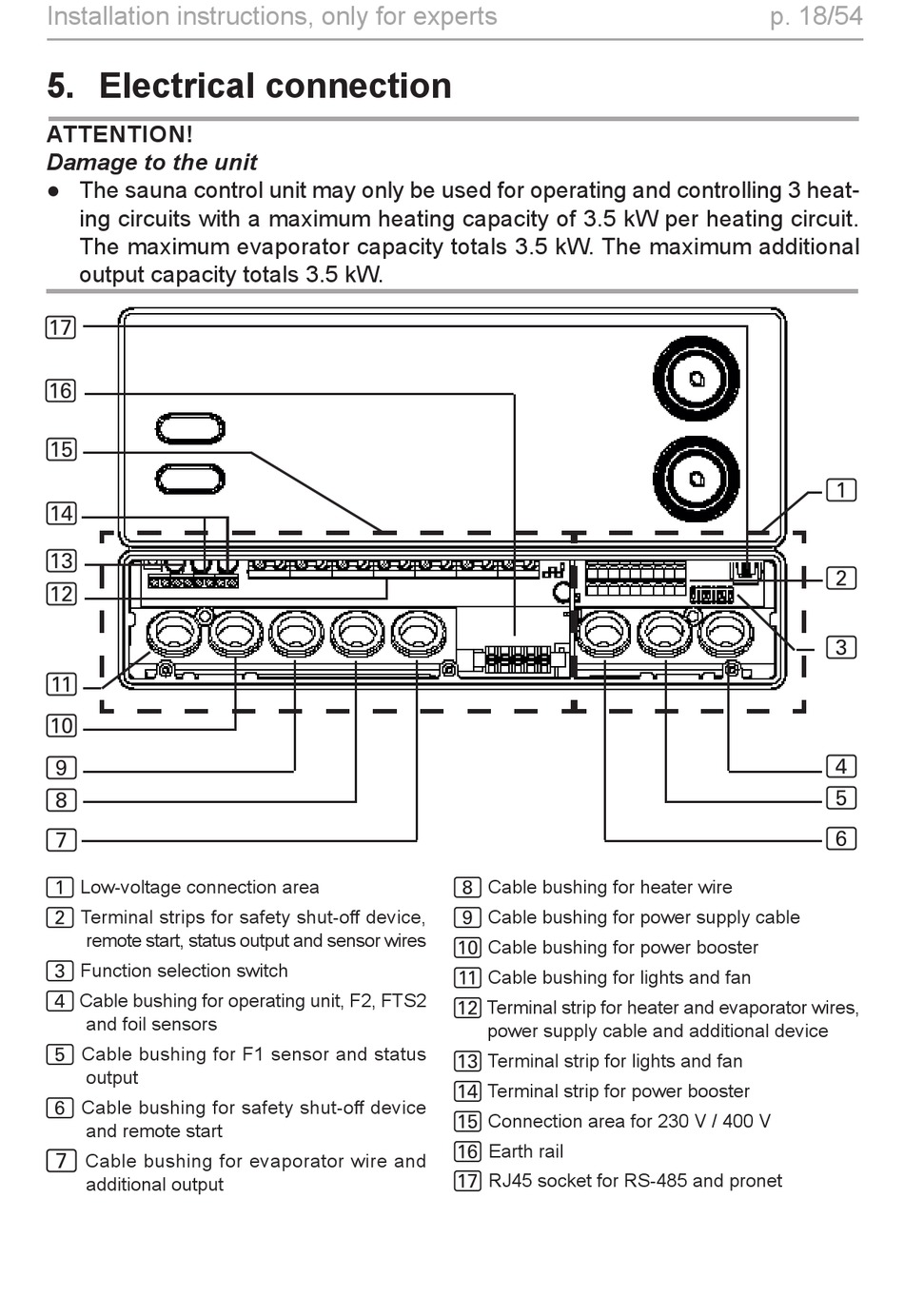

5. Electrical connection

ATTENTION!
Damage to the unit
● The sauna control unit may only be used for operating and controlling 3 heat-
ing circuits with a maximum heating capacity of 3.5 kW per heating circuit.
The maximum evaporator capacity totals 3.5 kW. The maximum additional
output capacity totals 3.5 kW.
h
g
f
e
d
c
b
a
9
8
7
Low-voltage connection area
1
Terminal strips for safety shut-off device,
2
remote start, status output and sensor wires
Function selection switch
3
Cable bushing for operating unit, F2, FTS2
4
and foil sensors
Cable bushing for F1 sensor and status
5
output
Cable bushing for safety shut-off device
6
and remote start
Cable bushing for evaporator wire and
7
additional output
Cable bushing for heater wire
8
Cable bushing for power supply cable
9
Cable bushing for power booster
a
Cable bushing for lights and fan
b
Terminal strip for heater and evaporator wires,
c
power supply cable and additional device
Terminal strip for lights and fan
d
Terminal strip for power booster
e
Connection area for 230 V / 400 V
f
Earth rail
g
RJ45 socket for RS-485 and pronet
h
p. 18/54
