2. Plug the compatible SFP transceiver into the SFP port.
3. Connect a fiber optic cable to the fiber transceiver. Then connect the other end of the cable to
another fiber device.

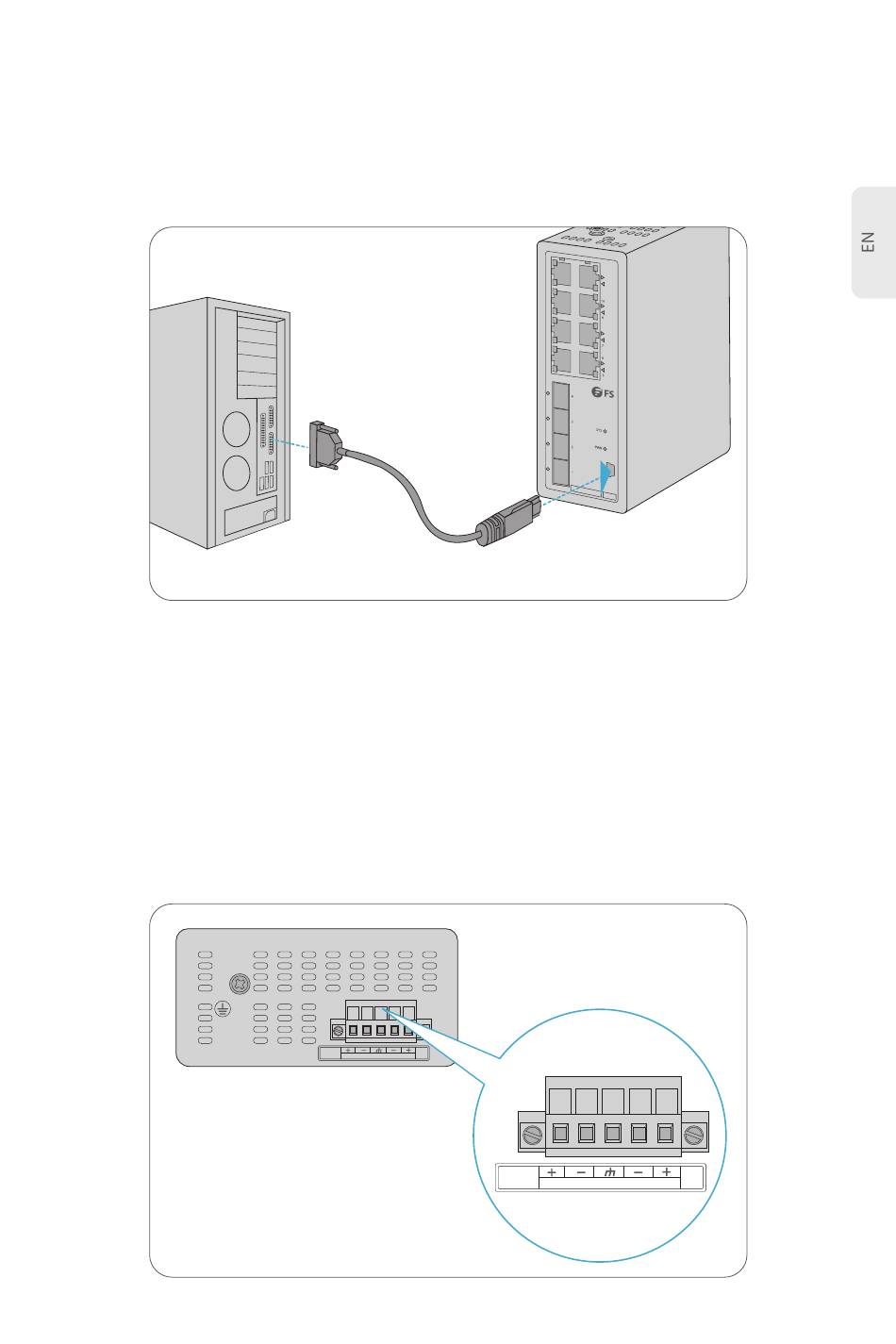

Connecting the Console (CLI) Port
1. Insert the RJ45 connector into the RJ45 console port on the front of the switch.
2. Connect the DB9 female connector of the console cable to the serial port on the computer.

Connecting the Power

The upper panel of the switch indicates a DC inlet power socket and consists of one terminal block
connector within 5 contacts. Please follow the steps below to insert the power wire.
48-57V DC
PWR1 PWR2
12
11
8
CL I
IE S3 10
0- 8T 4F
-P
Po E+
48-57V
PWR1 PWR2
DC
7
