Upper Panel - FS IES3100-8T4F-P Schnellstartanleitung

LEDs
PWR
SYS
RJ45
SFP

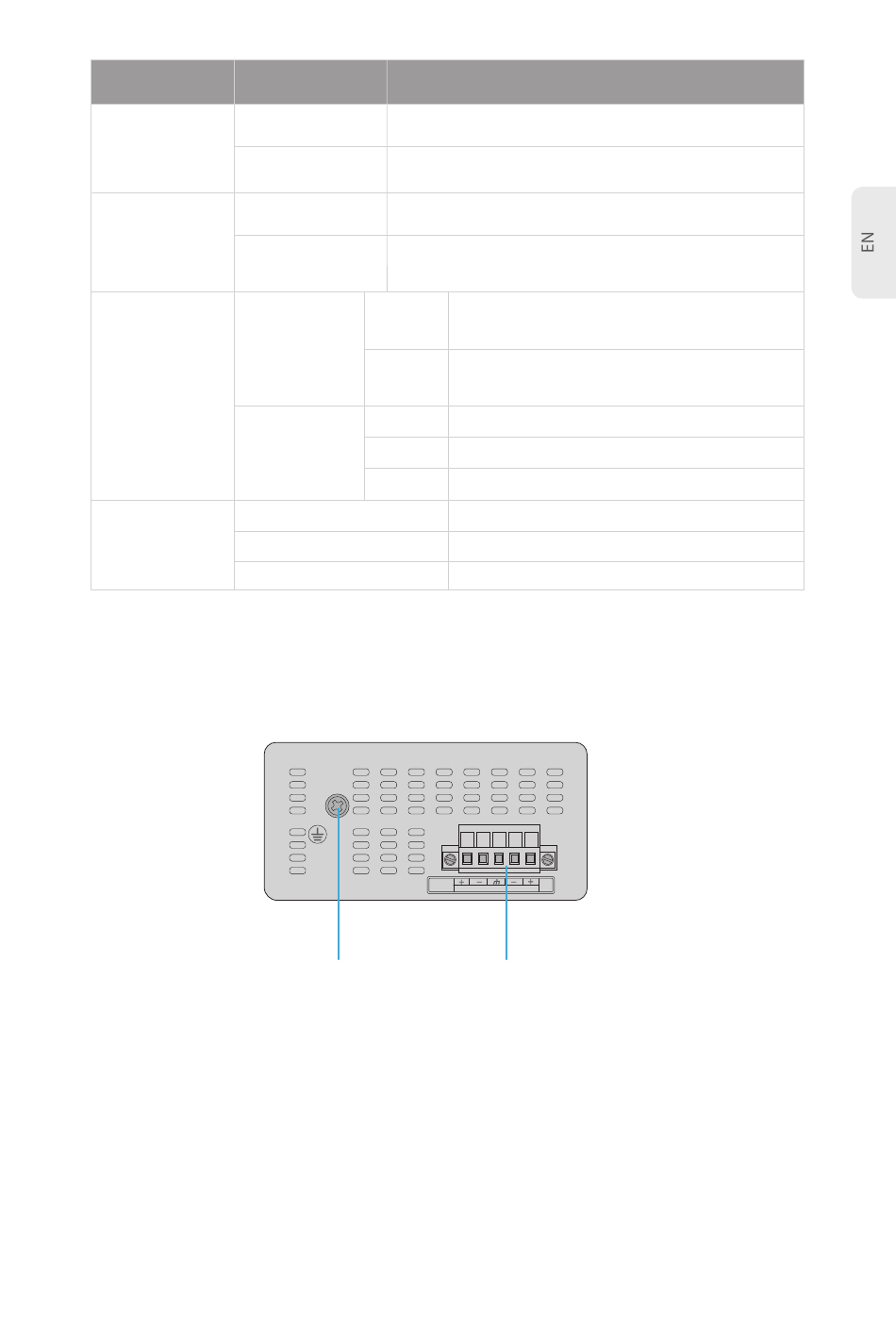

Upper Panel

State Description
On Power is being supplied to power input.
Off Power is not being supplied to power input.
Blinking The system is ready for operation.
No supply voltage or the system is not ready for
Off
operation.
On
Yellow. PoE
Off
On
Green: Link/Act Blinking
Off
On
Blinking
Off
Grounding Point
A PoE terminal device is connected and
receiving power via PoE.
No PoE port is available or power over
Ethernet function is disabled.
The port is linked.
The port is transmitting the data.
The port is not linked.
The port is linked.
The port is transmitting the data.
The port is not linked.
48-57V DC
PWR1 PWR2
Terminal Block Connector
3
