Back Panel; Installation Requirements - FS IES3100-8T4F-P Schnellstartanleitung

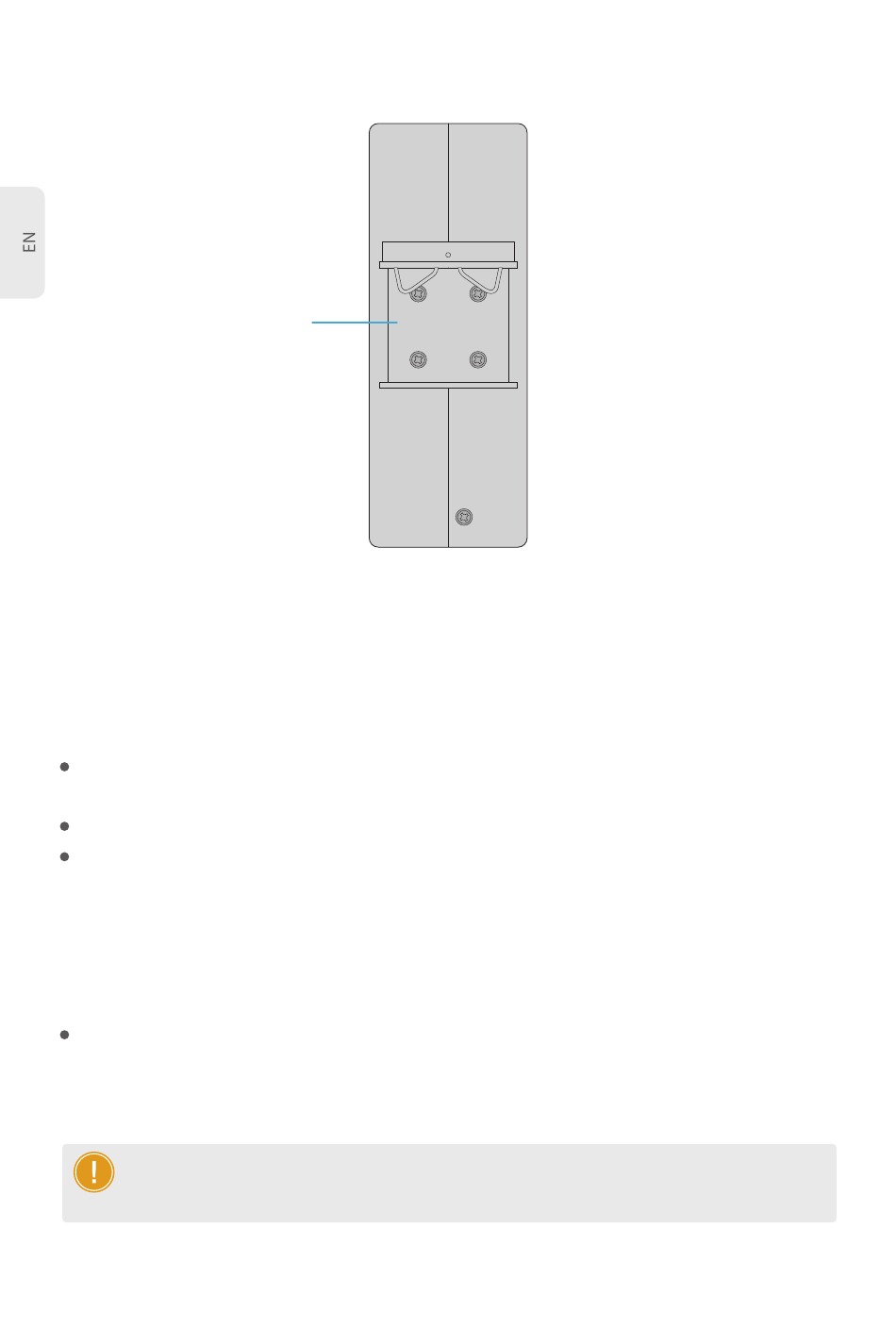

Back Panel

DIN Rail Mounting Clip

Installation Requirements

Before you begin the installation, make sure that you have the following:
Workstations running Windows XP/2003/2008/Vista/7/8/10, MAC OS X or later, Linux, UNIX, or
other platforms compatible with TCP/IP protocols.
Workstations are installed with Ethernet NIC (Network Interface Card).
Serial Port Connection (Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232 converter.
The above Workstations have been installed with a terminal emulator, such as HyperTerminal
included in Windows XP/2003.
Serial cable -- one end is attached to the RS232 serial port, while the other ends to the RJ45 console
port of the switch.
Ethernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45 connectors.
The above PC is installed with Web browser.
NOTE: It is recommended to use Internet Explorer 8.0 or above to access the switch. If the
web interface of the Industrial Managed Switch is not accessible, please turn off the
anti-virus software or firewall and then try it again.
