Positive (+) Pin
Pin 1 / 5
NOTE: The wire gauge for the terminal block should be in the range from 12 to 16 AWG.
Configuring the Switch
Configuring the Switch Using the Console Port
Step1: Connect a computer to the console port of the switch with the console cable.
Step2: Start the terminal simulation software, such as HyperTerminal on the computer.
Step3: Set the parameters of the HyperTerminal: Baud rate to 115200, Data bits to 8, Parity to None,
Stop bits to 1.

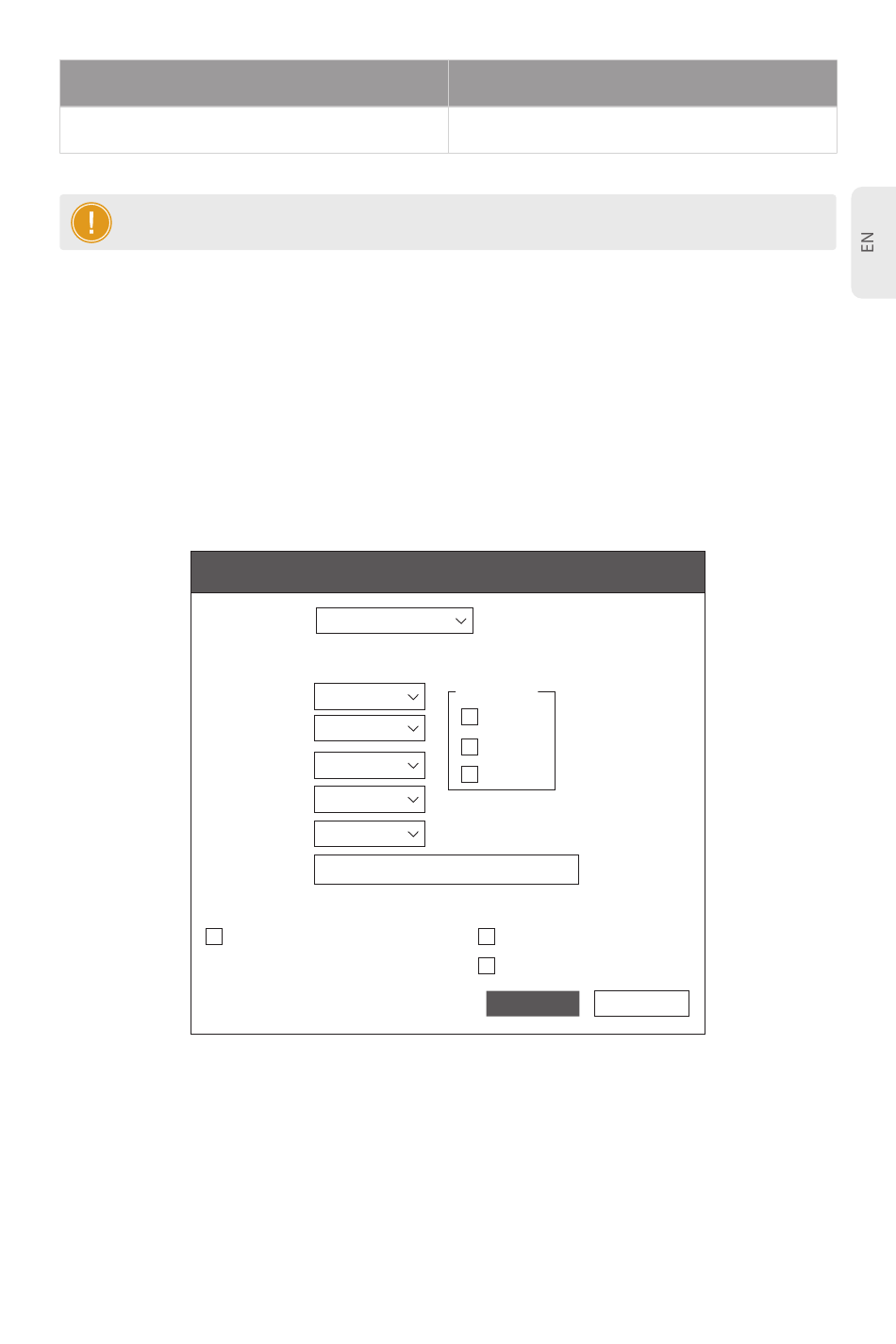

Quick Connect
Protocol:
The port may be manually entered or selected from the list.
Port:
Baud rate:
Data bits:
Parity:
Stop bits:
Name of pipe:
Show quick connect on startup
Step4: After setting the parameters, click Connect to enter.
Serial
Flow Control
COM3
DTR/DSR
115200
RTS/CTS
8
XON/XOFF
None
1
Negative (-) Pin
Pin 2 / 4
Save session
Open in a tab
Connect Cancel
x
