Mounting the Switch

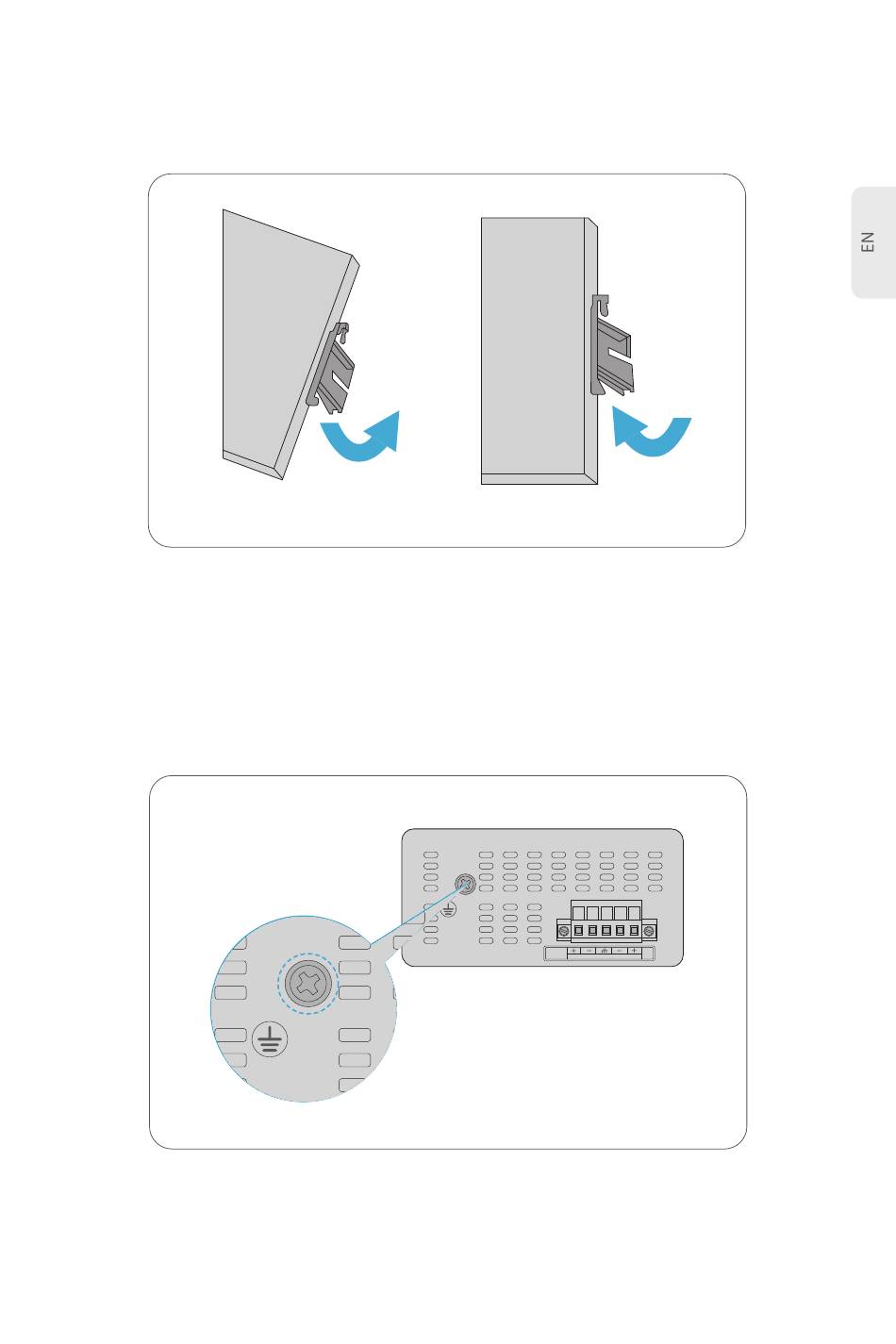

DIN-Rail Mounting

Mounting the unit

Releasing the unit
1. Grip the top of the DIN rail mounting clip onto the edge of the DIN rail.
2. Press the bottom of the clip onto the other side of the DIN rail.
3. Push the bottom of the clip outwards to remove it easily.
Grounding the Switch
48-57V DC
PWR1 PWR2
48-57V DC
PWR1 PWR2
1. Connect one end of the grounding cable to a proper earth ground.
2. Secure the grounding lug to the grounding point on the switch upper panel with the screw and
washers.
