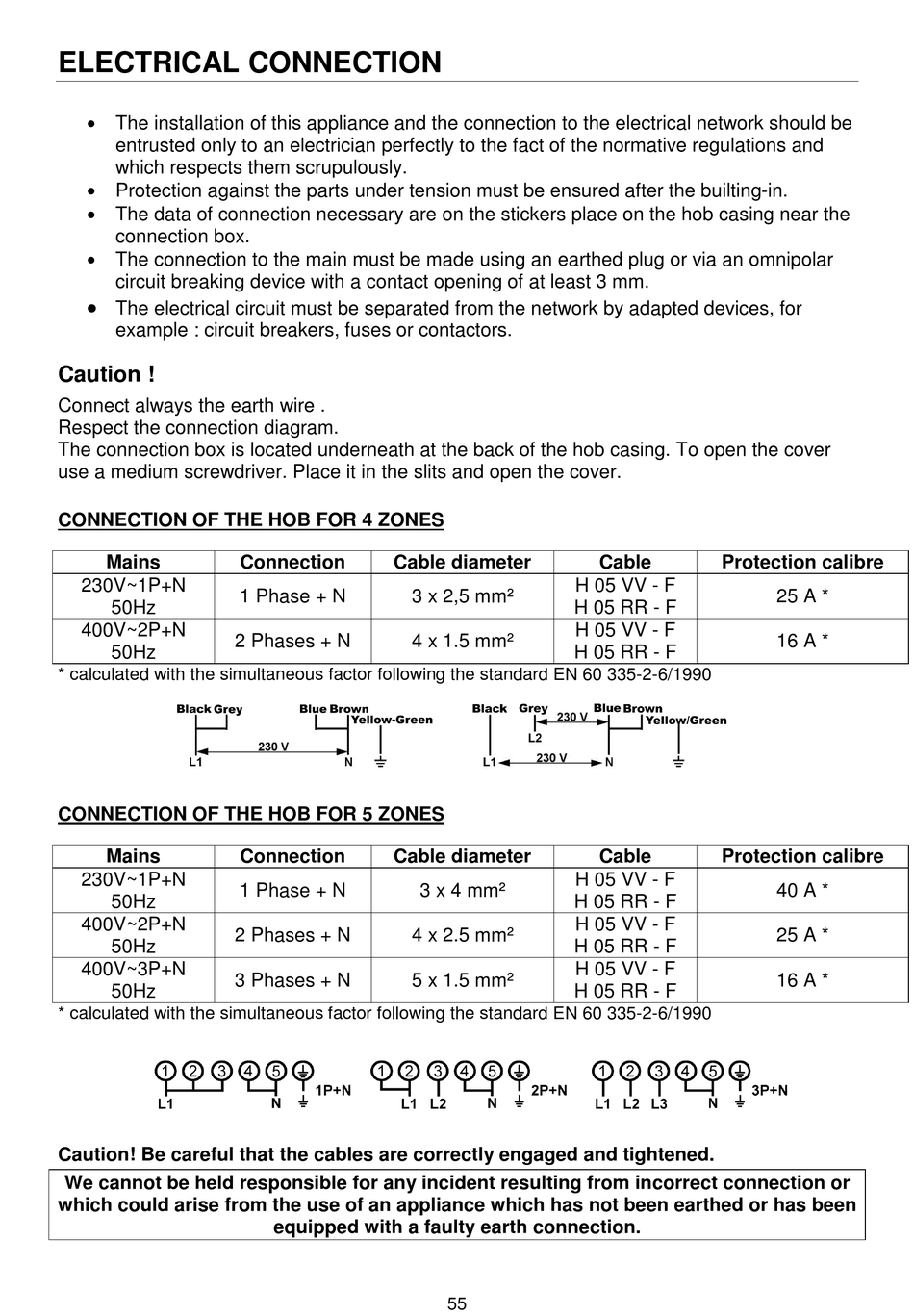

ELECTRICAL CONNECTION

 The installation of this appliance and the connection to the electrical network should be
entrusted only to an electrician perfectly to the fact of the normative regulations and
which respects them scrupulously.
 Protection against the parts under tension must be ensured after the builting-in.
 The data of connection necessary are on the stickers place on the hob casing near the
connection box.
 The connection to the main must be made using an earthed plug or via an omnipolar
circuit breaking device with a contact opening of at least 3 mm.

The electrical circuit must be separated from the network by adapted devices, for
example : circuit breakers, fuses or contactors.
Caution !
Connect always the earth wire .
Respect the connection diagram.
The connection box is located underneath at the back of the hob casing. To open the cover
use a medium screwdriver. Place it in the slits and open the cover.
CONNECTION OF THE HOB FOR 4 ZONES
Mains
230V~1P+N
50Hz
400V~2P+N
50Hz
* calculated with the simultaneous factor following the standard EN 60 335-2-6/1990
CONNECTION OF THE HOB FOR 5 ZONES
Mains
230V~1P+N
50Hz
400V~2P+N
50Hz
400V~3P+N
50Hz
* calculated with the simultaneous factor following the standard EN 60 335-2-6/1990
Caution! Be careful that the cables are correctly engaged and tightened.
We cannot be held responsible for any incident resulting from incorrect connection or
which could arise from the use of an appliance which has not been earthed or has been
Connection Cable diameter
1 Phase + N
2 Phases + N
Connection Cable diameter
1 Phase + N
2 Phases + N
3 Phases + N
equipped with a faulty earth connection.
H 05 VV - F
3 x 2,5 mm²
H 05 RR - F
H 05 VV - F
4 x 1.5 mm²
H 05 RR - F
H 05 VV - F
3 x 4 mm²
H 05 RR - F
H 05 VV - F
4 x 2.5 mm²
H 05 RR - F
H 05 VV - F
5 x 1.5 mm²
H 05 RR - F
55
Cable Protection calibre
Cable Protection calibre
25 A *
16 A *
40 A *
25 A *
16 A *
