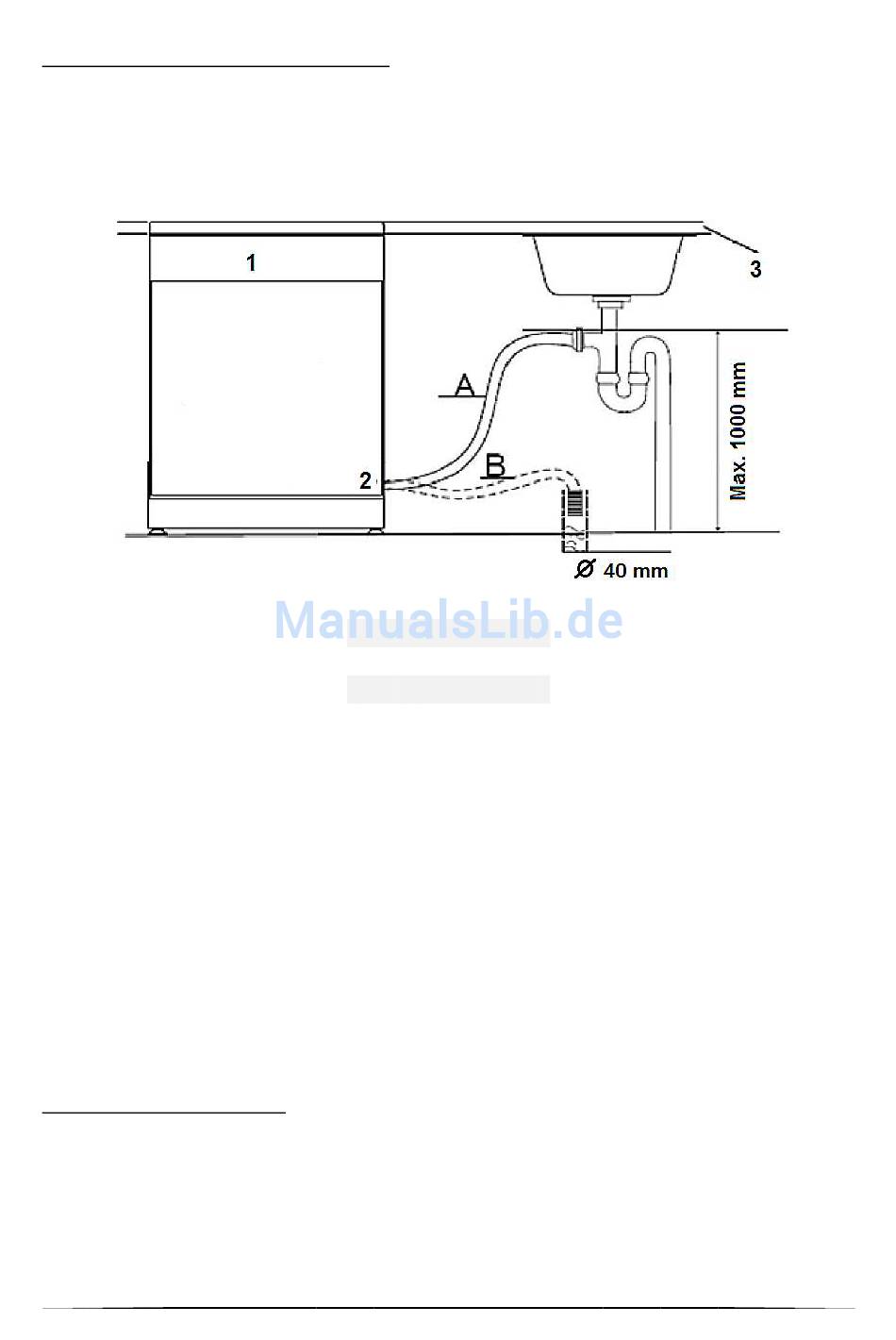

2.5 Connection of the drain hose

Lead the drain hose to a drain with a minimum diameter of 40 mm (B) or connect
it to a suitable drain (A). The maximum height of the drain hose connection is 1000
mm. The drain hose must be installed with a hose clamp.
How to drain remaining water:
When the drain is 1000 mm above the ground, the remaining water in the drain
hose cannot be drained. In such a case, you must drain the remaining water into a
suitable container placed under the drain.
Extension hose
If the length of the hose is not sufficient, apply to your authorized service for an
extension made of the same material as the original hose. Remember that the
length of the hose (including extension) should not exceed 4 metres.

2.6 Electric connection

Requirements
You can find further information on the rating plate. Connect the appliance to a
proper electric outlet. Use the required 10 A fuse, a time-lag fuse or a
recommended circuit breaker.
1 Front
2 Drain hose
3 Worktop
55
