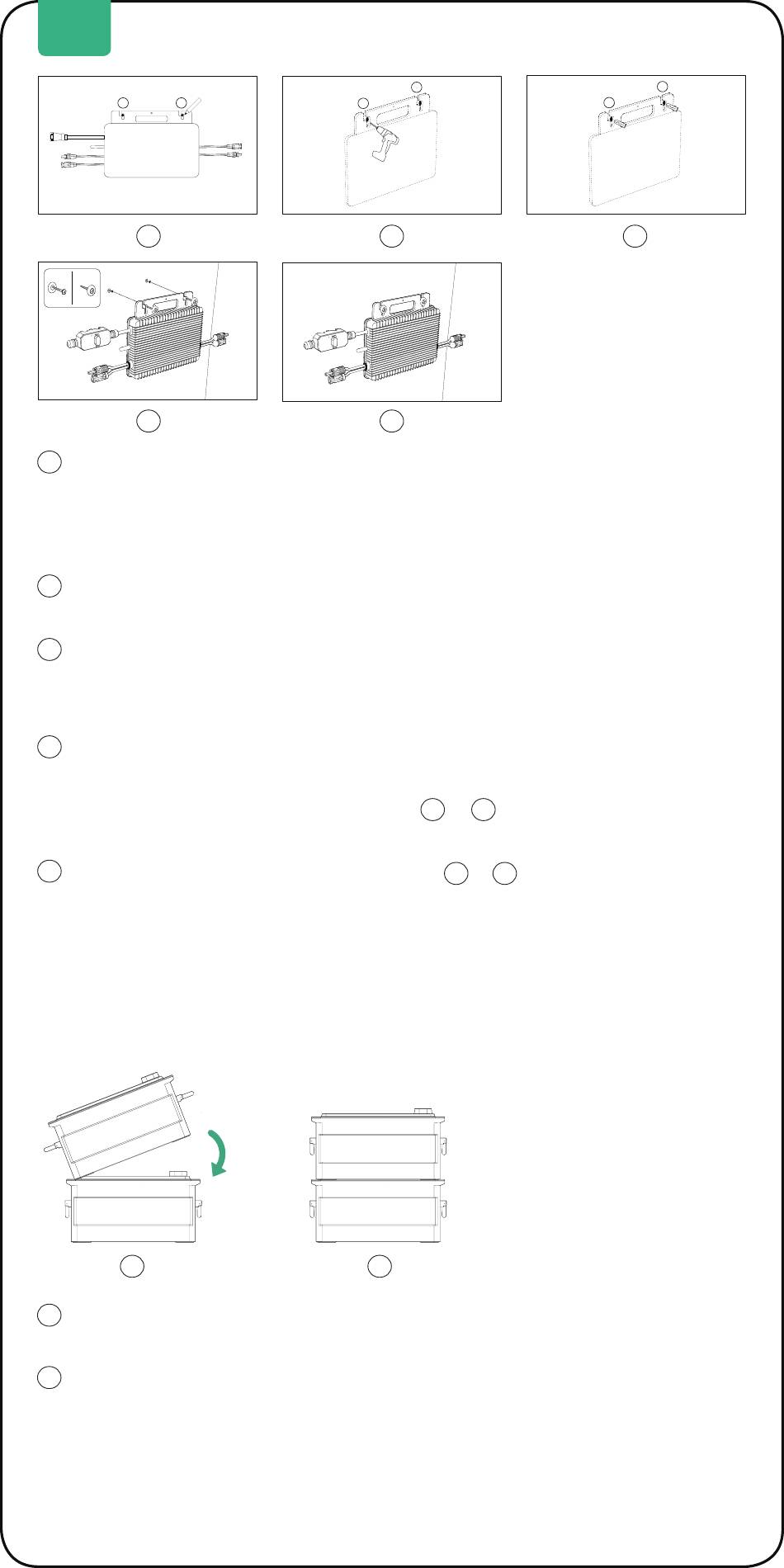

Mark Location, Find a position next to Smart PV Hub, one person fixes
1
the Microinverter on the wall with his hands, and the other person
marks the positions of the two screw holes of the Microinverter with a
marker.
Drilling,drill two diameter 8mm mounting holes at the two marked
2
positions.
Installing yellow plastic expansion tube of screws, Respectively Install
3
the yellow plastic expansion screw tube into the two holes which step
3 drilling.
Installing Microinverter, One person fixes the Microinverter with both
4
hands on the wall and align the hole drilling in step 3, then put the flat
Washers on the screws,at last screw
into the yellow plastic expansion tube .
Tighten the screws，screws the rest of
5
wall completely.Then you also have completed the installation of
Microinverter.

5.3.6 Stack AB1000

Before stacking AB1000, please pay attention to the note on the top of
AB1000
1
Remove the plastic protective covers on the connection port ,then
1
please align the left side first.
Slowly insert the battery connection port.
2
12
2
1
2
5
& screws with flat Washer
1 2
&
1 2
2
2
2
1
1
3
screw into the
